Summary of Contents for Rear view safety RVS-062710

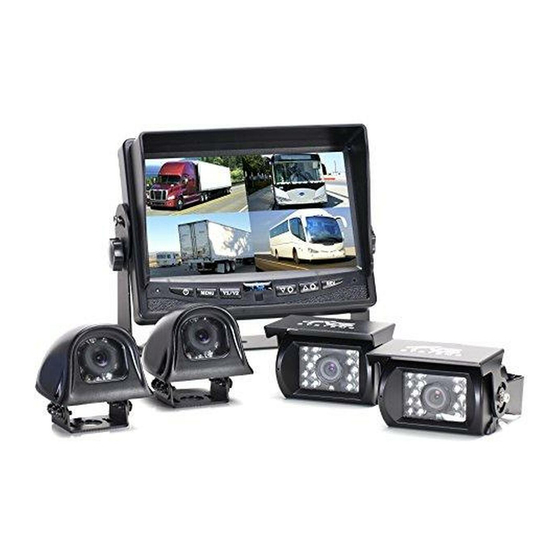

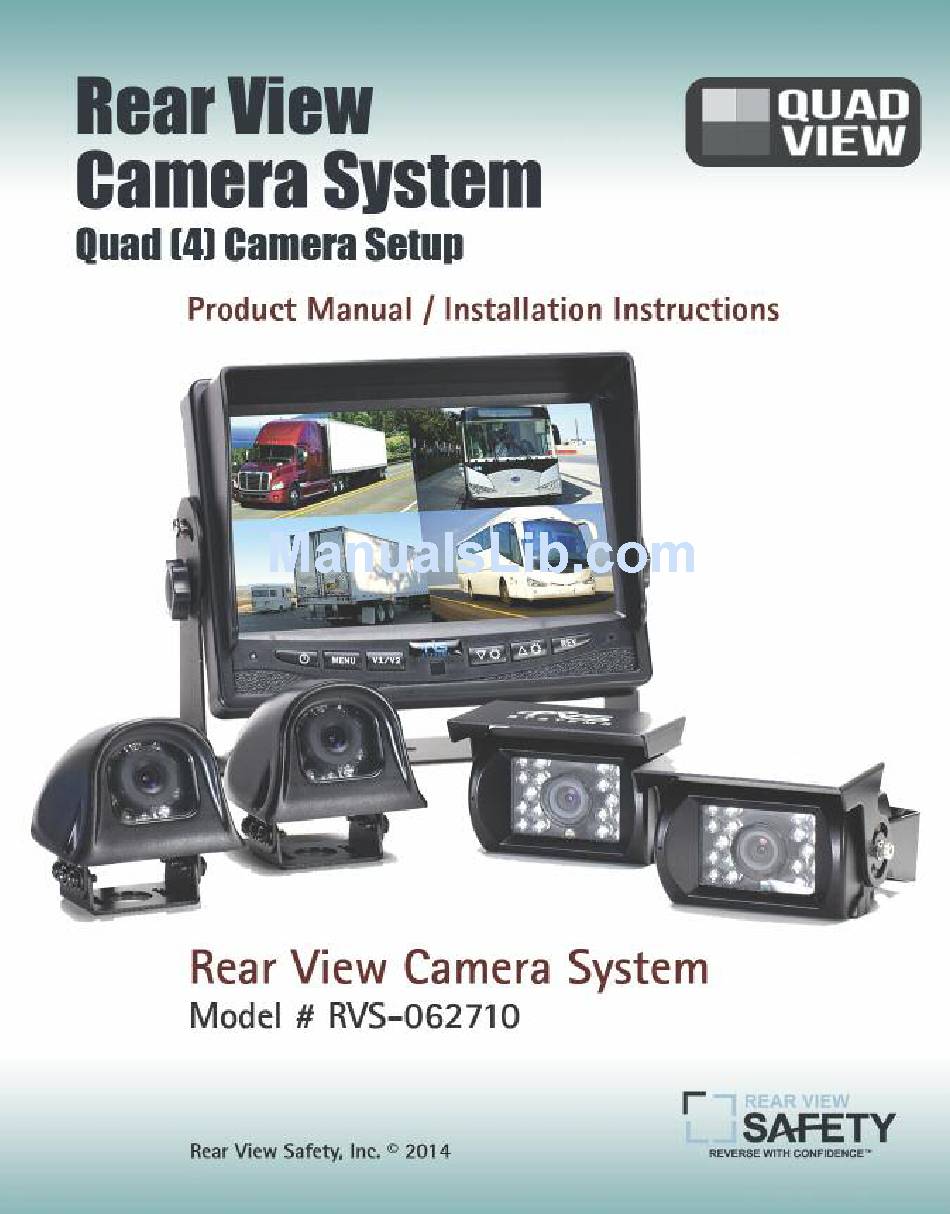

- Page 2 What’s in the Box? • 2 Color CCD Weather Proof Side Cameras w/infra-red • 2 Color CCD Weather Proof Backup Cameras w/infra-red • 1 DIGITAL 7" TFT LCD Quad View Color Monitor with universal mount/stand and wire • 2 66' Extension Cables for Backup Cameras •...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................4 Safety Information ..................5-7 Before Beginning Installation..............8 Installation Guide..................9 Wiring Camera & Monitor..............10-11 Installing the Monitor ................12 Installation Diagram .................13 Monitor Operation..................14 Splitting & Splicing ...................15 Positioning....................Power Harness ....................17 Monitor Dimensions..................18 Monitor Specifications................19 Camera Dimensions...................20 Camera Specifications ................21 Camera... -
Page 4: Introduction
TV viewer or screen located for- ward of the back of the driver’s seat or in any location that is visible, directly or indirectly, to the driver while operating the ve- hicle. Rear View Safety... -
Page 5: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 6 Dropping the unit may cause is detected, disconnect the possible mechanical failure. system immediately. • Where the power cable may touch a metal case, cover the cable with a friction tape. A short circuit or disconnected wire may cause a fire. Rear View Safety...
-
Page 7: Safety Information
Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT. -
Page 8: Before Beginning Installation
Install split grommets where applicable. Step 3: Once all cables and wiring have been properly routed, perform a system function test by temporarily connecting the system. If the system seems to not be operating properly see troubleshooting (page 17). Rear View Safety... -
Page 9: Installation Guide
Installation Guide Camera Installation 1. Attach camera bracket close to rear marker lights, centered on vehicle. 2. Camera: Drill a 20mm (0.8in) diameter hole into vehicle body near the camera and bracket. Insert camera cable into vehicle (be careful not to kink cable) and fit grommet into hole. - Page 10 ON and therefore can etc. drain battery. Therefore it is Grid lines function can be recommended to connect turned on/off by manually power to an ignition switched from menu. (See page 13) accessory power source. Rear View Safety...
-
Page 11: Installing The Monitor
Installing the Monitor Figure 1.1 Figure 1.2 Figure 1.3 Figure 1.4 Connection of U Connection of Bracket Flushmount Bracket Reverse With Confidence ™... -
Page 12: Installation Diagram
Installation Diagram 33ft Extension Cable 33ft Extension Cable 66ft Extension Cable 66ft Extension Cable 1. Red (power+) 2. Yellow (Left) 3. Brown (Right) 4. Blue (Back) 5. Black (Ground) Rear View Safety... -
Page 13: Monitor Operation
Monitor Operation DOWN CAMERA ARROW SELECTION ARROW POWER ROTATE ON / OFF IMAGE (Back/Exit when in Menu Mode) •Toturnonthemonitor,press“POWER”button. •Togettothemenu,press“MENU”andusearrowstochooseyoursettings •Todisplayoptionspress“MENU”toselect. •Toadjustbrightness,press“MENU”.Usearrowstochoosedesiredcameraandpress“MENU”tose- lect. Onceselected,usearrowstosetthebrightness. •Toadjustcontrastpress“MENU”.Usearrowstochoosedesiredcameraandpress“MENU”toselect. Onceselected,usearrowstosetthebrightness •Toadjustsaturationpress“MENU”.Usearrowstochoosedesiredcameraandpress“MENU”tose- lect. Onceselected,usearrowstosetthebrightness •Toadjustdistancegridpress“MENU”toselect.Onceselected,usearrowstochoosedesiredcamera andpress“MENU”.Usearrowstosetthedistance. •Tosetautopowerpress“MENU”toselect.Onceselected,usearrowstochooseofforonandpress “MENU”. •Toresetpress“MENU”toselect.Onceselected,usearrowstochooseyesornoandpress“MENU”. •Toreturntopreviouspress“REV”wheninmenu. •Torotatescreenpress“REV”. •Toadjustthevolumepress“UP”and“DOWN”buttons. Reverse With Confidence ™... -
Page 14: Splitting & Splicing
4. Brown (trigger right) 5. Yellow (trigger left) 6. White (audio) 7. Light blue (video front) 8. Gray (video right) 9. Pink (12V) 10. Purple (Audio out) 11. Black (GND) 12. Green (Video out) 13. Orange (left) Rear View Safety... -
Page 15: Positioning
Positioning Reverse With Confidence ™... -
Page 16: Power Harness
Power Harness Red (power+) Yellow (Left) Brown (Right) FUSE Monitor cable Blue (Back) Black (Ground) DESCRIPTIONS Blue - Back Brown - Right Yellow - Left Red - Power 12V+ Black - Ground 12V- Rear View Safety... - Page 17 Troubleshooting Monitor Displays Blue Screen & Displays No Signal • Do a hard reset, unplug all trigger on power harness is cables and power cables and put to power 12v+. leave them out for 1 minute If the problem still persists, ver- and then re-connect them.
-
Page 18: Monitor Dimensions
Monitor Dimensions 7” 5.25” Rotation Imager Menu/ (Exit in Camera Power Selection Down Menu Selection Arrow On/Off Button Arrow Mode) power video select down/up menu mirror/ normal image Rear View Safety... -
Page 19: Monitor Specifications
Monitor Specifications TFT LCD Digital Monitor Screen Size 7” Dot Resolution x 3 (RGB) x 480 Display Format 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° / D:60° / R:70° Video Input 3 channel Video Source 1Vp-p, 75 Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature... -
Page 20: Camera Dimensions
Camera Dimensions 3” 3.25” Rear View Safety... -
Page 21: Camera Specifications
Camera Specifications Camera 1/4” Sharp® Color CCD Picture Elements 250,000 pixels Gamma Correction r=0.45 to 1.0 Image Sensor 600TVL NTSC 769H x 494 V, PAL 752H x 582V 2.1mm Lens View Angle 130° Sync System Internal Synchronization Infrared distance 50 Feet (18 Infrared IR) 0 Usable Illumination Lux (IR On) Power Source... -
Page 22: Camera Dimensions
Camera Dimensions REAR VIEW SAFETY... -
Page 23: Camera Specifications
Camera Specifications Camera 1/4” Sharp® Color CCD Picture Elements 250,000 pixels Gamma Correction r=0.45 to 1.0 Image Sensor 420TV lines, PAL: 500 NTSC: 510 x 492 Lens 2.1mm View Angle 120° Sync System Internal Synchronization Infrared distance 30 Feet (9 Infrared IR) Usable Illumination 0 Lux (IR On) Power Source... -
Page 24: Warranty
Rear View Safety, Inc. system after partial failure or use with im- proper accessories. -
Page 25: Disclaimer
In no event shall Rear View Safety and/or its affiliates have any liability for any losses (whether direct... - Page 26 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
