Copernicus Tech Tub2 Assembly Manual page 8

1
You will need: (Not to Scale)
1
FTT700
ONLY

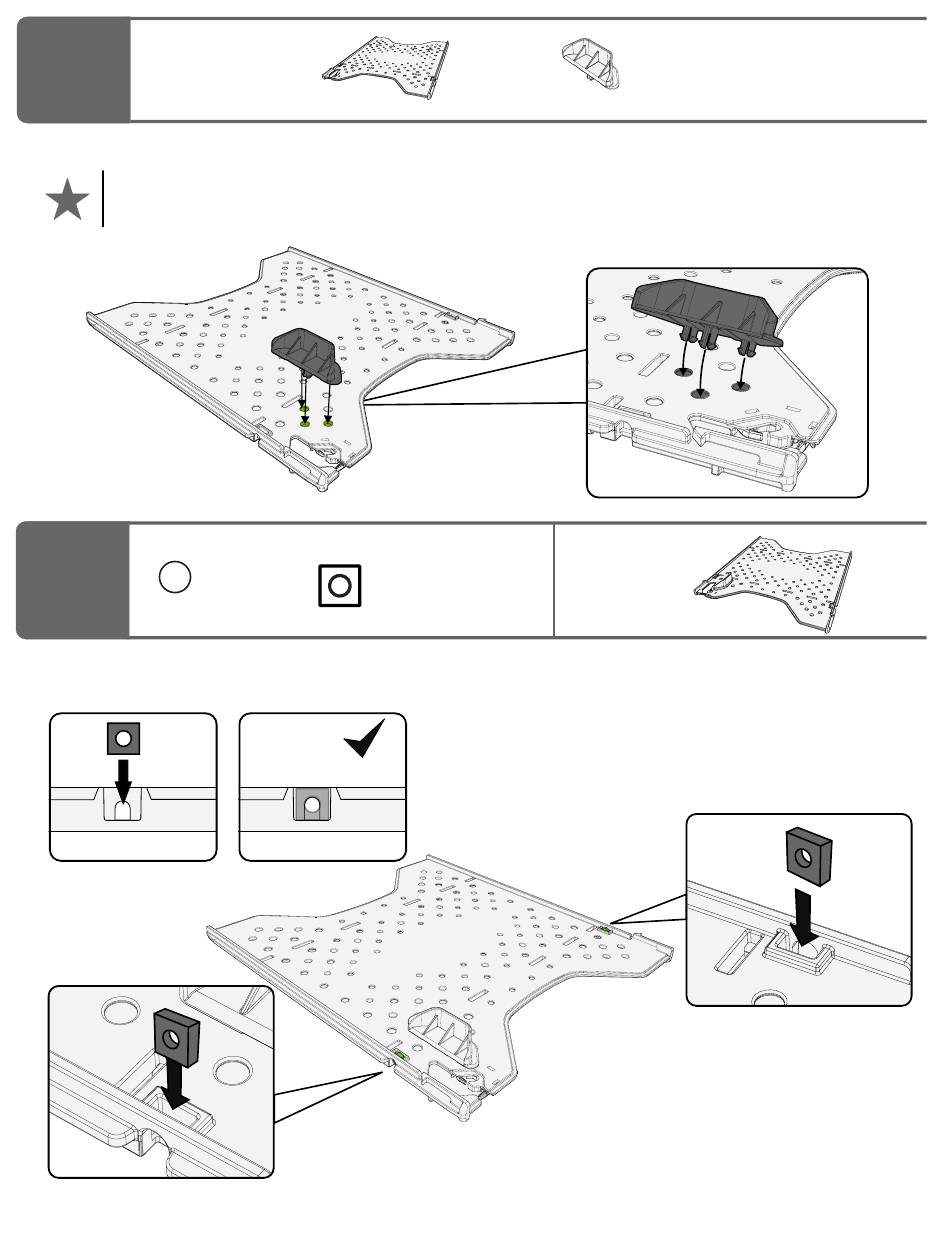

Install Device Positioning Rail into all shelves
This part helps keep smaller devices away from the cable management area.
If your devices are wider than 8.66in (220mm), please skip this step.
Device positioning rail can be installed or uninstalled at any time.
Actual Size:
2
E
Install nuts into two shelves
Ensure nut is inserted fully into slot in shelf
8
M5 Square Nut
x4
FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 7, 2022 - Copernicus Educational Products Inc.
Shelf
Device Positioning Rail
x9
x9
Press snaps into these holes in shelf
You will need: (Not to Scale)
Shelf
x2
