Copernicus Tech Tub2 Assembly Manual

10 device setup
Hide thumbs Also See for Tech Tub2:

Advertisement

Quick Links

FTT1100
FTT1100-USB
WARNING
Please Recycle

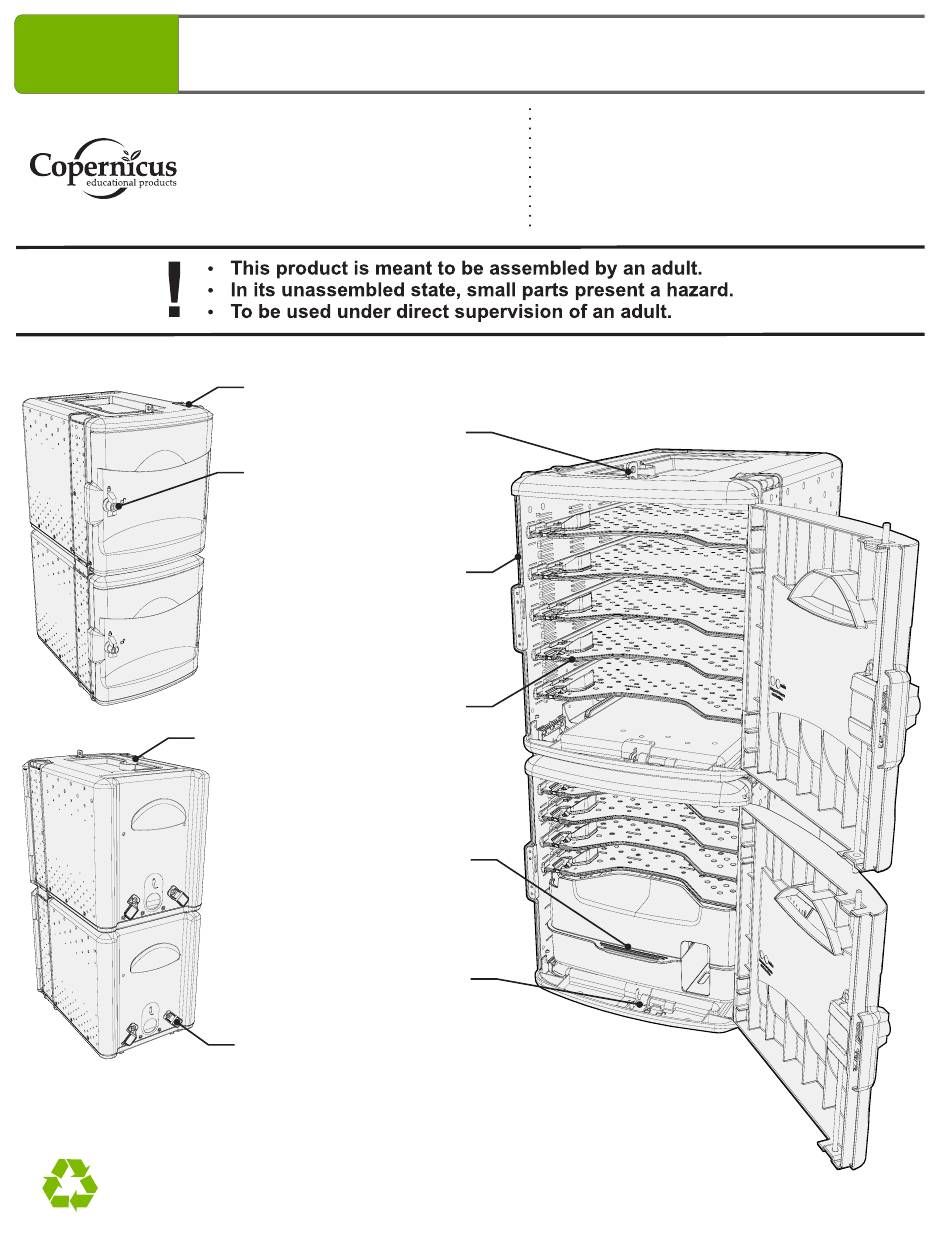

Tech Tub - 10 Device Setup
Assembly Guide
FTT1100_FTT1100-USB_2020_A
Check out our other products online at
www.copernicused.com
Flip Lock x2
Locking Tab x1
3 Point Lock
with Keys
x2
10 Device Tech Tub
Device Positioning Rail
and Cable Clips
Top Handle x1
Power Tray and
Surface Mount Lock x1
Cable Hooks x4
FTT1100_FTT1100-USB - Version A - Released July 1, 2020 - Copernicus Educational Products Inc.
2
®
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference
®
2
Main Body
x1
Shelf with
x9
Shield
x1
