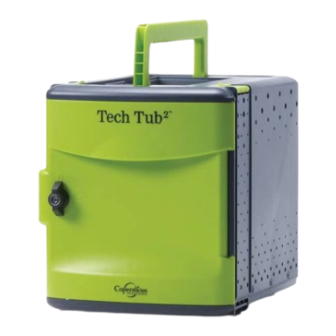

Copernicus Tech Tub 2 Assembly Manual

6 device setup

Hide thumbs Also See for Tech Tub 2:

Assembly manual (29 pages)

Assembly manual (16 pages)

Assembly manual (2 pages)

page of 26

/ 26
Bookmarks

Quick Links

Download this manual

FTT699

FTT700

FTT700-USB

Please Recycle

FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.

Tech Tub 2® - 6 Device Setup

Assembly Guide

Check out our other products online at www.copernicused.com

For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com.

Have your packing slip ready for reference.

Need help?

Do you have a question about the Tech Tub 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Copernicus Tech Tub 2

Page 1 Check out our other products online at www.copernicused.com For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com. Have your packing slip ready for reference. Please Recycle FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 2 Please visit www.copernicused.com/warranty and complete the form within 10 business days from Warranty product assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email info@copernicused.com to start your warranty claim.
Page 3 Electrical Do not install or use the electrical components of this unit during a lightning storm. Shock FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 4 M5 Screw cables In FTT699 (255155) Not to Scale ® 6 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 5 (43321) M5 Screw In FTT700 Not to Scale ® 6 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 6 (43321) M5 Screw In FTT700-C Not to Scale ® 6 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 7 If you have not purchased the Tech Tub Trolley, please proceed to the next page to continue ® setting up your Tech Tub . FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 8 You will need: (Not to Scale) Shelf M5 Square Nut Install nuts into one shelf Ensure nut is inserted fully into slot in shelf FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 9 Install two shelves below middle shelf, leaving two empty slots between each shelf Install remaining three shelves above middle shelf, leaving two empty slots between each shelf FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 10 FTT699 FTT700 Install Power Strip Mounting Bracket onto Power Tray Insert side with two pegs into keyholes Slide back till you hear a CLICK! FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 11 Route power cable around hook and out through back of Power Tray HOOK Fit 4 keyholes on Power Strip over 4 Slide Power Strip back to secure it pegs on Power Strip Mounting Plate FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 12 USE IT TO MEASURE OUT YOUR CABLES Secure cables around adapter using provided hook and loop straps Repeat above steps for all remaining power adapters FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 13 Wall Plug Power Adapter If your power adapter is too (including USB Power Adapters) wide to fit on the power strip please proceed to STEP 9. FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 14 Plug remaining power adapters into power strip Run cables to front of tray, leaving excess cable hanging out Power Brick Adapter Wall Plug Power Adapter (including USB Power Adapters) FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 15 Copernicus Customer Service: 1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 16 Run USB cables to front of tray, leaving Plug USB cables into USB Hub excess cable hanging out. USB hub must be placed on side FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 17 Position Power Tray for Cable Management Feed Power Strip power cable through hole in back of tub Partially slide Tray back into tub (leave a gap as shown below) FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 18 The process is the same for USB cables Push cable through first clip Push cable through second clip Tuck excess cable into front area of power tray FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 19 The process is the same for USB cables Push cable through first clip Push cable to back of opening Tuck excess cable into front area of power tray FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 20 Repeat Step 13A and 13B until all remaining cables are clipped into shelves (as shown) FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 21 Slide Tray all the way into the Tub When pushing the tray in, pull the cable to keep it out of the way of the tray FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 22 To remove, push on the top edge and rotate up out of holes in shelf. If you wish to discard Device Positioning Rails please recycle them. Push devices in completely to ensure cables don't interfere with door FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 23 Plug device power cable into each device Once step 16 is complete plug power strip or usb hub power cable into wall outlet FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 24 Turn on power strip via access hole on front of tray There is no power switch on USB hub. 2® Wrap Power Strip power cable around cable hooks when moving Tech Tub FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 25 Open the front door of upper tub and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
Page 26 Open the front door and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT699 FTT700 FTT700-USB - Version 2023_A - Released June 30, 2023 - Copernicus Educational Products Inc.
