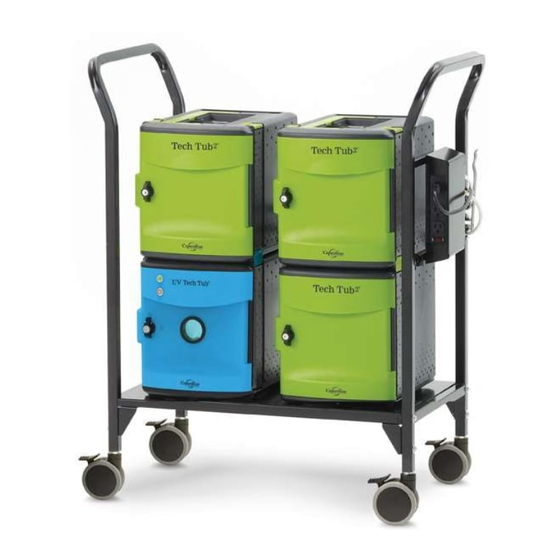

FTT718
FTT724
FTT726
FTT732
18 Device Cart
(FTT718-UV, FTT718-USB-UV,
FTT718-699-UV)
Please Recycle
®
2
Tech Tub Modular Cart System
Assembly Guide
FTT401_718_724_726_732_2023_A
Check out our other products online at www.copernicused.com
For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com.
Have your packing slip ready for reference.
24 Device Cart
(FTT724, FTT724-USB, FTT724-699)
FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
32 Device Cart
(FTT732, FTT732-USB
FTT732-699)
26 Device Cart
(FTT726-UV, FTT726-USB-UV,
FTT726-699-UV)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Copernicus Tech Tub 2 FTT718
Summary of Contents for Copernicus Tech Tub 2 FTT718
- Page 1 Have your packing slip ready for reference. 32 Device Cart (FTT732, FTT732-USB FTT732-699) 24 Device Cart (FTT724, FTT724-USB, FTT724-699) 26 Device Cart (FTT726-UV, FTT726-USB-UV, FTT726-699-UV) 18 Device Cart (FTT718-UV, FTT718-USB-UV, FTT718-699-UV) FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc. Please Recycle...
- Page 2 Please visit www.copernicused.com/warranty and complete the form within 10 business days from product Components Warranty assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim Lifetime We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email UV Tech Tub info@copernicused.com to start your warranty claim.
- Page 3 Unplug when not in use. Read the electrical specifications of any electronic equipment you are using with your Electronic Copernicus products. Failure to read these specifications and follow their instructions could Equipment result in damage to your equipment or personal injury.
- Page 4 FTT700-F FTT732 FTT700-F Total FTT1100 FTT401-0 Total FTT699 FTT401-0 FTT724-699 FTT699-A FTT699 Total FTT699-A FTT732-699 FTT401-0 FTT1102 FTT1112 FTT700-C Total FTT724-USB FTT700-G FTT401-0 Total FTT-700-C FTT732-USB FTT700-G FTT1100-USB Total FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 5 Locking Caster M6 x 10mm Thumb Screw Spring Steel Cable Hook Zip Tie Caster Wrench 8mm/10mm Allen Key Not to Scale Not to Scale Hex Wrench Not to Scale FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 6 Power Adapter USB “B” Cable (25528) Timer (255146) (25526) Power Adapter (255146) 15’ Power Power Cord Timer Cable North American Power Cord power cord shown. North American power cord shown. FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 7 Press down to lock Note: Return cart to upright position once casters are installed. Check casters every 6 months and tighten as needed. FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 8 Position cable hook stretcher so it aligns with holes on handles Note: Ensure cable hooks point toward back of cart. Fasten cable hook stretcher to handles M6 Star Washer Important electrical safety component. FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 9 Fasten power timer to mounting bracket Important electrical M6 Star Washer safety component. Note: Power Button on Top Ensure the power timer is mounted in the correct orientation. Power Cable Socket on Bottom FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 10 Tighten all casters using supplied caster wrench. Keep wrench with unit. Casters must be tightened every 6 months for proper maintenance. FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 11 Note: Ensure the 10 Device Tub is always mounted directly to the cart, not stacked on top of a 6 Device Tub. Repeat steps 1 and 2 for other side of cart Continue on next page... FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 12 Open front door of Tech Tub and slide metal locking pin through metal tab NOTE: The locking process is the same for both left and right position on the cart. FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 13 Connect upper and lower tub using side flip locks Lower Tub Device Open the front door of upper tub and slide locking pin through metal tab Close and lock front door of tub to secure devices FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 14 10 device Tech Tub UV Tech Tub 24 Device Cart: 18 Device Cart: (FTT724, FTT724-USB, FTT724-699) (FTT718-UV, FTT718-USB-UV FTT718-699-UV) 26 Device Cart: 32 Device Cart: (FTT726-UV, FTT726-USB-UV (FTT732, FTT732-USB FTT726-699-UV) FTT732-699) FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 15 Trim the ends of the zip ties once they are fully tightened around the power cable. Wrap power timer cable on cable hook stretcher before moving cart Note: Use the attached clip to secure the power cable to itself before moving the cart. FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
- Page 16 To keep the power cables organized keep the excess length of cable wrapped on the back of the Tech Tub . Ensure that there is enough slack to prevent unnecessary strain on the power cables or power timer. UV tub needs to be plugged into front outlets FTT401_718_724_726_732_2023_A - Released January 17, 2023 - Copernicus Educational Products Inc.
