Copernicus iRover2 IFP500 Assembly Manual

For interactive flat panels
Hide thumbs Also See for iRover2 IFP500:

Advertisement

Quick Links

Download this manual

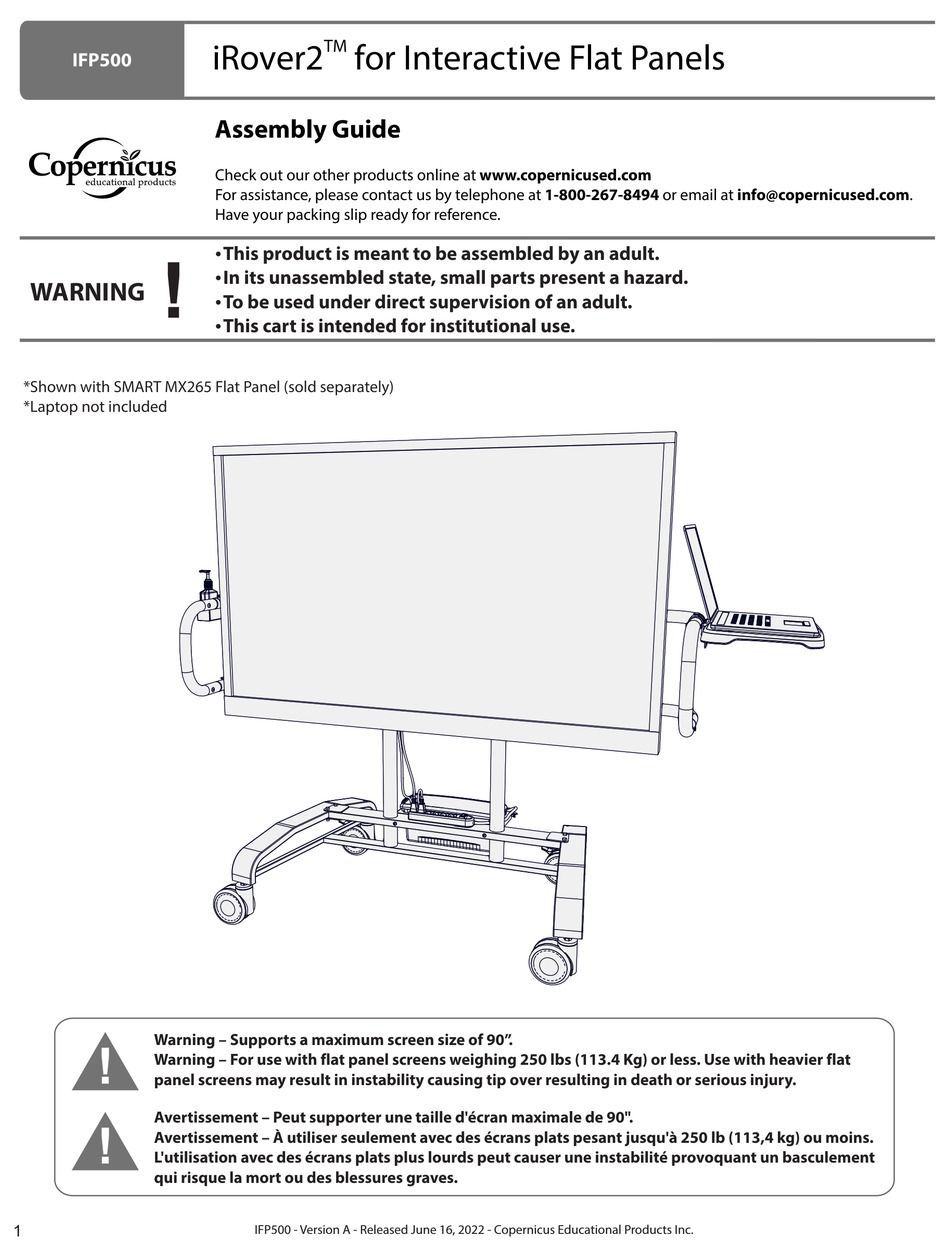

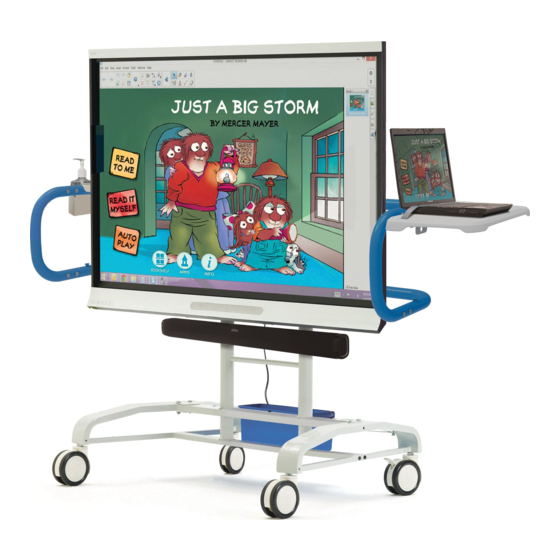

IFP500
WARNING
*Shown with SMART MX265 Flat Panel (sold separately)
*Laptop not included
Warning – Supports a maximum screen size of 90".
Warning – For use with flat panel screens weighing 250 lbs (113.4 Kg) or less. Use with heavier flat
panel screens may result in instability causing tip over resulting in death or serious injury.
Avertissement – Peut supporter une taille d'écran maximale de 90".
Avertissement – À utiliser seulement avec des écrans plats pesant jusqu'à 250 lb (113,4 kg) ou moins.
L'utilisation avec des écrans plats plus lourds peut causer une instabilité provoquant un basculement
qui risque la mort ou des blessures graves.
1
TM
iRover2 for Interactive Flat Panels
Assembly Guide
Check out our other products online at www.copernicused.com
For assistance, please contact us by telephone at 1-800-267-8494 or email at info@copernicused.com.
Have your packing slip ready for reference.
This product is meant to be assembled by an adult.
Ÿ
In its unassembled state, small parts present a hazard.
Ÿ
To be used under direct supervision of an adult.
Ÿ
This cart is intended for institutional use.
Ÿ
IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the iRover2 IFP500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Copernicus iRover2 IFP500

Summary of Contents for Copernicus iRover2 IFP500

  • Page 1 Avertissement – À utiliser seulement avec des écrans plats pesant jusqu'à 250 lb (113,4 kg) ou moins. L'utilisation avec des écrans plats plus lourds peut causer une instabilité provoquant un basculement qui risque la mort ou des blessures graves. IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 2 Registering your warranty ensures we have all the information we need to make any future warranty claims quick and easy. Please visit www.copernicused.com/warranty and complete the form within 10 business days from product assembly. By registering your product, you will be entered into a draw to win Copernicus product. Make a Warranty Claim We offer a Lifetime Warranty on almost everything we make.
  • Page 3 Electrical Do not install or use the electrical components of this unit during a lightning storm. Shock IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 4 Front Hand Sanitizer (320832) (340861) (33175) Bottle Holder (32310) 20 lbs Weight Limit M5 x 16mm Screw M5 Square Nut *Laptop Tray and hardware packaged together IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 5 M6 x 20mm VESA Screw M8 x 15mm VESA Screw M8 x 25mm VESA Screw (432151) (43222) (432764) (432765) M8 x 40mm 3/4” Spacer (432762) (4303141) IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.

  • Page 6: Install Casters

    Tip: tilt your unit on its back for easier caster installation Install locking casters on back of unit and tighten using supplied Caster Wrench. (Back) (Front) IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 7 Moving Frame faces front of unit Actual Size: You will need: (Not to Scale) Adjustable wrench (2x) Electric Lift Install Electric Lift Note orientation of the Electric Lift Tighten bolts IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 8 You will need: (Not to Scale) Power Strip Small Tub 5 lbs Weight Limit Attach Power Strip and Install Tub Apply Double Sided Foam Tape here IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 9 Flat Panel (4x) (4x) For TVs without a flat back (Ex. Promethean) use the provided 3/4” spacers and longer screws. Install spacers between mount and TV. IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 10 Do not secure in these holes, they are used for attaching an optional soundbar mount Install screws in holes with threads, only 2 of 4 holes will have threads IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 11 2-Person Task Secure Flat Panel To Cart Insert all 4 adapters into keyholes. Insert all 4 Safety Screws Lock all casters before attaching flat panel to cart IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 12 Front Install Protective Handles Position & Secure Handles Extensions Position handle Choose handles position close to your and secure (4x) flat panel Install Protective Handles Fronts IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 13 Connect Electric Lift Power Cable & Remote Connect and secure your electric lift cable Use remote hook to hang remote on cart Place power adapter in tub for storage IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.

  • Page 14: Securing Your Device

    Actual Size: You will need: (Not to Scale) Laptop Tray 20 lbs Weight Limit Securing Your Device Lift up strap Slide in your device IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 15 Attaching Laptop Tray To Cart In-use Position On Left or Right Handles In-use Position On On Top or Bottom Back of Cart Storage Position On Back of Cart IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.

  • Page 16: Cable Routing

    Raise flat panel to max height before routing cables. This ensures they have enough length when adjusting cart height. Laptop tray can install on both sides IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.

  • Page 17: Final Assembly Checks

    Check entire assembly for loose parts; tighten all casters, bolts, screws and nuts Tighten all casters using supplied Caster Wrench. Keep wrench with unit. Casters must be tightened every 6 months for proper maintenance. IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
  • Page 18 Move cart slowly. APPLY MOVING FORCE NEVER APPLY FORCE AT ONLY ADULTS SHOULD PUSH, DON’T PULL ON NARROW TOP - ALWAYS PUSH MOVE THIS UNIT DIMENSION NEAR MIDDLE IFP500 - Version A - Released June 16, 2022 - Copernicus Educational Products Inc.
