Copernicus FTT1112 Assembly Manual

Copernicus FTT1112 Assembly Manual

10 device setup
Hide thumbs Also See for FTT1112:

Advertisement

Quick Links

FTT1100
FTT1100-USB
FTT1112
WARNING
Please Recycle
2
Tech Tub - 10 Device Setup
Assembly Guide
FTT1100, FTT1100-USB,
FTT1121_2021_A
Check out our other products online at
www.copernicused.com
FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
®
For assistance, please contact us:
1-800-267-8494
Email info@copernicused.com
Have your packing slip ready for reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the FTT1112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Copernicus FTT1112

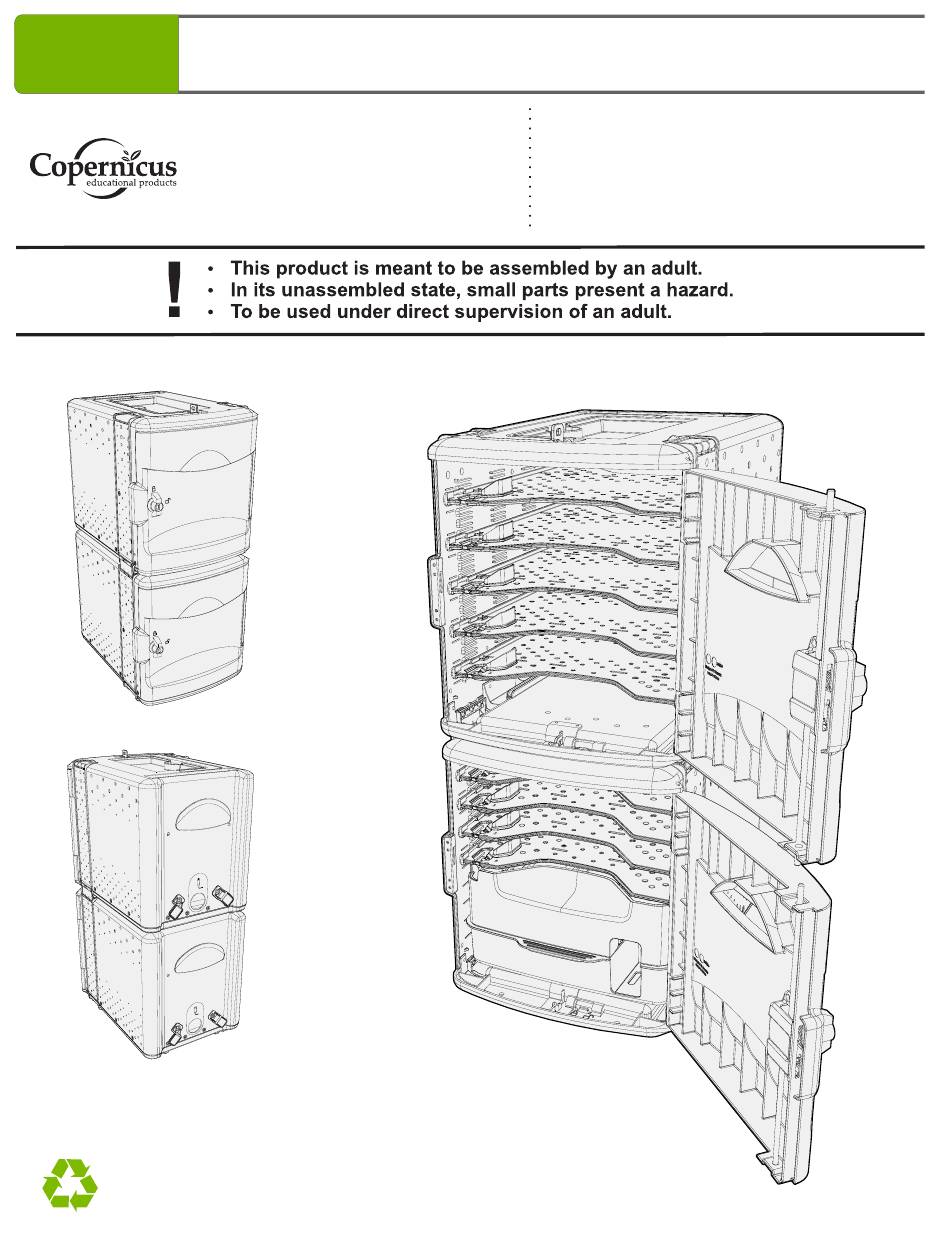

  • Page 1 FTT1100, FTT1100-USB, 1-800-267-8494 FTT1121_2021_A Check out our other products online at Email info@copernicused.com www.copernicused.com Have your packing slip ready for reference WARNING Please Recycle FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 2 We offer a Lifetime Warranty on almost everything we make. Please call 1-800-267-8494 or email info@copernicused.com to start your warranty claim. Proof of purchase will be required upon warranty claim (i.e. copy of invoice). FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 3 Do not install or use the electrical components of this unit during a lightning storm. Electrical Shock Do not climb on, hang from or suspend objects from any components of your product unless otherwise specified. Climb Hazard FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 4 1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com Email our Tech Support Service Check out some of our other great products! www.copernicused.com FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 5 M5 x 15mm Screw In FTT1100 Not to Scale ® 10 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 6 M5 x 15mm Screw Not to Scale In FTT1100-USB ® 10 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 7 M5 x 15mm Screw cables In FTT1112 Not to Scale ® 10 Device Tech Tub Main Body Front Pin Bracket (23275) Keys 5mm Driver Allen Key FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 8 If you have not purchased the Tech Tub Trolley, please proceed to the next page to continue ® setting up your Tech Tub . FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 9 You will need: (Not to Scale) Shelf M5 Square Nut Install nuts into two shelves Ensure nut is inserted fully into slot in shelf FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 10 Install shelves in middle position in both tubs (aligned with holes for screws) Insert screws (both sides) but do not fully tighten until all shelves are installed FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 11 Install three shelves in bottom tub, leaving two empty slots between each shelf Now fully tighten all 4 screws holding middle shelves in place FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 12 FTT1100 ONLY Install Power Strip Mounting Bracket onto Power Tray Insert side with four pegs into keyholes Slide back until you hear a CLICK! FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 13 Route power cable around hook and out through back of Power Tray HOOK Fit 2 keyholes on Power Strip over 2 Slide Power Strip back to secure it pegs on Power Strip Mounting Plate FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 14 USE IT TO MEASURE OUT YOUR CABLES Secure cables around adapter using provided hook and loop straps Repeat above steps for all remaining power adapters FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 15 Wall Plug Power Adapter Start at back of Power Tray (including USB Power Adapters) on bottom row of outlets FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 16 Plug 5 power adapters into top row of outlets on power strip Run cables to front of tray, leaving excess cable hanging out Power Brick Adapters Wall Plug Power Adapter (including USB Power Adapters) FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 17 Copernicus Customer Service: 1-800-267-8494. Monday - Friday 8:30am - 4:30 pm EST. Email our Tech Support Service at info@copernicused.com FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 18 Place USB Hub and Power Adapter into Power Tray Route power cable around hook and out through back of Power Tray HOOK Connect USB Hub to power adapter FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 19 FTT1100-USB ONLY Plug in USB cables Plug USB cables into USB Hub Run USB cables to front of tray, leaving excess cable hanging out FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 20 Position Power Tray for Cable Management Feed Power Strip power cable through hole in back of tub Partially slide Power Tray into tub (leave a gap as shown below) FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 21 Feed first cable through opening between tubs and pull it up to top shelf The process is the same for USB cables FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 22 Feed first cable into cable management clip on top shelf The process is the same for USB cables Push cable through first green clip Push cable through second green clip FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 23 The process is the same for USB cables Push cable through first green clip Push cable to back of opening Tuck excess cable into front area of power tray FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 24 Repeat Step 13A-13C for each shelf until all remaining cables are clipped into shelves (as shown) FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 25 Slide Power Tray into tub Pull power cable while inserting Power Tray FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 26 If you wish to discard Device Positioning Rails please recycle them. Plug device power cable into each device FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 27 Plug USB Hub Power Cable into wall outlet Slide Power Tray out and slide USB Hub power switch into on position Slide Power Tray back into tub FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 28 2® Wrap Power Strip or USB Hub power cable around cable hooks when moving Tech Tub FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 29 Open the front door of upper tub and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
  • Page 30 Open the front door and slide locking pin through metal tab ® Close and lock front door of Tech Tub to secure devices FTT1100, FTT1100-USB, FTT1112 - Version A - Released July 16, 2021 - Copernicus Educational Products Inc.
