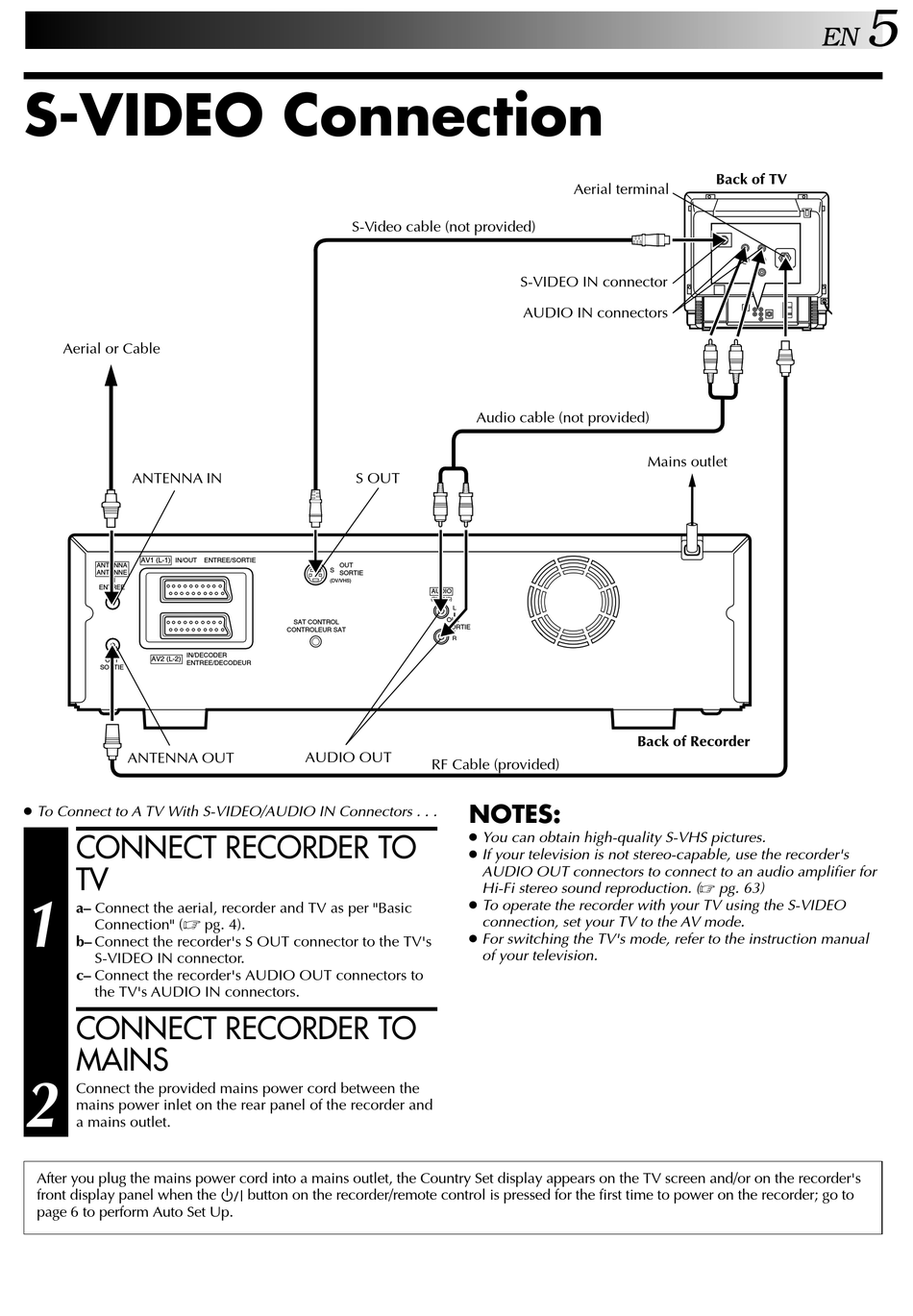

S-VIDEO Connection

Aerial or Cable
ANTENNA IN
AV1 (L-1) IN/OUT
ANTENNA
ANTENNE
IN
ENTREE
IN/DECODER
AV2 (L-2)
OUT
ENTREE/DECODEUR
SORTIE
ANTENNA OUT
To Connect to A TV With S-VIDEO/AUDIO IN Connectors . . .
CONNECT RECORDER TO
TV
1
a– Connect the aerial, recorder and TV as per "Basic
Connection" (
b– Connect the recorder's S OUT connector to the TV's
S-VIDEO IN connector.
c– Connect the recorder's AUDIO OUT connectors to
the TV's AUDIO IN connectors.
CONNECT RECORDER TO
MAINS
2
Connect the provided mains power cord between the
mains power inlet on the rear panel of the recorder and
a mains outlet.
After you plug the mains power cord into a mains outlet, the Country Set display appears on the TV screen and/or on the recorder's
front display panel when the
page 6 to perform Auto Set Up.
S-Video cable (not provided)
S OUT
ENTREE/SORTIE
OUT
S
SORTIE
(DV/VHS)
SAT CONTROL
CONTROLEUR SAT
AUDIO OUT
pg. 4).
button on the recorder/remote control is pressed for the first time to power on the recorder; go to
Aerial terminal
S-VIDEO IN connector
AUDIO IN connectors
Audio cable (not provided)
AUDIO
(DV/VHS)
L
OUT
SORTIE
R
RF Cable (provided)
NOTES:
You can obtain high-quality S-VHS pictures.
If your television is not stereo-capable, use the recorder's
AUDIO OUT connectors to connect to an audio amplifier for
Hi-Fi stereo sound reproduction. (
To operate the recorder with your TV using the S-VIDEO
connection, set your TV to the AV mode.
For switching the TV's mode, refer to the instruction manual
of your television.
Back of TV
Mains outlet
Back of Recorder
pg. 63)
5
EN
