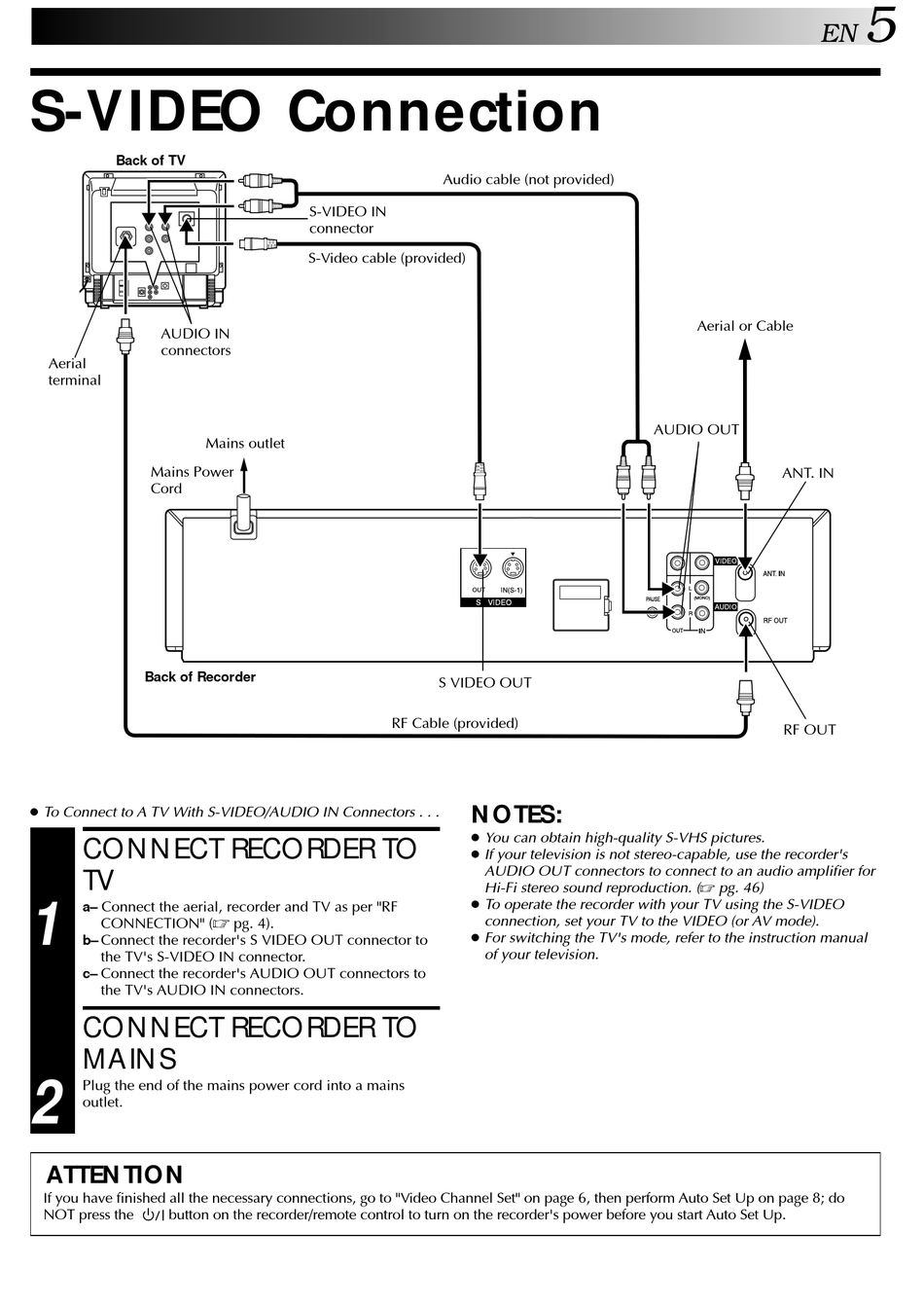

S-VIDEO Connection

Back of TV
AUDIO IN
connectors
Aerial
terminal
Mains Power
Cord
Back of Recorder
● To Connect to A TV With S-VIDEO/AUDIO IN Connectors . . .
CO N N ECT RECO RDER TO
TV
1
Connect the aerial, recorder and TV as per "RF
a–
CONNECTION" (
Connect the recorder's S VIDEO OUT connector to
b–
the TV's S-VIDEO IN connector.
Connect the recorder's AUDIO OUT connectors to
c–
the TV's AUDIO IN connectors.
CO N N ECT RECO RDER TO
MAIN S
2
Plug the end of the mains power cord into a mains
outlet.
ATTEN TIO N
If you have finished all the necessary connections, go to "Video Channel Set" on page 6, then perform Auto Set Up on page 8; do
NOT press the button on the recorder/remote control to turn on the recorder's power before you start Auto Set Up.
S-VIDEO IN
connector
S-Video cable (provided)
Mains outlet
pg. 4).
Audio cable (not provided)
S VIDEO OUT
RF Cable (provided)
N O TES:
● You can obtain high-quality S-VHS pictures.
● If your television is not stereo-capable, use the recorder's
AUDIO OUT connectors to connect to an audio amplifier for
Hi-Fi stereo sound reproduction. (
● To operate the recorder with your TV using the S-VIDEO
connection, set your TV to the VIDEO (or AV mode).
● For switching the TV's mode, refer to the instruction manual
of your television.
EN
Aerial or Cable
AUDIO OUT
ANT. IN
(MONO)
RF OUT
pg. 46)
5
