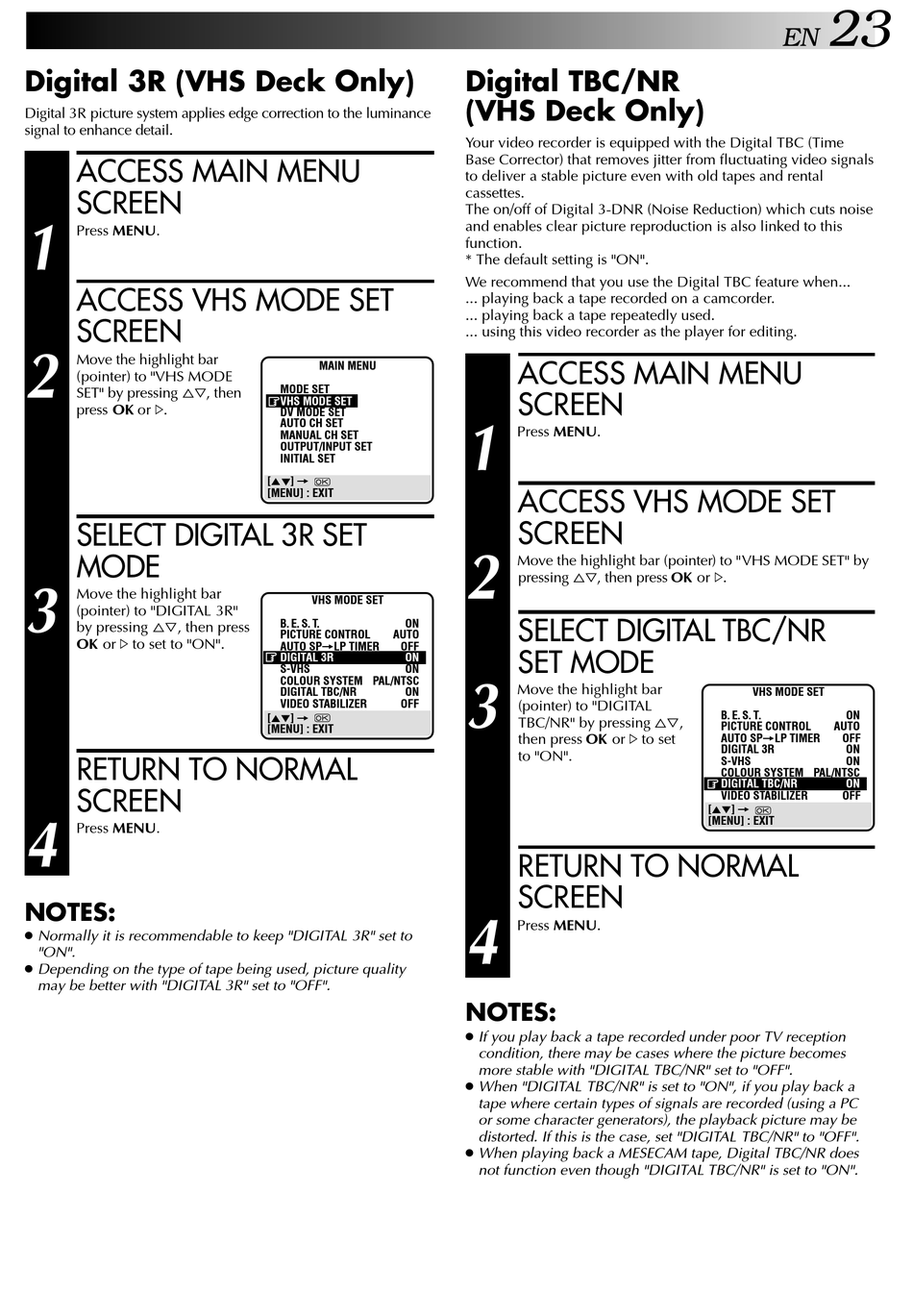

JVC HR-DVS2EU Instructions Manual page 23

Digital 3R (VHS Deck Only)
Digital 3R picture system applies edge correction to the luminance
signal to enhance detail.
ACCESS MAIN MENU
SCREEN
1
Press MENU.
ACCESS VHS MODE SET
SCREEN
2
Move the highlight bar
(pointer) to "VHS MODE
SET" by pressing %fi, then
#
press OK or .
SELECT DIGITAL 3R SET
MODE
3
Move the highlight bar
(pointer) to "DIGITAL 3R"
by pressing %fi, then press
#
OK or to set to "ON".
RETURN TO NORMAL
SCREEN
4
Press MENU.
NOTES:
Normally it is recommendable to keep "DIGITAL 3R" set to
"ON".
Depending on the type of tape being used, picture quality
may be better with "DIGITAL 3R" set to "OFF".
MAIN MENU
MODE SET
VHS MODE SET
DV MODE SET
AUTO CH SET
MANUAL CH SET
OUTPUT/INPUT SET
INITIAL SET
[5 ∞ ] =
[MENU] : EXIT
VHS MODE SET
B. E. S. T. ON
PICTURE CONTROL AUTO
AUTO SP=LP TIMER OFF
DIGITAL 3R ON
S-VHS ON
COLOUR SYSTEM PAL/NTSC
DIGITAL TBC/NR ON
VIDEO STABILIZER OFF
[5∞] =
[MENU] : EXIT
Digital TBC/NR
(VHS Deck Only)
Your video recorder is equipped with the Digital TBC (Time
Base Corrector) that removes jitter from fluctuating video signals
to deliver a stable picture even with old tapes and rental
cassettes.
The on/off of Digital 3-DNR (Noise Reduction) which cuts noise
and enables clear picture reproduction is also linked to this
function.
* The default setting is "ON".
We recommend that you use the Digital TBC feature when...
... playing back a tape recorded on a camcorder.
... playing back a tape repeatedly used.
... using this video recorder as the player for editing.
ACCESS MAIN MENU
SCREEN
1
Press MENU.
ACCESS VHS MODE SET
SCREEN
2
Move the highlight bar (pointer) to "VHS MODE SET" by
pressing %fi, then press OK or
SELECT DIGITAL TBC/NR
SET MODE
3
Move the highlight bar
(pointer) to "DIGITAL
TBC/NR" by pressing %fi,
#
then press OK or
to "ON".
RETURN TO NORMAL
SCREEN
4
Press MENU.
NOTES:
If you play back a tape recorded under poor TV reception
condition, there may be cases where the picture becomes
more stable with "DIGITAL TBC/NR" set to "OFF".
When "DIGITAL TBC/NR" is set to "ON", if you play back a
tape where certain types of signals are recorded (using a PC
or some character generators), the playback picture may be
distorted. If this is the case, set "DIGITAL TBC/NR" to "OFF".
When playing back a MESECAM tape, Digital TBC/NR does
not function even though "DIGITAL TBC/NR" is set to "ON".
EN
#
.
VHS MODE SET
B. E. S. T.
PICTURE CONTROL
to set AUTO SP=LP TIMER
DIGITAL 3R
S-VHS
COLOUR SYSTEM PAL/NTSC
DIGITAL TBC/NR
VIDEO STABILIZER
[5∞] =
[MENU] : EXIT
23
ON
AUTO
OFF
ON
ON
ON
OFF
