CHRYSLER
2011 – 2014
200
2008 – 2010
300/300C
2008 - 2010
Aspen
2007 – 2011
Sebring
2008 – 2017
Town & Country
DODGE
2007 – 2015
Avenger
2010 – 2012
Caliber
2008 – 2017
Caravan
2009 – 2014
Challenger
2008 – 2010
Charger
2008 – 2012
Dakota
2008 – 2013
Durango
2009 – 2010
Journey
2007 – 2012
Nitro
2009 – 2012
Ram
- Interface includes Audio / Video Input to connect an extra A/V source.
- Universal Lip mount reverse camera included.
- Activates MYGIG Screen for enabling Video features.
- Plug and Play Connections for ease of use.
- MyGig Navigation Radio
CH-75 MODULE
JEEP
2008 – 2010
Commander
2009 – 2015
Compass
2008 – 2013
Grand Cherokee
2008 – 2015
Liberty
2009 – 2017
Patriot
2007 – 2017
Wrangler
VOLKSWAGEN
2009 – 2013
Routan
CH-75 HARNESS
1 / 3
CUL-03 CAMERA
Rev.032217
Advertisement
Table of Contents
Related Manuals for Crux RVCCH-75
Summary of Contents for Crux RVCCH-75

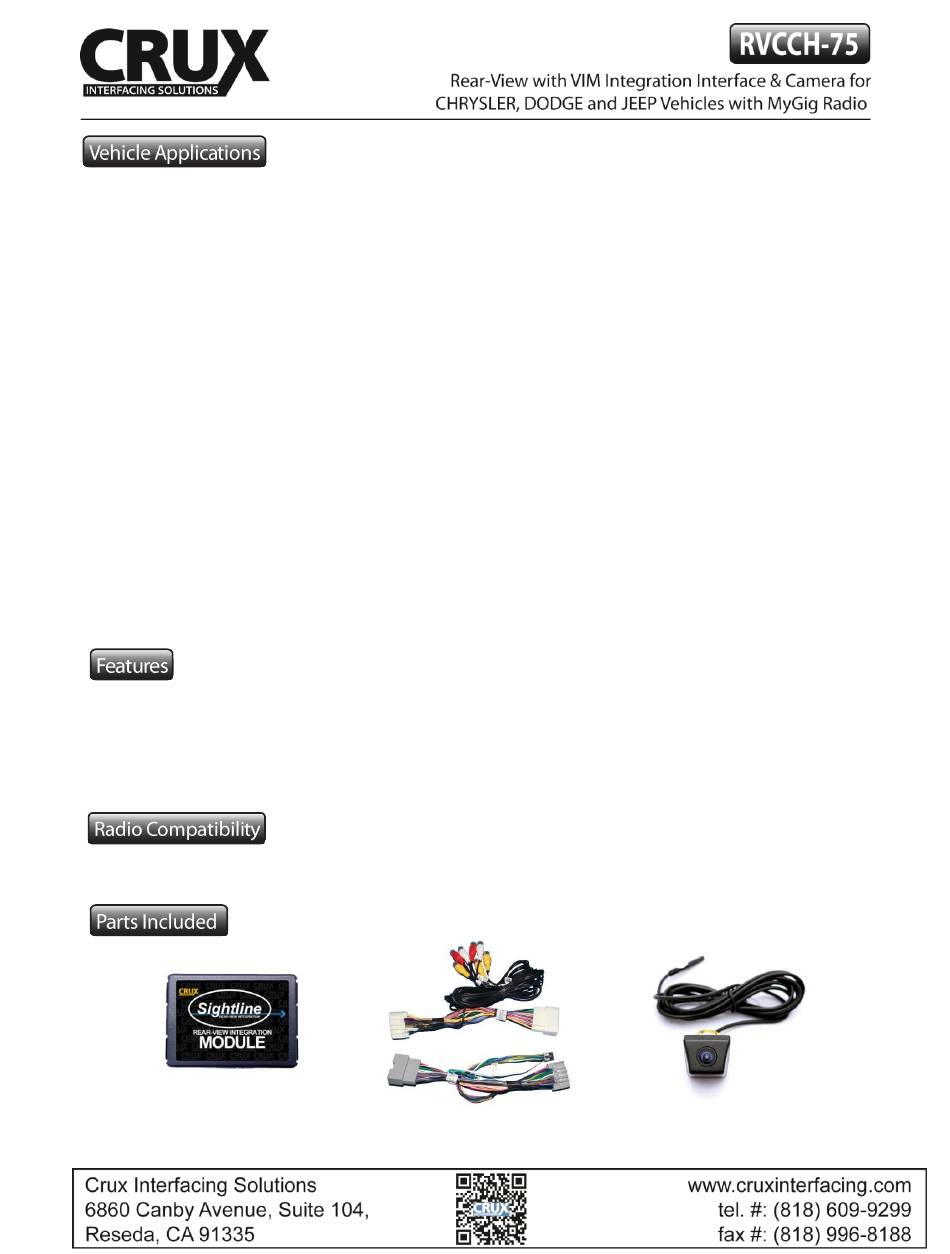

- Page 1 CHRYSLER JEEP 2011 – 2014 2008 – 2010 Commander 2008 – 2010 300/300C 2009 – 2015 Compass 2008 - 2010 Aspen 2008 – 2013 Grand Cherokee 2007 – 2011 Sebring 2008 – 2015 Liberty 2008 – 2017 Town & Country 2009 –...
- Page 2 INSTALLING THE CAMERA AND INTERFACE 1. Remove the rear panel and drill a 5/8” hole to mount the CUL-03 camera. 2. Connect the video cable of the camera to the extension cord provided. 3. Cut the thin white wire on the camera cable to enable the parking guide lines. Connect to disable. 4.
- Page 3 The RVCCH-75 has a feature that enables a permanent or a non-permanent VIM function. To set VIM to permanent, set DIP#1 to ON. To set to non-permanent, set DIP#1 to OFF and connect the GREEN wire to +12V using a toggle switch (not included). Set DIP#2 to ON to enable the rear-view camera.
