INTERFACING SOLUTIONS
PRODUCT FEATURES:
- Activates Reverse camera input in Audi TT with 4G systems.
- Rear-view camera input with PDC setting.
- Front camera input with timed activation/deactivation setting.
- On-screen display and setup.
PARTS INCLUDED:

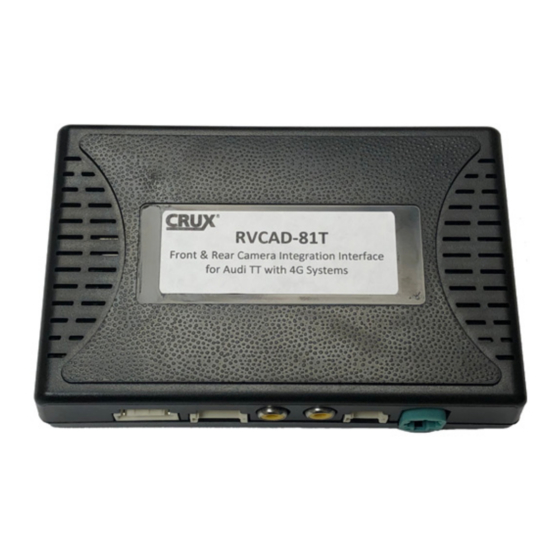

RCVAD-81T Module

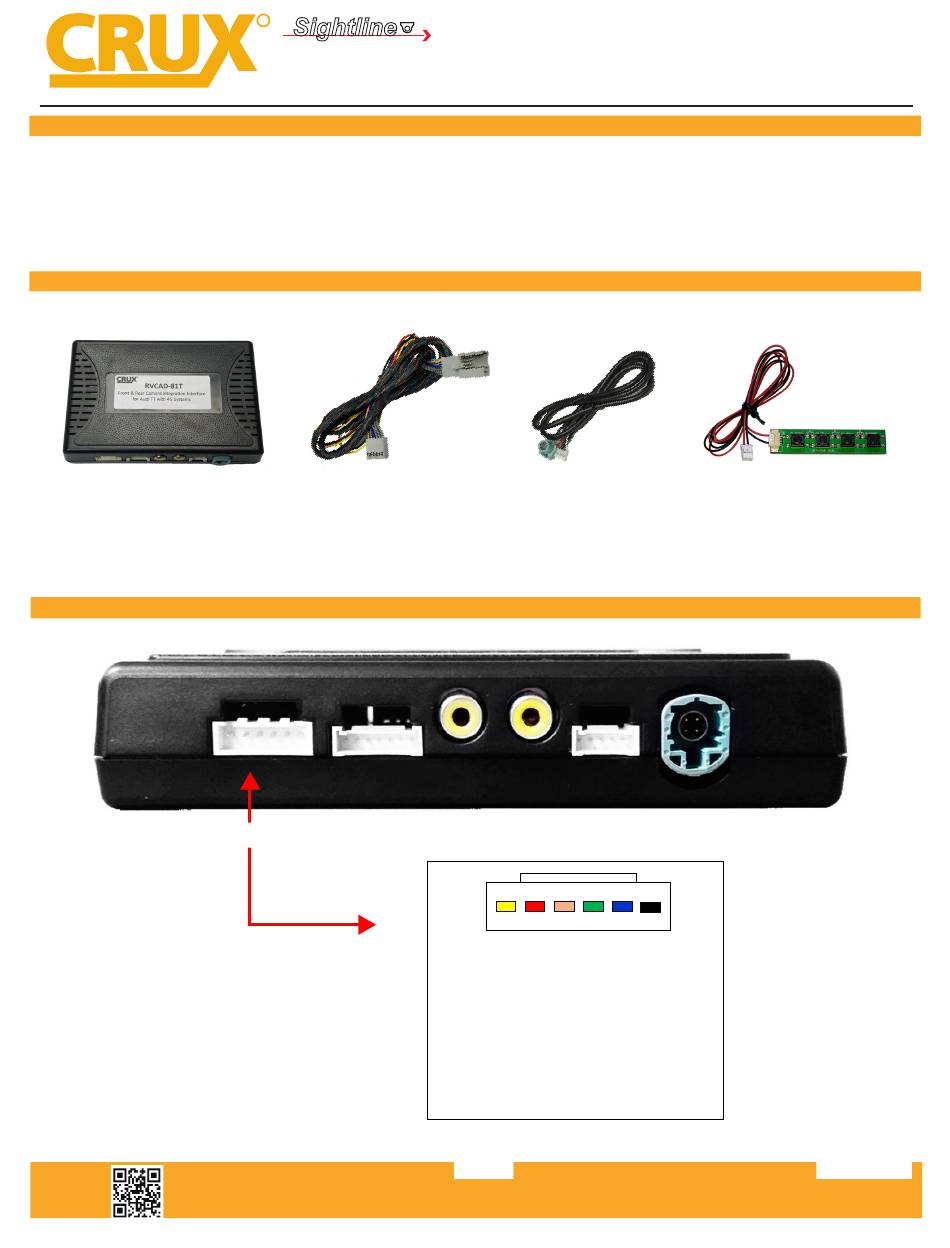

CONNECTOR PIN ASSIGNMENT:
Power/CAN
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
Sightline
R
REAR-VIEW INTEGRATION
RVCAD-81T Harness
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
LVDS Cable
FRONT
REAR
POWER Harness
① ② ③ ④ ⑤ ⑥
① ACC (Yellow)
② FRONT/REAR_POWER (Red)
③ CAN - HIGH (Orange)
④ CAN - LOW (Green)
⑤ MMI (Blue)
⑥ GND (Black)
1 of 6
RVCAD-81T
Front and Rear View Integration Interface
for AUDI TT with 4G Systems
Programming Keypad
rev.072519
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crux RVCAD-81T
Summary of Contents for Crux RVCAD-81T
- Page 1 ③ CAN - HIGH (Orange) ④ CAN - LOW (Green) ⑤ MMI (Blue) ⑥ GND (Black) 1 of 6 rev.072519 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 2 Rear Camera Power (Red) Green Connector) Ground (Black) To Front Camera To Rear Camera To OE Monitor 2 of 6 rev.072519 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 3 Select Item Move cursor Up Increase selected value Move cursor Down DOWN Decrease selected value 3 of 6 rev.072519 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 4 Scale Y Up Reduce / Increase screen height Scale Y Down Reset Reset to factory defaults 4 of 6 rev.072519 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 5 Reset Reset to factory defaults Parking Line ON Parking Line OFF PDC ON PDC OFF 5 of 6 rev.072519 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
- Page 6 Press DOWN Button VEHICLE APPLICATIONS: Audi 2016 - 2020 TT with 12” screen 6 of 6 rev.072519 Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311 phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com...
