Crux Sightline RVCAD-81B Manualline

Rear-view integration interface with dynamic parcing

Download this manual

Activates Reverse camera input in Non MMI Audi vehicles.

Rear-view camera input.

Provides three AV Inputs.

With OE type Dynamic Parking Assistance + PDC.

On-screen display and setup.

AUDI

2008 - 2014

- Works on Audi vehicles with Non MMI systems (no MMI Control Knob behind the gear shifter).

1 / 10

rev.011917

Need help?

Do you have a question about the Sightline RVCAD-81B and is the answer not in the manual?

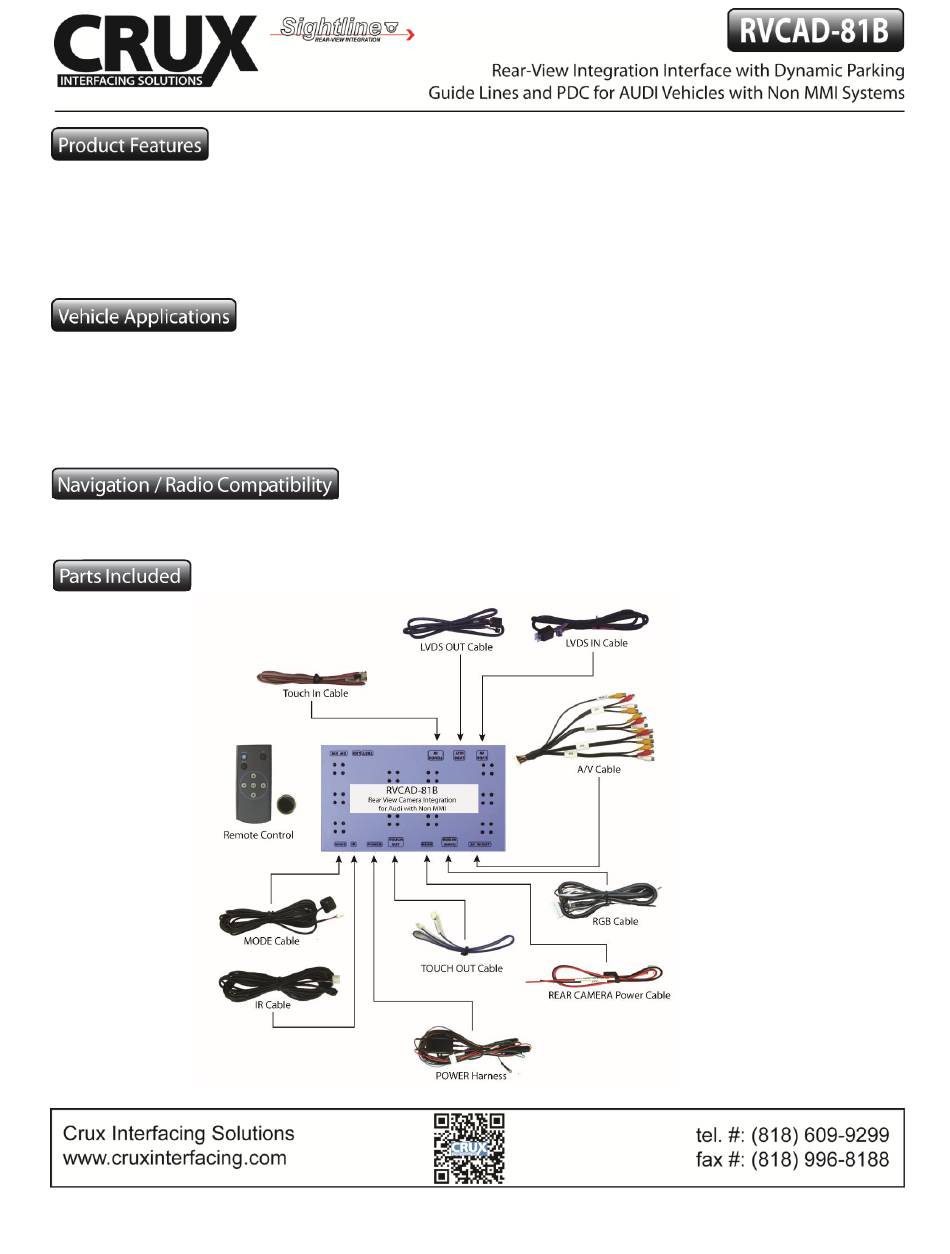

Page 1 Activates Reverse camera input in Non MMI Audi vehicles. Rear-view camera input. Provides three AV Inputs. With OE type Dynamic Parking Assistance + PDC. On-screen display and setup. AUDI 2008 - 2014 2008 - 2014 2008 - 2014 - Works on Audi vehicles with Non MMI systems (no MMI Control Knob behind the gear shifter). 1 / 10 rev.011917...
Page 2 Connecting the CAN Wires Connect CAN-H-HS (Brown+Green-3Pin) of the interface to CAN High (Orange + Brown) of the car Connect CAN-L-HS (Green-4pin) of the interface to CAN Low (Orange + Green) of the car rev.011917 2 / 10...
Page 3 Connection of LCD Wires 1. Unplug the OE LCD cable from a monitor and connect to the supplied LVDS-IN cable. Please refer to the photo above. WARNING: The ACC wire should be at the bottom. (see arrow) 2. Connect the other end of the original LVDS IN cable to LVDS IN port of the interface. 5 / 6 3.
Page 4 Connecting the CAN Wires 4. Tap the CAN High wire (green + brown) of the RVCAD-81B to the CAN High wire (orange + green) of the vehicle. 5. Tap the CAN Low wire (green) of the RVCAD-81B to the CAN Low wire (orange + brown) of the vehicle.
Page 5 Remote Control OSD Settings Press the of the remote control for 2 seconds to enter settings. 5 / 10 rev.011917...
Page 6 Parking Line Setting 6 / 10 rev.011917...
Page 7 UTIL1 Settings 7 / 10 rev.011917...
Page 8 8 / 10 rev.011917...
Page 9 Operation 9 / 10 rev.011917...
Page 10 OSD (On Screen Display) Settings rev.011917 10 / 10...
