Crux Sightline RVCCH-75E Quick Start Manual

INTERFACING SOLUTIONS
RVCCH-75E
U-CONNECT 8.4" SCREEN
(2-PIECE RADIO)
CHRYSLER:
2011-2015 300 (See Note Below)
DODGE:
2011-2014 Charger
2011-2016 Journey
NOTE:
On 2015 Chrysler 300 without a separate
CD slot (one piece radio), use Part#
RVCCH-75C. (see radio picture on page 2)
IMPORTAN T:
Compatible Radio Type:
U-CONNECT 8.4" SCREEN
REAR-VIEW & VIM INTEGRATION FOR CHRYSLER & DODGE VEHICLES with 2-PIECE RA DIO
work. Following these instructions from "Start" to" Finish" will ensure a
smooth and hassle free installation.
822-1348. We a re he re to help.
PAR TS INCLUDED:
(1) Universal Camera (CUB-01)
(1) 20 ft. Extension

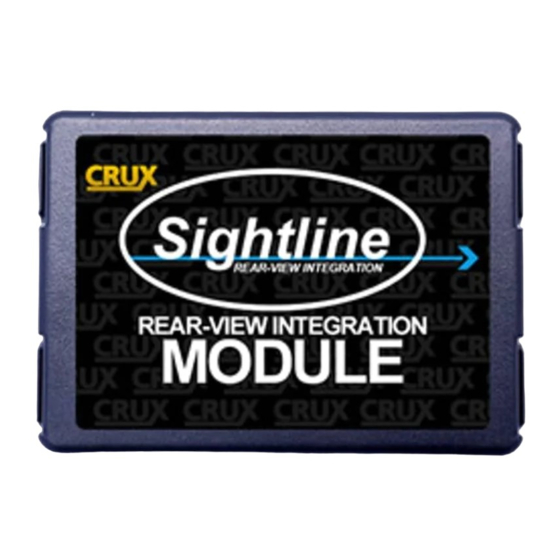

(1) CH-75E Interface (2.1.2)
(1) CH-75E Harness (2644-B)
(1) Instruction
- Lens Angle 170 Degrees
- Resolution 420 TV Lines
- Min. Illumination 0.2Lux
- Voltage 12v
- Operating Temp. -22˚F - 176˚F
- NTSC
- Reference Lines
- Shutter Speed 1/60s - 20us
- Waterproof
- Pixels 656 x 492
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
H VAC system. This may cause damage or overheating to the vehicle.
Please read the enti re manual before installing this interface.

INSTALLING THE CAMERA AND CABLE

This kit includes a universal bullet camera that can be mounted in
it a clean install. Please see page 3 for installation instructions. After
the camera is installed to the desired location, route the power and
video wires towards the radio and make the connections. For powering
the camera, use the 12V OUTPUT (White Wire) from the 8-pin Molex
connector plugged into the interface.
Note: The camera is defaulted to power down after 10 seconds.
FORCE REVERSE
The force reverse is used to view the back-up camera when the vehicle
is not in reverse gear. Allows you to view what is in the back while
driving.
SEEK UP
To activate this feature make su re the
dip switch settings are correct.
Then simply press the center button
once on the Left Hand steering wheel
control.
Note: The camera is defaulted to power
down after 10 seconds.
SEEK DN

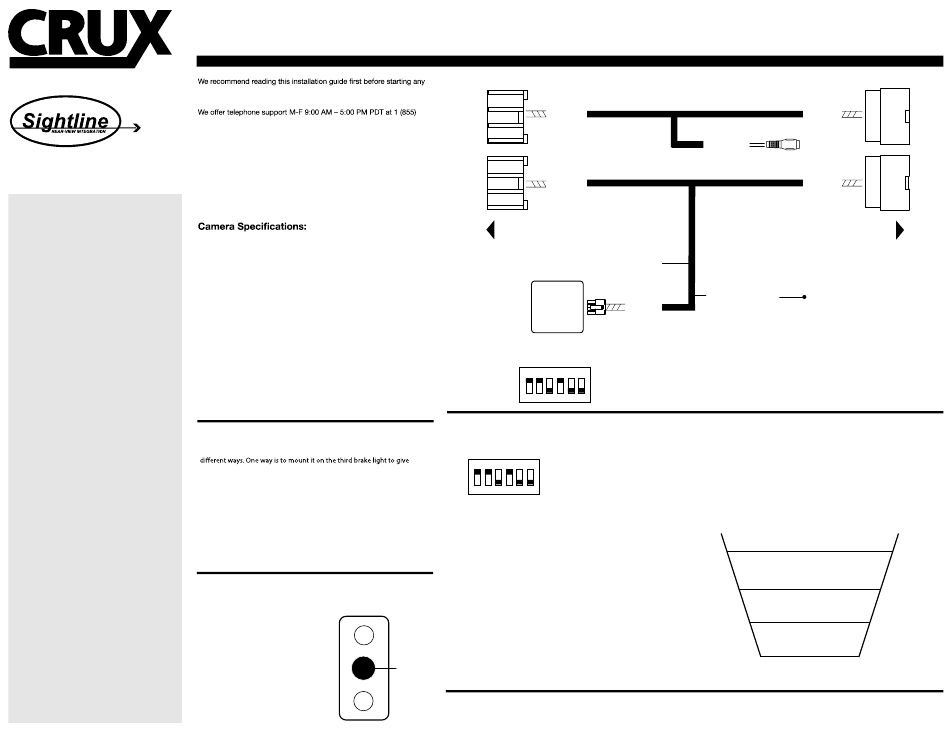

CONNECTIONS OVERVIEW
22-PIN
WHITE
(male plug)
22-PIN
WHITE
(male plug)
TO FACTORY
RADIO
GREEN / 12V POWER SWITCH
INTERFACE
TO ENABLE VIDEO
IN-MOTION
ON
1 2 3 4 5

SETTING THE DIP SWITCHES

TO ENABLE VIDEO
IN-MOTION 1. On = Enable VIM
2. On = Enable R VC
ON 3. Not Used
4. On = Enable Force R VC
5. May Vary
1 2 3 4 5 6
6. May Vary
Dip 1: Activates the Video In-Motion feature. The dip switch
is the permanent solution for keeping the VIM unlocked.
Use the Green wire with a toggle switch for a non-permanent
solution. (Switch not included)
Dip 2: Activates the Rear-View Camera image when the vehicle is in
reverse gear.
Dip 4: Activates the "Force Rear-View Camera" while driving.
Force Rear-View Camera allows the driver to view the
rear-view camera when not in the Reverse gear.
Dip 5 & 6: Varies, these switches are defaulted both to OFF.
If the radio is having turn-on issues please try the following:
Attempt One: Set both 5 & 6 to the ON position.
Attempt Two: Set 5 to On and 6 to OFF.
Attempt Three: Set 5 to OFF and 6 to ON.
PRESS
If none of the above solutions work out for your vehicle please
contact tech support.

TROUBLE SHOOTING

1. No video display while in reverse.
- Make sure the dip switches are in the correct position. More support contact us.
VIDEO HARNESS
VIDEO-IN
(female plug)
WHITE / 12V OUTPUT
8-PIN
(male plug)
1. On = Enable VIM
2. On = Enable R VC
3. Not Used
4. On = Enable Force R VC
5. May Vary
6
6. May Vary
PARKING LINE
The parking lines are the re to assist you while reversing.
What the lines mean:
Green Line: CLEAR
Yellow Line: GETTING CLOSE
Red Line: WARNING - VERY CLOSE
rev.080215
22-PIN
GRAY
(female plug)
22-PIN
WHITE
(female plug)
TO FACTORY
HARNESS
TO CAMERA
GREEN
YELLOW
RED
