Crux RVCCH-75W Quick Start Manual

Rear-view with vim integration interface and license plate light camera for jeep wrangler

- Interface includes Audio / Video Input to connect an extra A/V source.

- License plate light mount reverse camera included.

- Activates MYGIG Screen for enabling Video features.

- Supports vehicles with manual transmission but does not supply +12V Reverse Trigger. Camera

power must be tapped from the +12V reverse light wire instead.

- Plug and Play Connections for ease of use.

- MyGig Navigation Radio

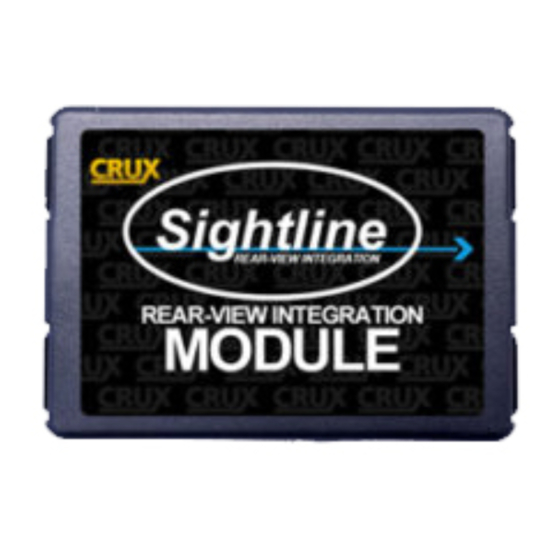

CH-75W MODULE

Please note that the WHITE 12V

Reverse Output wire does not

supply power on vehicles with

manual transmission and should

be insulated to avoid from

shorting. Connect the camera

power to the OE reverse light

+12V wire instead.

CH-75W HARNESS

1 / 3

LICENSE PLATE LIGHT CAMERA

Rev.092617

Table of Contents

Need help?

Do you have a question about the RVCCH-75W and is the answer not in the manual?

Page 1 - Interface includes Audio / Video Input to connect an extra A/V source. - License plate light mount reverse camera included. - Activates MYGIG Screen for enabling Video features. - Supports vehicles with manual transmission but does not supply +12V Reverse Trigger. Camera power must be tapped from the +12V reverse light wire instead.
Page 2 DIP 1 VIM Disable DIP 2 Rear-View Camera Enable DIP 3 NOT Used DIP 4 NOT Used DIP 5 CAN Termination Radio Side DIP 6 CAN Termination Car Side INSTALLING THE CAMERA AND INTERFACE 1. Remove the stock license plate light at the back of the vehicle. 2.
Page 3 VES will be your source for the AV Input. To access the VES button, press the RADIO/MEDIA button on the left side of the radio. The VES button is only active after the interface is properly installed. JEEP 2007 – 2017 WRANGLER MyGig Radio (HARD DISC DRIVE or HARD DRIVE printed on the lower right hand side of radio face)
