- Interface includes Audio / Video Input to connect an extra A/V source.
- OEM style Spare Tire mount reverse camera included.
- Camera has moving parking guide lines to show path direction while backing up.
- Activates MYGIG Screen for enabling Video features.
- Supports vehicles with manual transmission. See note below.
- Plug and Play connections for ease of use.
NOTE: Does not supply +12V Reverse Trigger on vehicles with manual transmission.
Camera power must be tapped from the +12V reverse light wire instead.

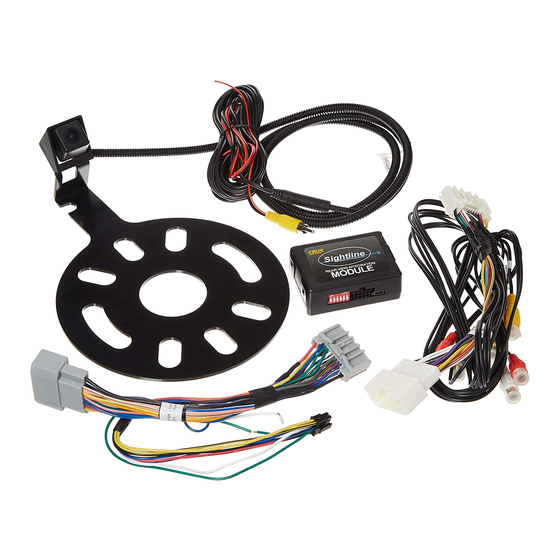

CH-75WM MODULE
CCH-01M SPARE TIRE MOUNT CAMERA with MOVING LINES
CH-75WM HARNESS
1 / 3
Rev.092617
Advertisement
Table of Contents
Related Manuals for Crux RVCCH-75WM
Summary of Contents for Crux RVCCH-75WM
- Page 1 - Interface includes Audio / Video Input to connect an extra A/V source. - OEM style Spare Tire mount reverse camera included. - Camera has moving parking guide lines to show path direction while backing up. - Activates MYGIG Screen for enabling Video features. - Supports vehicles with manual transmission.
- Page 2 DIP SWITCH SETTING Please note that the WHITE 12V Reverse Output wire does not DIP 1 VIM Disable supply power on vehicles with DIP 2 Rear-View Camera Enable manual transmission and should DIP 3 be insulated to avoid from DIP 4 Option for GREEN Wire shorting.
- Page 3 The parking lines are there to assist you while reversing. To activate the parking lines simply cut/disconnect the WHITE loop wire located near the 4 pin camera connector. What the Lines mean: Green Line: CLEAR Yellow Line: GETTING CLOSE Red Line: WARNING - VERY CLOSE White Line: SHOWS THE PATH DIRECTION VES will be your source for the AV Input.
