Crux RVCCH-75D Quick Start Manual

RVCCH-75D
U-CONNECT 8.4" SCREEN
U-CONNECT 5" 6-BUTTON/ 2 KNOB
U-CONNECT 4.3" 6-BUTTON/ 2 KNOB
DODGE:
2013 -2014 Ram
Make sure to test the camera angle
before re-installing the tailgate
cover.
IMPORTANT:
Compatible Nav Radio Type:
U-CONNECT 8.4" SCREEN
U-CONNECT 5" 6-BUTTON/ 2 KNOB
U-CONNECT 4.3" 6-BUTTON/ 2 KNOB
REAR-VIEW & VIM INTEGRATION w/ HANDLE & CAMERA FOR DODGE RAM 2013-UP
We recommend reading this installation guide first before starting any work. Following these instructions from "Start" to" Finish" will ensure a smooth and hassle free installation.
We offer telephone support M-F 9:00 AM – 5:00PM PDT at 1 (855) 822-1348. We are here to help.

PARTS INCLUDED:

(1) Tailgate Handle
(1) Bullet Camera (CH-75D)
(1) 15 ft. Extension
(1) CH-75D Interface
(1) CH-75D Harness
(1) Instruction

Camera Specifications:

- Lens Angle 170 Degrees
- Resolution 420 TV Lines
- Min. Illumination 0.2Lux
TO FACTORY
- Voltage 12v
DISPLAY
- Operating Temp. -22˚F - 176˚F
- NTSC
- Reference Lines
- Shutter Speed 1/60s - 20us
- Waterproof
- Pixels 656 x 492
PRECAUTIONS:
- Remove the negative side of the battery to avoid any short circuits
during the installation.
- Do not install the interface near any major components or near the
HVAC system. This may cause damage or overheating to the vehicle.
:
PRELIMINARY
Please read the entire manual before installing this interface.

INSTALLING THE CAMERA AND CABLE

Preliminary: Insert the camera through the camera whole on the tail-
gate handle. Now proceed on to the removal of the factory handle.
1. Remove (8) T30 hex screws to remove the tailgate cover.
2. Remove (2) 8mm screws to release the factory handle.
3. Swap the key cylinder from the OE tailgate to the new one.
4. Fish the wires through the tailgate and into the bottom of the truck's
frame. Route towards the front of the vehicle. Test camera angle.
5. Remove the factory radio to gain access to the factory connectors.
6. Make the power and video then route the wires towards the radio
and make the power connections connections. For powering up the
camera, use the 12v OUTPUT (White Wire). (See Overview)
Note: The camera is defaulted to power down after 10 seconds.
FORCE REVERSE
The force reverse is used to view the back-up camera when the vehicle
is not in reverse gear. Allows you to view what is in the back while
driving.
SEEK UP
To activate this feature make sure the
dip switch settings are correct.
Then simply press the center button
once on the Left Hand steering wheel
control.
Note: The camera is defaulted to power
down after 10 seconds.
SEEK DN
CAN-BUS INTERFACE
1. On = Enable VIM (PERMANENT)
2. On = Enable RVC
ON 3. Not Used
4. On = Enable Force RVC
5. May Vary
1 2 3 4 5 6
6. May Vary
GREEN/ 12V POWER SWITCH
(SAME FUNCTION AS DIP 1)
NON-PERMANENT
VIDEO-IN
8-PIN
(male plug)
(male plug)
52-PIN
(male plug)
52-PIN
TO FACTORY
(male plug)
DISPLAY
DOES NOT REQUIRE YOU TO
TAP FOR REVERSE SIGNAL
(SIGNAL IS FROM MODULE)
GREEN/ 12V POWER SWITCH
INTERFACE
SETTING THE DIP SWITCHES
TO ENABLE VIDEO
IN-MOTION
1. On = Enable VIM
2. On = Enable RVC
3. Not Used
ON
4. On = Enable Force RVC
5. May Vary
1 2 3 4 5 6
6. May Vary
Dip 1: Activates the Video In-Motion feature. The dip switch
is the permanent solution for keeping the VIM unlocked.
Use the Green wire with a toggle switch for a non-permanent
solution. (Switch not included)
Dip 2: Activates the Rear-View Camera image when the vehicle is in
reverse gear.
Dip 4: Activates the "Force Rear-View Camera" while driving.
Force Rear-View Camera allows the driver to view the
rear-view camera when not in the Reverse gear.
Dip 5 & 6: Varies, these switches are defaulted both to OFF.
If the radio is having turn-on issues please try the following:
Attempt One: Set both 5 & 6 to the ON position.
Attempt Two: Set 5 to On and 6 to OFF.
Attempt Three: Set 5 to OFF and 6 to ON.
PRESS
If none of the above solutions work out for your vehicle please
contact tech support.
TROUBLE SHOOTING
1. No video display while in reverse.
- Make sure the dip switches are in the correct position. More support contact us.

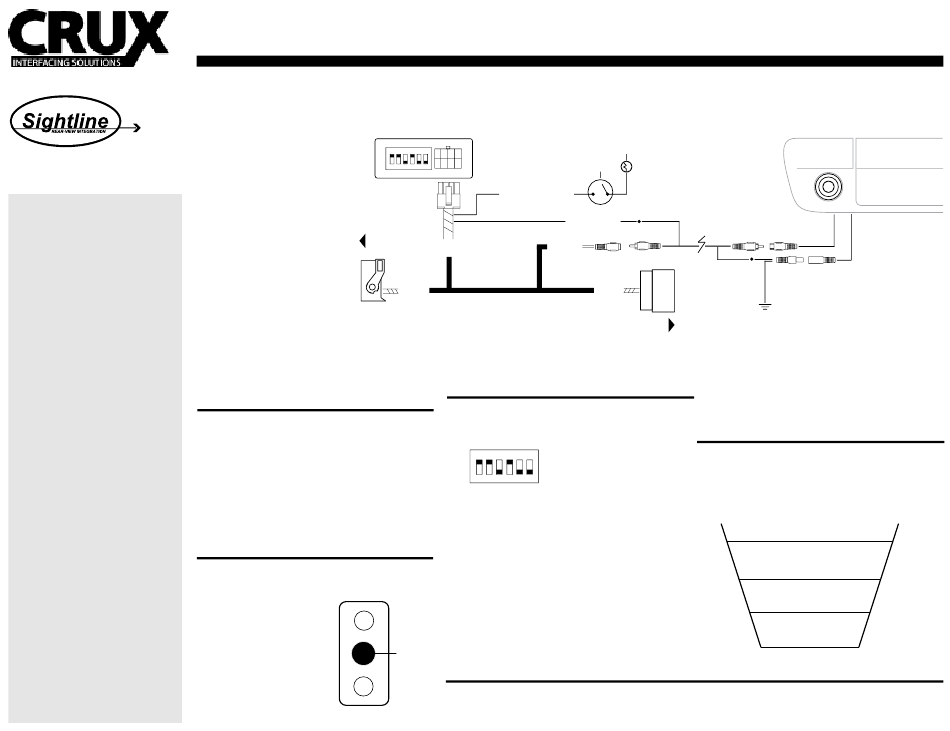

CONNECTIONS OVERVIEW

12V
OPTIONAL/
TOGGLE SWITCH
FUSE
NOT INCLUDED
(NOT INCLUDED)
RED/
12V POWER
WHITE/ 12V OUTPUT
YELLOW RCA/
VIDEO SIGNAL
52-PIN
RED/
(female plug)
12V POWER
52-PIN
BLACK/
(female plug)
GROUND
TO FACTORY
HARNESS
MAKE SURE GROUND
TO FACTORY
CONNECTION IS
HARNESS
CONSISTENT.
VIDEO-IN
(male plug)
WHITE/ 12V OUTPUT
8-PIN
(male plug)
MAKE SURE TO TEST THE CAMERA ANGLE BEFORE
RE-INSTALLING THE TAILGATE COVER.
PARKING LINE
The parking lines are there to assist you while reversing.
What the lines mean:
Yellow Line: CLEAR
Purple Line: GETTING CLOSE
Red Line: WARNING - VERY CLOSE
Rev. 082613
RAM TAILGATE
HANDLE
RED BARREL/
12V CAM POWER
RED/
12V POWER
RED/
12V POWER
YELLOW RCA/
VIDEO SIGNAL
BLACK/
GROUND
RED BARREL/
12V CAM POWER
YELLOW
PURPLE
RAM
RED
