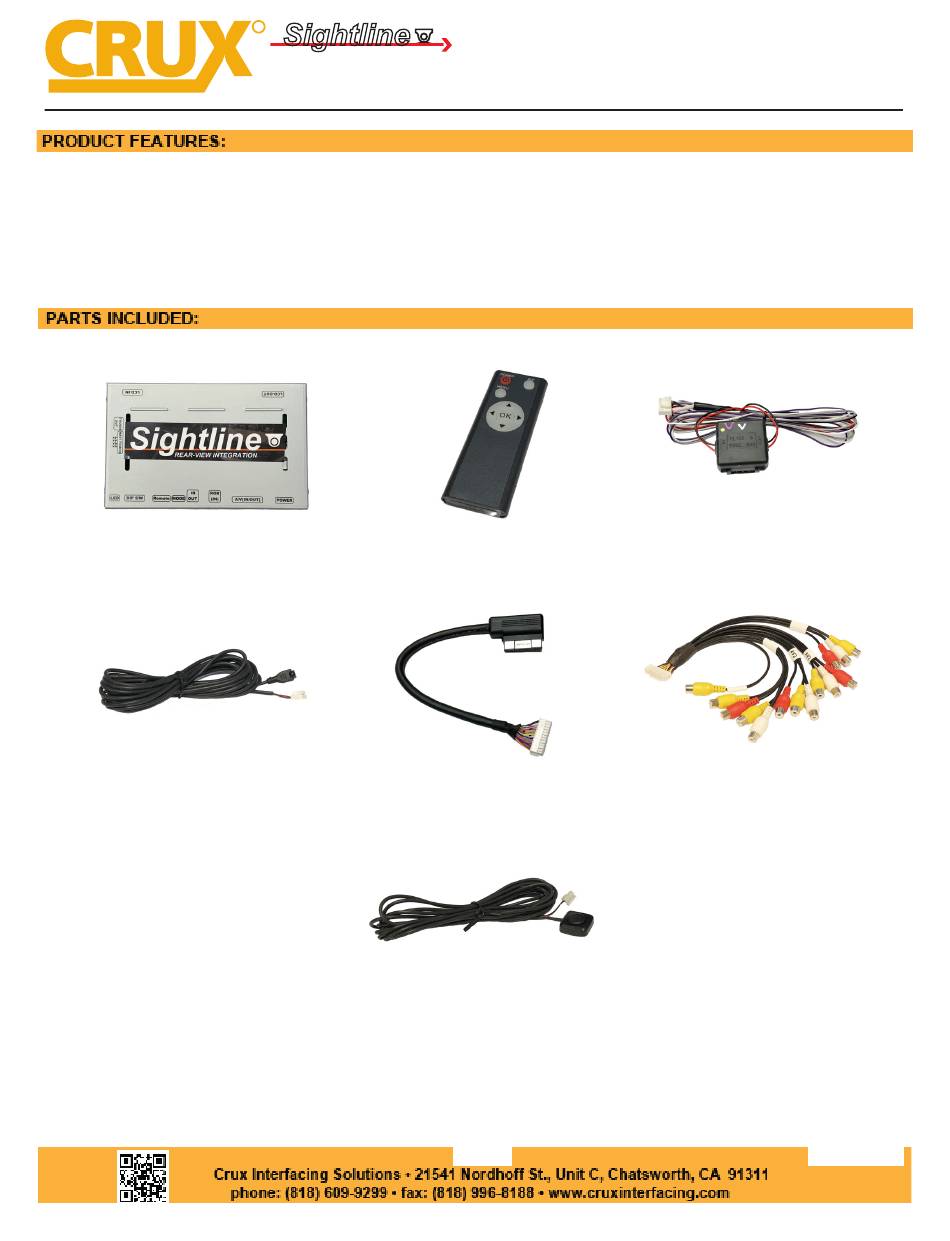

RVCAD-81
Sightline
R
Multi View Integration
Rear-view Camera Integration with AV Inputs for
Select Audi Vehicles with MMI-2G
INTERFACING SOLUTIONS
- Provides reverse camera input.
- Adds 2 Audio/Video inputs.
- Provides 2 video and 1 set of audio outputs.
- Plug and play installation.

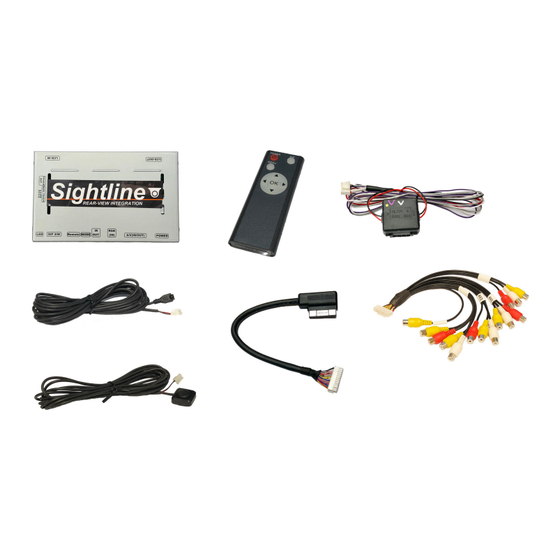

RVCAD-81
Remote Control
Power Harness
Module
IR Extension Cable
LCD Cable
A/V Cable
Push Button Switch
1 of 6
rev.031220
Advertisement
Related Manuals for Crux Sightline RVCAD-81
Summary of Contents for Crux Sightline RVCAD-81
- Page 1 RVCAD-81 Sightline Multi View Integration Rear-view Camera Integration with AV Inputs for Select Audi Vehicles with MMI-2G INTERFACING SOLUTIONS - Provides reverse camera input. - Adds 2 Audio/Video inputs. - Provides 2 video and 1 set of audio outputs. - Plug and play installation. RVCAD-81 Remote Control Power Harness...
- Page 2 RVCAD-81 Sightline Multi View Integration Rear-view Camera Integration with AV Inputs for Select Audi Vehicles with MMI-2G INTERFACING SOLUTIONS MMI CABLE (provided in the kit) FACTORY MMI CABLE TO MMI MODULE SCREEN SAFE (Not used) REAR-C (Gray wire - Connect to reverse light +12V if CAN is not used) MMI (Not used) REAR CAMERA POWER The rear camera power needs to be tapped to the vehicle’s reverse light.
- Page 3 RVCAD-81 Sightline Multi View Integration Rear-view Camera Integration with AV Inputs for Select Audi Vehicles with MMI-2G INTERFACING SOLUTIONS The installation of the RVCAD-81 is done at the MMI Module. The MMI Module is located above the glove box or by the passenger side transmission hump. 1.
-
Page 4: Remote Control
RVCAD-81 Sightline Multi View Integration Rear-view Camera Integration with AV Inputs for Select Audi Vehicles with MMI-2G INTERFACING SOLUTIONS 7. Remove the metal plate to unplug the LCD 8. Unplug the LCD connector. connector. 9. Plug the LCD cable from the OEM monitor to the 10. -
Page 5: Osd Settings
RVCAD-81 Sightline Multi View Integration Rear-view Camera Integration with AV Inputs for Select Audi Vehicles with MMI-2G INTERFACING SOLUTIONS OSD SETTINGS: To enter the OSD Menu: Press the MENU button on the remote control IMAGE UTIL - BRIGHTNESS - LANGUAGE: Choose OSD language - USER RESET: RESET OSD - CONTRAST -TRANS: Transparency control of... - Page 6 RVCAD-81 Sightline Multi View Integration Rear-view Camera Integration with AV Inputs for Select Audi Vehicles with MMI-2G INTERFACING SOLUTIONS Enter Factory Mode by pressing the button on the remote control for 2 seconds Turn Parking Lines ON or OFF using the PARK ENABLE option. It is factory defaulted to ON.
