Crux RVCVL-82S Quick Manual

Crux RVCVL-82S Quick Manual

Front and rear-view integration interface for volvo vehicles with sensus connect system

Advertisement

Quick Links

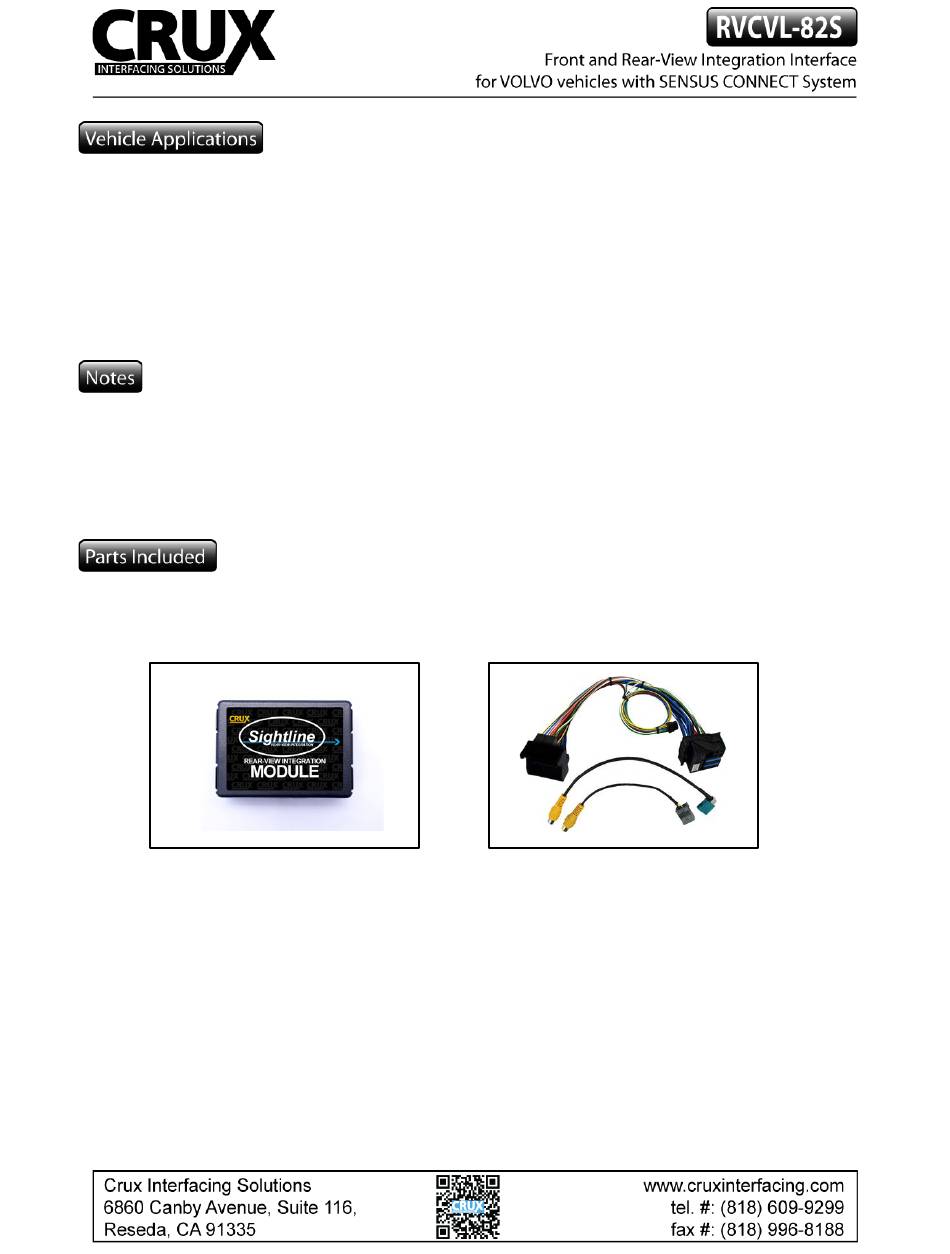

2014-2015
S60 / V60
2014-2015
S80
2014-2015
V70
2014-2015
V40 / V40 Cross Country
2014-2015
XC60
2014-2015
XC70
1. Features like lane pilot, distance assistant and city safety system, DO NOT work while the
RVCVL-82S is activated.
2. Tap the green wire to +12V to activate the video-in-motion feature in selective mode.

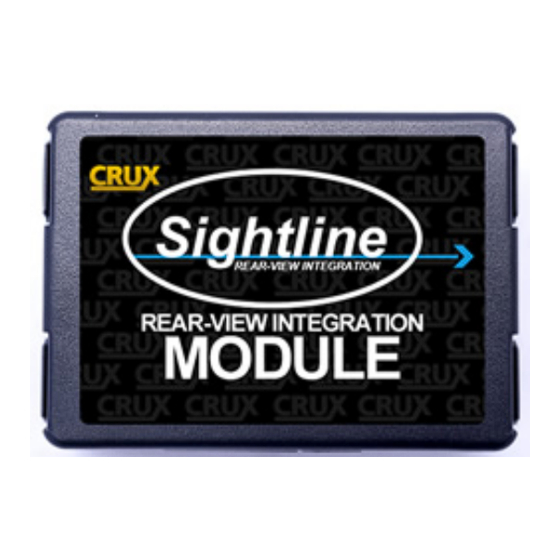

RVCVL-82S
CAN Interface
VL-82S
Harness
1
050415

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RVCVL-82S and is the answer not in the manual?

Questions and answers

Summary of Contents for Crux RVCVL-82S

  • Page 1 XC60 2014-2015 XC70 1. Features like lane pilot, distance assistant and city safety system, DO NOT work while the RVCVL-82S is activated. 2. Tap the green wire to +12V to activate the video-in-motion feature in selective mode. VL-82S RVCVL-82S Harness...
  • Page 2 VL-82S Harness Switch off ignition and disconnect the vehicle’s battery! If disconnecting the battery has to be avoided according to the factory directive, it is usually sufficient to put the vehicle is sleep-mode. In case the sleep-mode does not work, disconnect the battery with a resistor lead. DIP Switch Setting Navigation Vehicles WITHOUT extra equipment (lane pilot,...
  • Page 3 DIP switch functions of the RVCVL-82S DIP 1 – Activate Video in Motion DIP 2 – Activate rear-view camera DIP 3 – Activate front-camera DIP 4 – No function DIP 5 – CAN-bus termination resistor on the vehicle side DIP 6 – CAN-bus termination resistor on the head-unit side PIN Assignment of loose wires on the VL-82S Harness (8-Pin Molex) Wire Color Pin-No.
  • Page 4 Connect the video RCA of the rear-view camera to the female RCA connector of the adapter cable from the RVCVL-82S kit. Connect the green Fakra plug of the adapter cable from the RVCVL-82S kit to the brown Fakra socket of the head unit.
  • Page 5 Connect the video RCA of the front camera to the female RCA connector of the adapter cable from the RVCVL-82S kit. Connect the grey 5pin plug of the adapter cable from the RVCVL-82S kit to the grey 5pin socket of the head unit.
  • Page 6 Softkey Camera menu Activation of the video-in-motion function The video-in-motion can be activated and deactivated by DIP 1 or by the loose green wire on the harness when connected to a +12V ACC source. Video-in-motion permanent With DIP1 to ON the video-in-motion function is activated permanently without disturbing the navigation performance.
