Crux RVCCH-75 Manual

INTERFACING SOLUTIONS
PRODUCT FEATURES:
Activates Mygig radio for enabling video features.
•
Spare tire mount camera included.
•
Interface includes Audio / Video Input to connect an extra A/V source.
•
Automatically switches to Rear-view when car is in Reverse mode.
•
Supports vehicles with manual transmission but does not supply +12V Reverse Trigger. Camera power
•
must be tapped from the +12V reverse light wire instead.
Plug & Play Installation.
•
PARTS INCLUDED:
RVCCH-75 Module

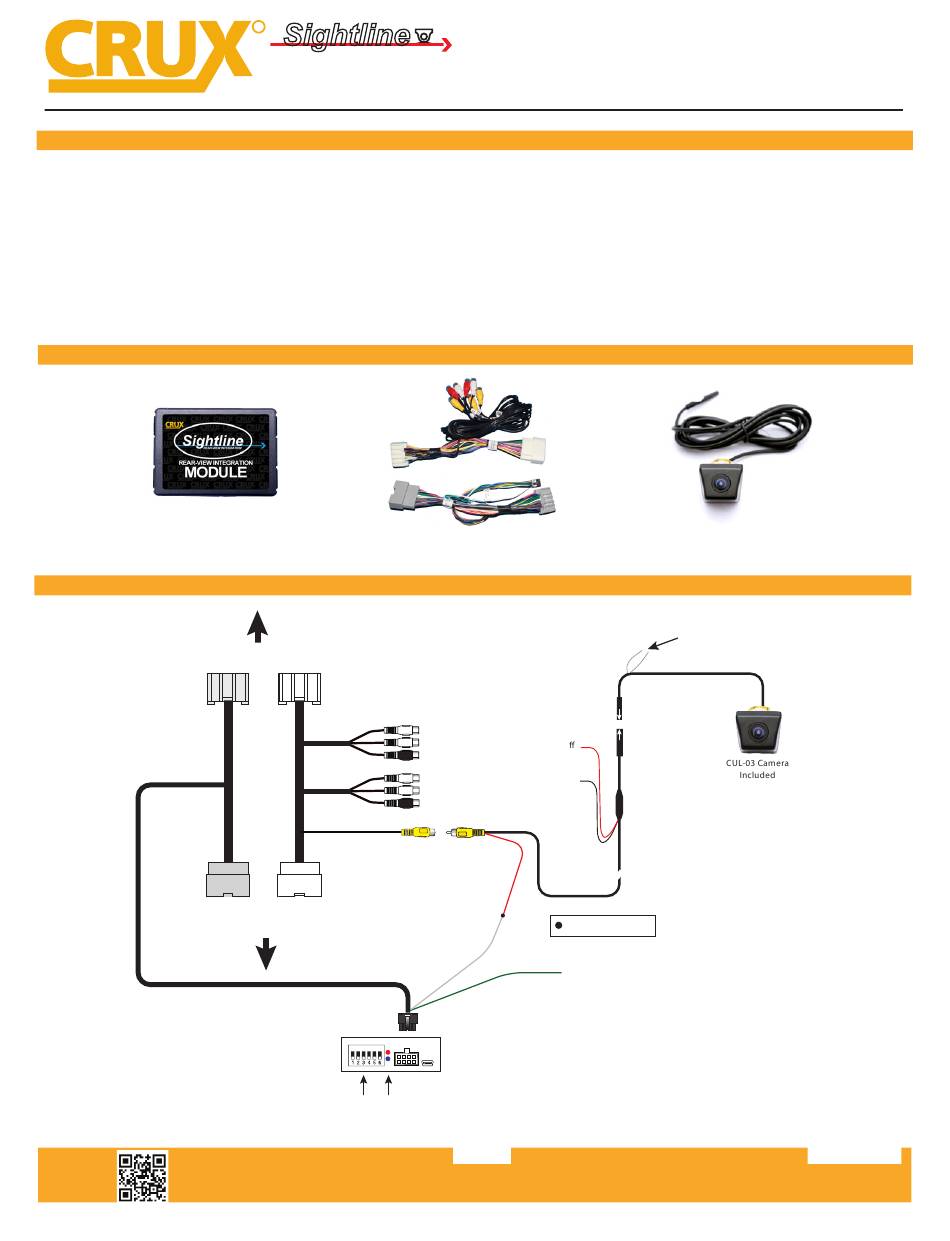

INSTALLATION DIAGRAM:
GRAY
22-PIN
(MALE)
GRAY
22-PIN
(FEMALE)
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
Sightline
R
Multi View Integration
RVCCH-75 Harness
TO RADIO
WHITE
22-PIN
(MALE)
WHITE
22-PIN
(FEMALE)
TO FACTORY
HARNESS
(Camera Power Output
ON
DP
LED*
DIP
SWITCH
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
Rear View with VIM Integration Interface and Lip Mount Camera
for Chrysler, Dodge & Jeep Vehicles with MyGig Radio
RED Wire
A/V OUT
Tape O
(Not Used)
To Source Ground
(ground wire)
A/V INPUT
(not chassis ground)
Represents Solder Joint
WHITE Wire*
+12V 250mA)
GREEN WIRE
ACTIVATE VIDEO BYPASS
*White wire does not supply Reverse Trigger on Manual Transmissions.
8-Pin Molex Camera power must be connected to factory reverse light wire instead.
*LED RED = Power ON Status
LED BLUE = Data Bus ON Status
1 of 3
RVCCH-75
CUL-03 Lip Mount Camera
WHITE Wire
Parking Guideline
Regulator
20 Ft. Coax Cable
rev.021120
