Crux Sightline RVCCH-75F Quick Start Manual

Rear-view integration interface with bullet camera for chrysler and dodge vehicles uconnect system
Hide thumbs Also See for Sightline RVCCH-75F:

Advertisement

Table of Contents

- Automatically switches to rear-view when the case in in reverse gear.
- Provides 2 A/V Inputs.
- Includes aftermarket bullet camera.
- Plug and Play Connections for ease of use.
1) Dodge Journey and Charger require a different camera (not included in the kit). The
CUL-03 camera is available upon customer request.
2) Not compatible with Ram vehicles that are equipped with factory installed cargo camera.
3) Not compatible with diesel powered trucks

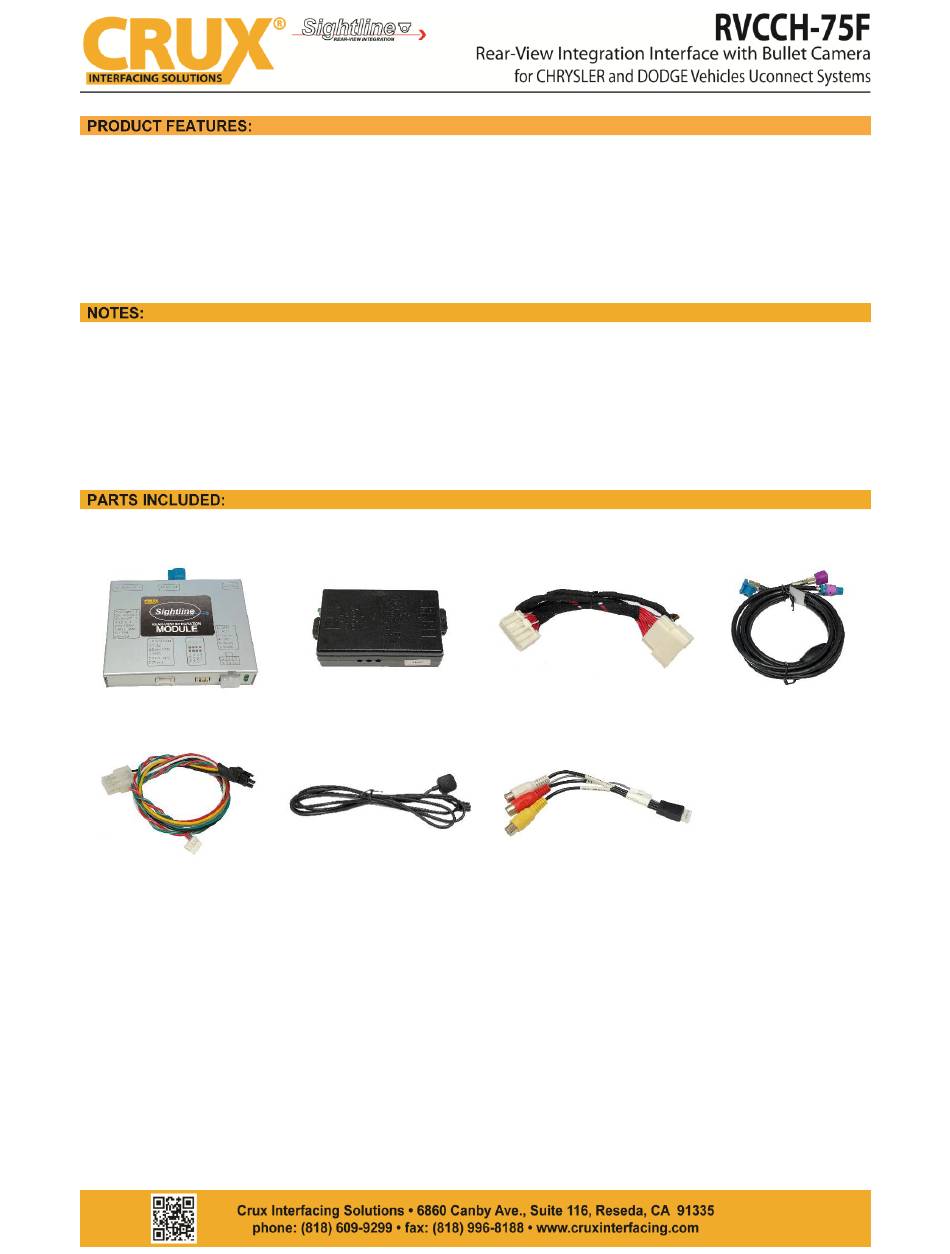

RVCCH-75F
POWER HARNESS
CAN BOX
PUSH BUTTON SWITCH
1 / 6
.
RVCCH-75F HARNESS
VIDEO CABLE
LVDS CABLE
rev.020418

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sightline RVCCH-75F and is the answer not in the manual?

Questions and answers

Related Manuals for Crux Sightline RVCCH-75F

Summary of Contents for Crux Sightline RVCCH-75F

  • Page 1 - Automatically switches to rear-view when the case in in reverse gear. - Provides 2 A/V Inputs. - Includes aftermarket bullet camera. - Plug and Play Connections for ease of use. 1) Dodge Journey and Charger require a different camera (not included in the kit). The CUL-03 camera is available upon customer request.
  • Page 2 2 / 6 rev.020418...
  • Page 3 1. Remove the factory radio to gain access to 2. Locate the 22-pin connector behind the radio. connectors. 3. Using the provided RVCCH-75F T-Harness, mate 4. Unplug the LVDS connector from behind the both sides of the T-Harness to the factory harness factory screen (top unit) and plug it into the purple side and to the radio.
  • Page 4 7. Plug the 6-pin header of the Video Cable to the 8. The RVCCH-75F provides 3 Video Inputs: RVCCH-75F module. YELLOW = Video 1 Input WHITE = Video 2 Input RED = Reverse Camera Input GRAY WIRE = Optional IR Output NOTE: To toggle between the VIDEO Inputs, use the included Push Button Switch or press the “MORE (+)”...
  • Page 5 The RVCCH-75F has MENU buttons at the bottom of the module. This allows adjustment of the video image. Available settings are listed below: Menu Up (+) Down (-) CONTRAST GUIDE L BRIGHTNESS GUIDE R SATURATION GUIDE CNTRL POSITION H H-SIZE POSITION V V-SIZE IR AV1...
  • Page 6 6 / 6 rev.020418...
