CHECKLIST

IMPORTANT: With the pump
removed from its packaging
check for any damage prior to
installation. If any damage is
found contact Stuart Turner
Ltd within 24 hours of receipt.
28 mm copper
inlet pipework
(suction).

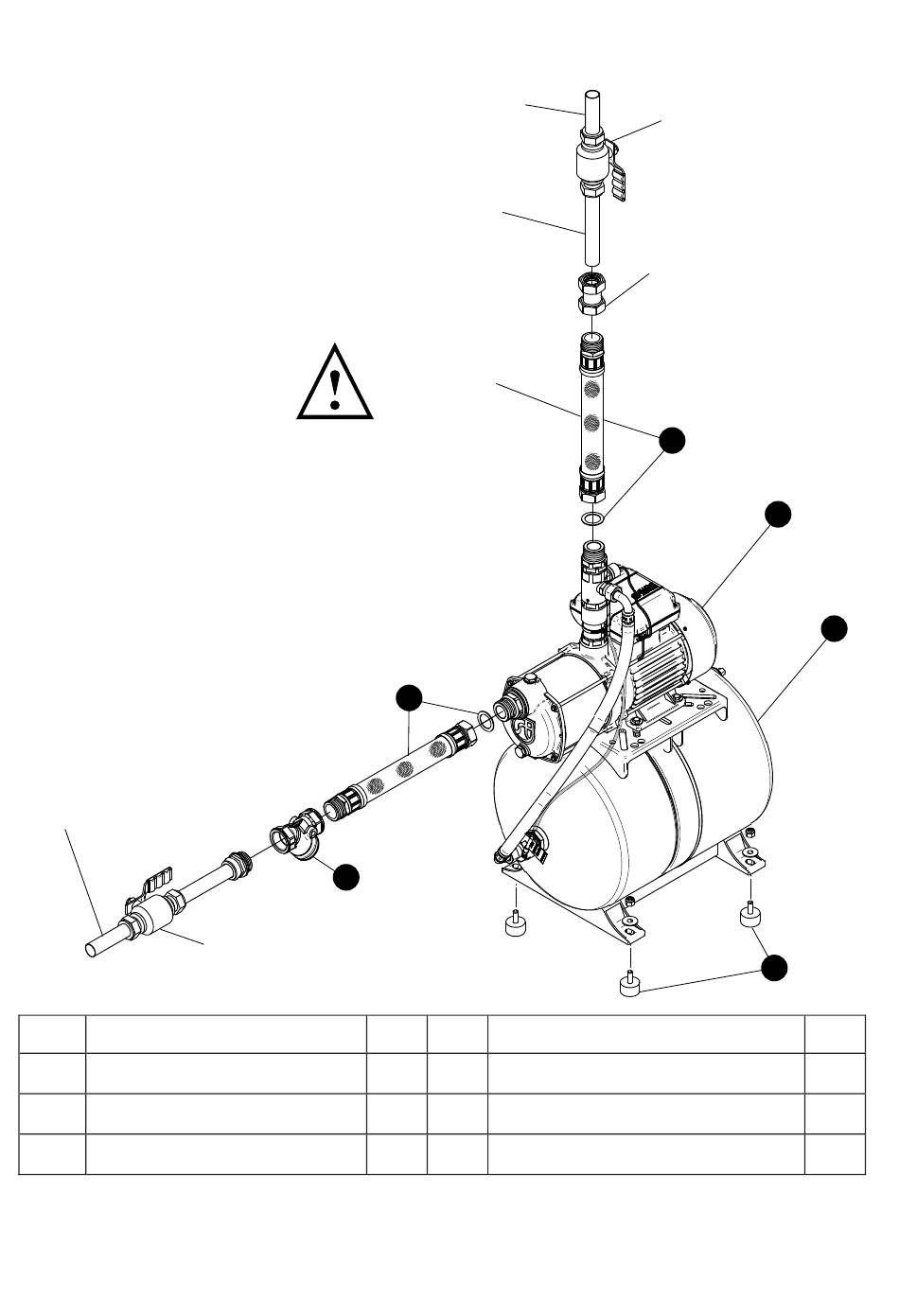

Fig. 1
Item Description
A
Pump
B
Hose & sealing washer
C
Inline strainer
Note: Item E supplied loose - this will require fitting to the pump outlet. Tighten to
torque 4/5 Nm.
Your product may vary slightly from the picture above.
28 mm copper outlet pipework (discharge).
Short 28 mm copper
pipe tails to connect
between isolating valve
and flexible pipes.
suitable for connection to a
G 1 (1 " BSP) adaptor or fitting.
C
28 mm isolating valve
(non restrictive) and
fittings (not supplied)
must be fitted to allow
easy pump service.
Qty Item Description
28 mm flexible
pipes. These
hoses are fitted
with G 1 female
connector
B
D
1 Pressure vessel
E
2 Mounting feet & fittings
1
- 5 -
28 mm isolating valve
(non restrictive) and
fittings (not supplied)
to allow easy pump
service.
28 mm - G 1 connector
(not supplied) must
be fitted
B
A
E
Qty
D
1
4
