6.24 Supply Cord Replacement:
The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335-1. It is essential that prior to any disturbance
of this internal wiring, all cable routing and securing details are
carefully noted to ensure re-assembly to the same factory pattern
is always maintained.
If the supply cord is to be changed or is damaged, it must be replaced with a
special cord assembly available from Stuart Turner or one of their approved
repairers.
On disassembly note the cord retention and routing system. Re-assemble to
the same pattern.
For information on cable connection consult the wiring diagram and cable
gland fitting instructions.
6.25 Cable Gland Fitting Instructions:

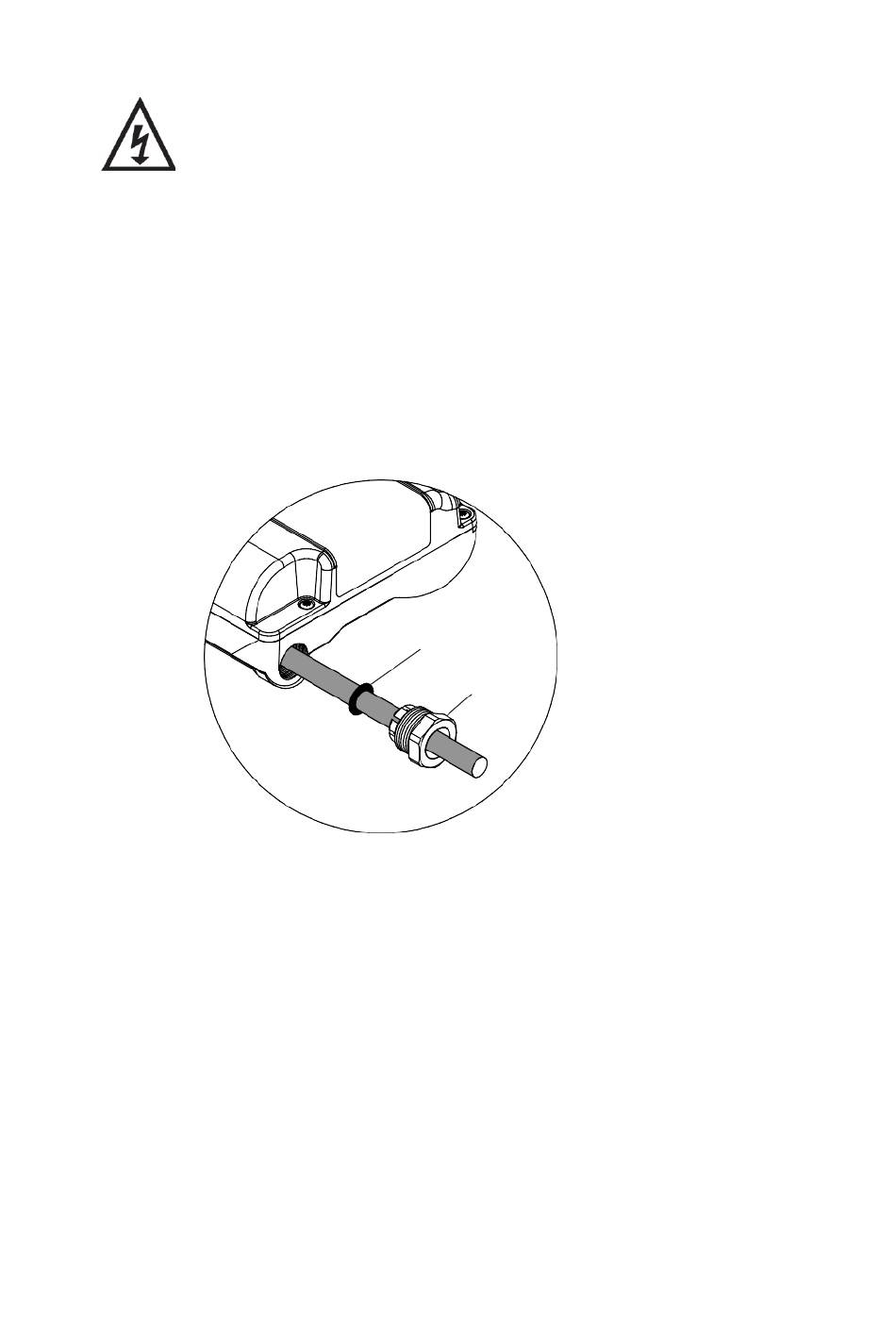

To enable correct assembly of the cable gland the 'O'-ring (Fig. 6 item 1) must
be placed over the cable before the clamping insert (Fig. 6 item 2) can be
tightened.
Note: Cable diameter range:- 9.2 mm to 11.9 mm.
6.26 Supply Cord Extension:
The pumps are fitted with a supply cord to the following specification:-
All models ................................ HO7RN-F3 G 1.5 mm² - 16 Amp rated cable.
If the supply cord is to be extended, a cord of the same specification should
be used. Any connections or junction boxes used should be specifically
suited for the application and installed in accordance with the manufacturers
instructions.
1
2
Fig. 6
