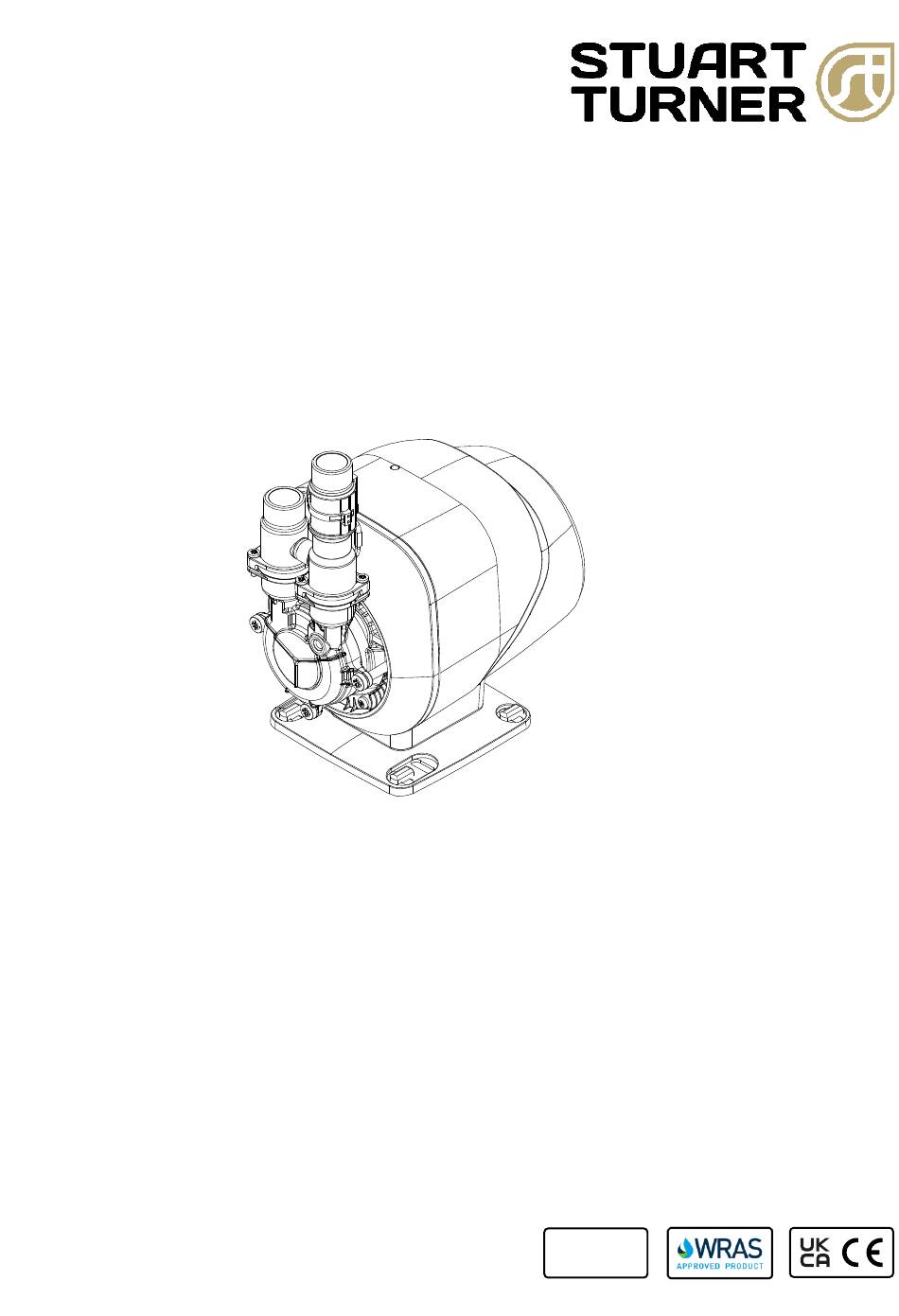

STORMBOOST
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the home-owner as it contains important
warranty, maintenance and safety information.
Read this manual carefully before commencing installation.
This manual covers the following products:
STORMBOOST
Pt. No. 47708
Pt. No. 44995
Please note images are representative only and may not portray
your model
5
YEAR
WARRANTY
Advertisement
Table of Contents
Related Manuals for Stuart Turner STORMBOOST
Summary of Contents for Stuart Turner STORMBOOST
- Page 1 STORMBOOST Installation, Operation & Maintenance Instructions Please leave this instruction booklet with the home-owner as it contains important warranty, maintenance and safety information. Read this manual carefully before commencing installation. This manual covers the following products: STORMBOOST Pt. No. 47708 Pt.
-
Page 2: Table Of Contents
CONTENTS 1 PRODUCT OVERVIEW .................... 1 2 WARNINGS ......................2 3 CHECKLIST ......................5 4 IMPORTANT FACTS - READ BEFORE COMMENCING PUMP INSTALLATION ..6 5 LOCATION - GENERAL ................... 7 6 PIPEWORK CONNECTIONS .................. 8 7 ELECTRICAL INSTALLATION ..................9 8 COMMISSIONING ....................12 9 MAINTENANCE ..................... -
Page 3: Product Overview

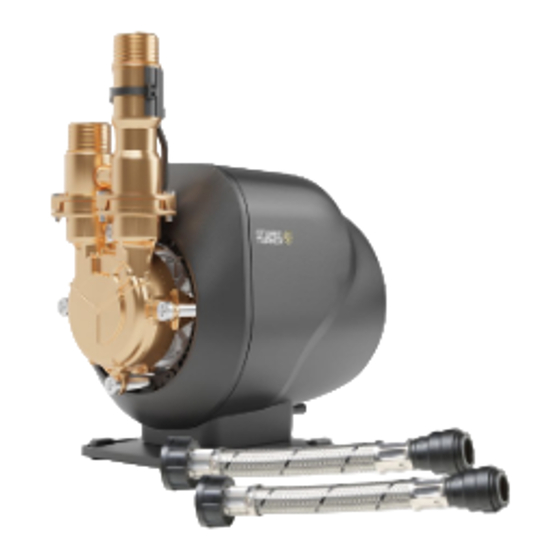

Application The STORMBOOST is a mains booster pump with an automatic control system for domestic use, designed to assist the pressure from the mains supply, where the mains pressure is insufficient. This unit requires a minimum unassisted supply flow of 0.6 l/ min to operate. -
Page 4: Warnings
WARNINGS • This pump must not be used for any other application without the written consent of Stuart Turner Limited. • The pump is not suitable for heavy commercial/ industrial applications. • This appliance can be used by children aged from 8 years and... - Page 5 • If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. Notes • This product must be installed in accordance with the current Water Supply (Water Fittings) Regulations.
- Page 6 Please read installation details carefully as they are intended to ensure this product provides long, trouble free service. Failure to install the unit in accordance with the installation instructions will lead to invalidation of the warranty.
-
Page 7: Checklist
CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. Figure 1 Note: This image is for reference only. ITEM DESCRIPTION... -
Page 8: Important Facts - Read Before Commencing Pump Installation
IMPORTANT FACTS - READ BEFORE COMMENCING PUMP INSTALLATION Water Temperature The water entering the pump must be controlled as follows: • The maximum allowable water temperature is 23 °C. • The minimum allowable water temperature is 4 °C. Pipework – General Secure pipework: Ensure pipework to and from pump is independently supported &... -
Page 9: Location - General
LOCATION - GENERAL • Access: For emergencies and maintenance the pump must be easily accessible. • Protection: The pump must be located in a dry position, frost free and protected from freezing. Ensure the pump is in a dry position, away from heat sources, such as radiators and heaters. •... -
Page 10: Pipework Connections
• Isolating valves: Always install isolating valves (not supplied) to both suction and delivery pipe to aid future maintenance. • STORMBOOST can be connected to mains water supply via the 15mm push fit hoses (supplied) or connected directly to pipework. -
Page 11: Electrical Installation
• The connection unit should be mounted in an easily accessible position and should be labelled if confusion is possible, to allow easy identification of the STORMBOOST isolating switch. • Earthing: This appliance must be earthed via the supply cord, which must be correctly connected to the earth point located in the terminal box. - Page 12 Wiring of Connection Unit WARNING: This appliance must be earthed. The wires in the mains lead (supply cord) are coloured in accordance with the following code: • Green and Yellow: Earth • Blue: Neutral • Brown: Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your connection unit proceed as follows: •...
- Page 13 Wiring Diagram • The supply cord and internal wiring within the terminal box are routed and secured to ensure compliance with the electrical standard EN 60335–1. Do not disturb the internal wiring or factory routing and securing of all internal wiring – (see fig 3). Figure 3 Fuses The following fuse size should be used with the appropriate pump.
-
Page 14: Commissioning
Technical Support For Further Technical Support: Phone the Stuart Turner TechAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone. Note: When pumps are installed in another manufacturer’s original equipment,... -
Page 15: Maintenance
MAINTENANCE No user serviceable parts inside. There are no user serviceable parts available for the pump. Disconnect electrical supply before working on the pump. Turn off water supplies to the pump and release pressure by opening water outlets before attempting maintenance. Cleaners, Disinfectants and Descalents Acid-based descalers and aggressive cleaning agents must not come into contact with the pump. -
Page 16: Technical Specification
TECHNICAL SPECIFICATION Pump Model STORMBOOST 47708 General Warranty 5 years Conformity certification UKCA | CE WRAS WRAS Approved Product Kiwa Kiwa Reg 4 Certified Features Pump type Peripheral Mounting Floor or plinth Anti-vibration feet Anti-vibration flexible hoses Dry run protection ... -
Page 17: Trouble Shooting Guide
Faulty reed switch Remove flow switch reed clamp whilst pump is or P.C.B. running. If pump continues to run, this indicates a closed circuit in either the flow switch reed or P.C.B. in the terminal box. Contact Stuart Turner tech assist... - Page 18 If this does not happen, this indicates a possible fault with the reed switch or the P.C.B which is located within the pump casing. These should be checked electrically. Consult Stuart Turner for further instructions.
-
Page 19: Product Warranty Terms & Conditions
* Important Note This extended promotional warranty is only granted under the following conditions: 1. That the product is registered on the Stuart Turner web site within 12 months of the purchase date. 2. That a valid receipt or other acceptable form of ‘proof of purchase’ such as a copy of the installer’s invoice/receipt is also uploaded during this registration... -
Page 20: Declaration Of Conformity
DECLARATION OF CONFORMITY Stuart Turner Ltd, Henley-on-Thames, Oxfordshire RG9 2AD ENGLAND Tel: +44 (0) 1491 572655 info@stuart-turner.co.uk | www.stuart-turner.co.uk Issue No. 2024-01-01 Pt. No. 72575...
