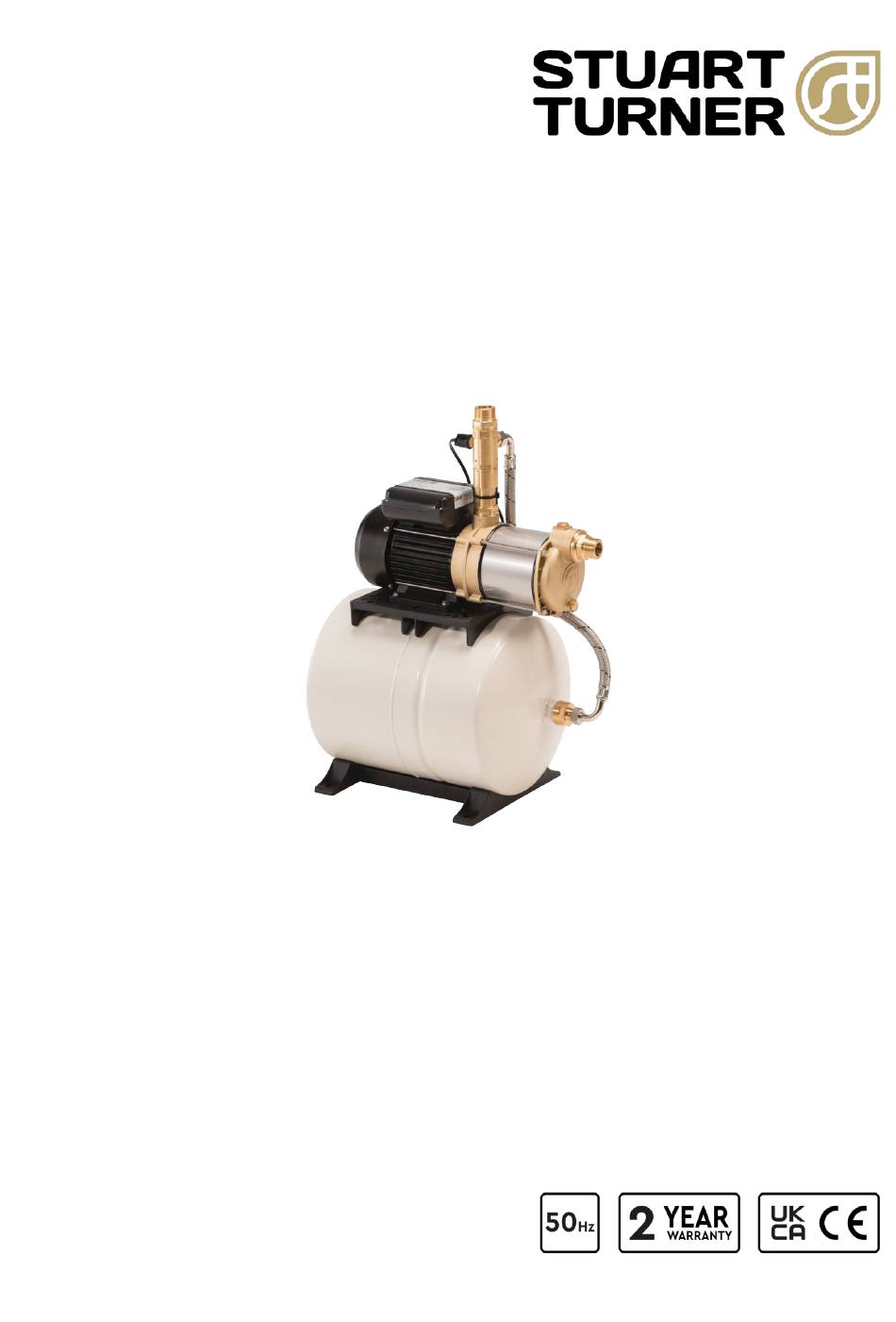

STUART
CH PRESSURE SETS
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the home owner as it contains important
warranty, maintenance and safety information.
Read this manual carefully before commencing installation.
This manual covers the following products:
CH 4-30 PS
Pt. No. 46601
CH 4-50 PS
Pt. No. 44622
Please note images are representative only and may not portray your mode
CH 4-40 PS
Pt. No. 46602
CH 4-60 PS
Pt. No. 44624
Advertisement
Table of Contents
Related Manuals for Stuart Turner CH 4-30 PS
Summary of Contents for Stuart Turner CH 4-30 PS
- Page 1 Please leave this instruction booklet with the home owner as it contains important warranty, maintenance and safety information. Read this manual carefully before commencing installation. This manual covers the following products: CH 4-30 PS CH 4-40 PS Pt. No. 46601 Pt. No. 46602...
-
Page 2: Table Of Contents

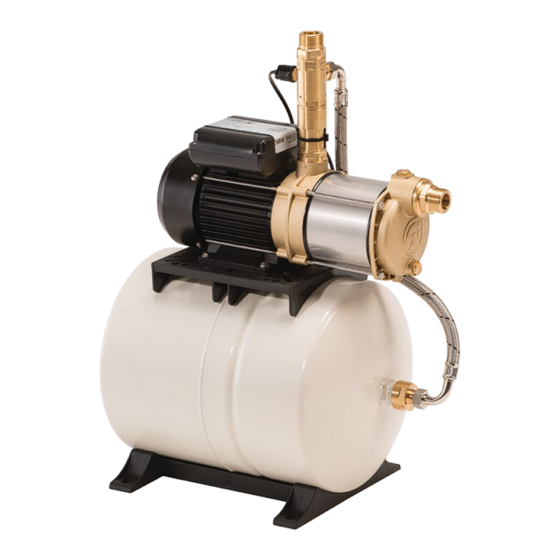

PRODUCT DESCRIPTION Electric motor driven centrifugal pump complete with an automatic control system, consisting of flow switch, pressure switch, pressure vessel and electronic control. APPLICATION The CH 4 Pressure Set range is designed for pressure boosting applications in vented, stored, cold clean water systems, where under gravity, no flow is available and can be used in systems where a negative head exists. -
Page 3: Warnings
This product should not be used for the supply of water to more than one dwelling (house, apartment, flat). Maximum head (closed valve) CH 4-30 PS-25 metres, CH 4-40 PS-37 metres, CH 4-50 PS-51 metres, CH 4-60 PS-64 metres. - Page 4 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. Please read installation details carefully as they are intended to ensure this product provides long, trouble free service.
-
Page 5: Checklist
G 1 (1 “ BSP) adaptor or fitting. IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. 28 mm copper inlet pipework (suction). -
Page 6: Important Facts
IMPORTANT FACTS READ BEFORE COMMENCING PUMP INSTALLATION A Water storage capacity. 3.11 The cold water storage capacity must be sufficient to meet the flow rates required by the pumped equipment and any other water using fittings and appliances, which may be operated simultaneously. 3.12 Ensure the pump is primed as described in the priming section before starting, damage to the shaft seal will result otherwise. -
Page 7: Location - General
4.22 Direction of flow: Ensure the water flow is in the direction of the arrow marked on the flow switch reed clamp (vertically upwards). 4.23 Flexible hoses: Only use the Stuart Turner hose set supplied with the pump. 4.24 Isolating valves: Separate system isolating valves (non restrictive) must be fitted to allow easy pump service. - Page 8 Unvented hot water cylinder Cold water Hot water Fig. 2 The cold water supply: Must be a DEDICATED AIR FREE supply via a tank connector. Do not connect to the mains. Cont ... - 8 -...
-
Page 9: Pump Connections
PUMP CONNECTIONS 5.11 Hose to pump: These pumps have G 1 threaded connections to accept the hoses supplied. The hose end is made water tight with a sealing washer on assembly, nip tight to 4/5 Nm for water tight seal (Do not overtighten). 5.12 Hose to pipework: Hoses terminating in G 1 threaded connections are supplied and when securing the male end to a suitable pipe fitting, seal with PTFE tape or other suitable sealant. -
Page 10: Electrical Installation / Earthing
ELECTRICAL INSTALLATION / EARTHING 6.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 6.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. - Page 11 6.19 Additional earthing: Certain installations may require additional earthing arrangements such as equipotential bonding. Reference should be made to the relevant regulations concerning this subject to ensure compliance. 6.20 Connections: The pump must be permanently connected to the fixed wiring of the mains supply using the factory fitted supply cord, via a double pole switched fused spur off the ring main and NOT connected to the boiler or the immersion heater circuits.
- Page 12 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. On disassembly note the cord retention and routing system. Re-assemble to the same pattern.
-
Page 13: Commissioning / System Flushing/ Priming / Starting
Carefully check pump and pipework for leaks whilst pump running and stationary before leaving the installation unattended. 7.15 For Further Technical Support: Phone the Stuart Turner TechAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone. -
Page 14: Maintenance
MAINTENANCE 8.11 Turn off water supplies to the pump and release pressure by opening water outlets before attempting maintenance. 8.12 Inlet strainer: Incorporated in the strainer is a removable gauze filter which may require periodic cleaning. The frequency of this operation is dependent upon installation conditions. - Page 15 Air Charge Model Schrader bar (psi) valve CH 4-30 PS 1.3 (19) CH 4-40 PS 1.8 (26.1) CH 4-50 PS 2.8 (40.6) CH 4-60 PS 2.8 (40.6) Pressure vessel Fig. 9 8.14 Water scale: As water is heated scale deposits are released in areas of hard water, scale can cause the mechanical seal to stick if left without use for long periods.
-
Page 16: Technical Specification
TECHNICAL SPECIFICATION CH 4-30 PS CH 4-40 PS CH 4-50 PS CH 4-60 PS Pump Model 50 Hz 50 Hz 50 Hz 50 Hz 46601 46602 44622 44624 General Warranty 2 years WRAS approval Approved materials Conformity certification UKCA, CE... - Page 17 17.3 Kg 18.5Kg 23.4 Kg 25.9 Kg Stuart Turner reserve the right to amend the specification without notice. *Note: Indicates maximum casing pressure 9.11 Noise: The equivalent continuous A-weighted sound pressure level at a distance of 1 metre from the pump does not exceed 70 dB(A).
-
Page 18: Trouble Shooting Guide
If pump continues to run, this indicates a closed circuit in or pressure switch. either the flow switch reed, pressure switch or P.C.B. in the terminal box. Contact Stuart Turner. Jammed flow switch. Remove outlet hoses and check that flow switch sits in lowest position. - Page 19 10.11 Dry Run Protection: This pump is fitted with a safety control circuit, which will detect the following fault condition: Dry running caused by water starvation to the pump. Should the pump run out of water it will stop as part of a “protective logic sequence”, detailed below.
- Page 20 Briefly reconnect the mains power supply to the pump - the ‘power on’ light should illuminate if the pump has been correctly wired. Isolate the mains electrical power supply from the pump. Re fit the terminal box lid ensuring no cables are trapped. ...
-
Page 21: Product Warranty Terms & Conditions
‘proof of purchase’ provided during registration will be reviewed. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please make a note for your own reference: PRODUCT MODEL SERIAL NO. - Page 22 NOTES - 22 -...
- Page 23 NOTES - 23 -...
- Page 24 Stuart Turner Ltd, Henley-on-Thames, Oxfordshire RG9 2AD ENGLAND Tel: +44 (0) 1491 572655 Fax: +44 (0) 1491 573704 info@stuart-turner.co.uk | www.stuart-turner.co.uk Issue No. 2322/04-01 Pt. No. 20584...
