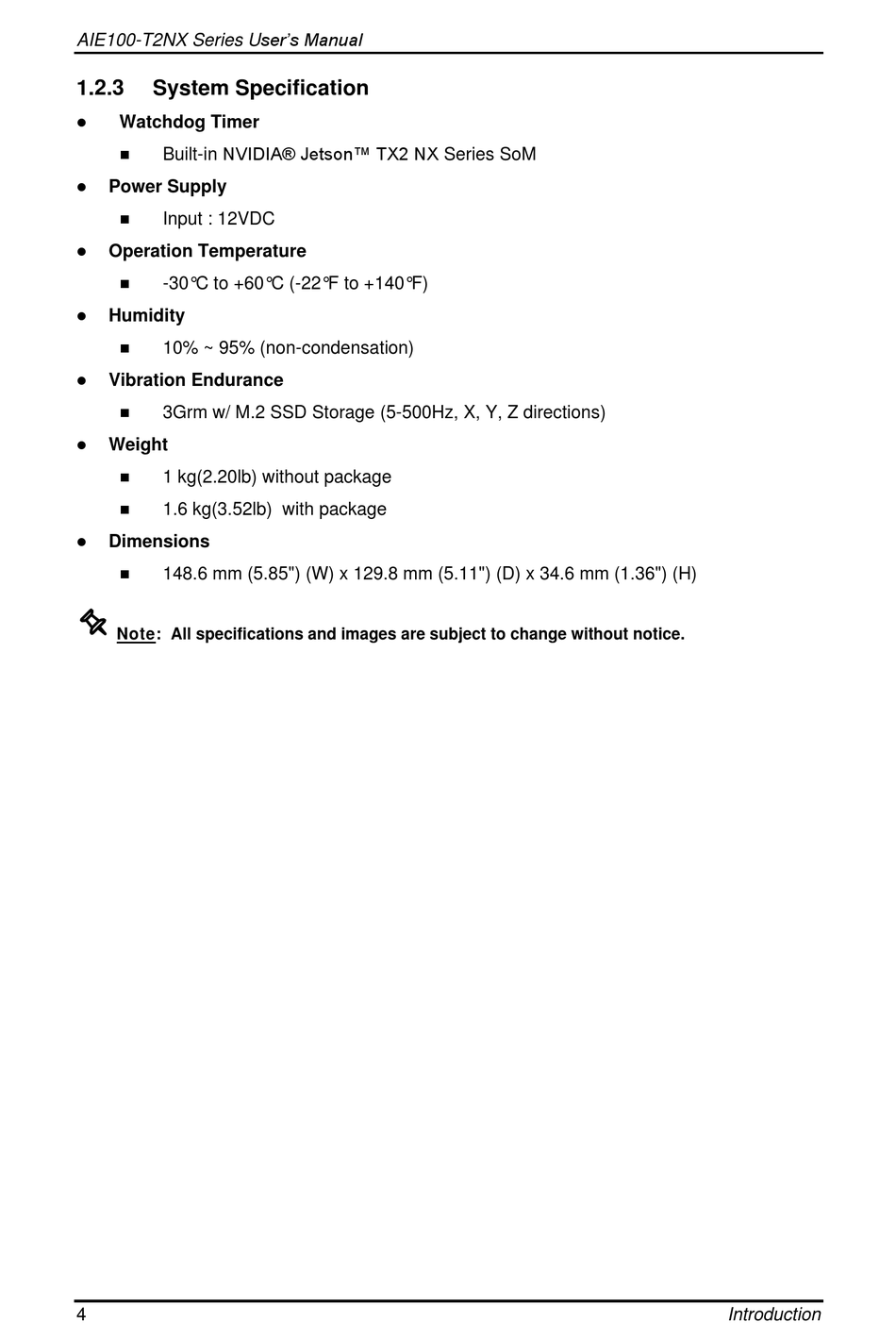

System Specification - AXIOMTEK AIE100-T2NX Series User Manual

AIE100-T2NX Series User's Manual
1.2.3

System Specification

⚫
Watchdog Timer
Built-in NVIDIA® Jetson™ TX2 NX Series SoM
◼
⚫ Power Supply
◼ Input : 12VDC
⚫ Operation Temperature
◼
-30°C to +60°C (-22°F to +140°F)
⚫ Humidity
◼ 10% ~ 95% (non-condensation)
⚫ Vibration Endurance
◼ 3Grm w/ M.2 SSD Storage (5-500Hz, X, Y, Z directions)
⚫
Weight
◼ 1 kg(2.20lb) without package
◼ 1.6 kg(3.52lb) with package
⚫ Dimensions
◼ 148.6 mm (5.85") (W) x 129.8 mm (5.11") (D) x 34.6 mm (1.36") (H)
Note: All specifications and images are subject to change without notice.
4 Introduction
