1.2

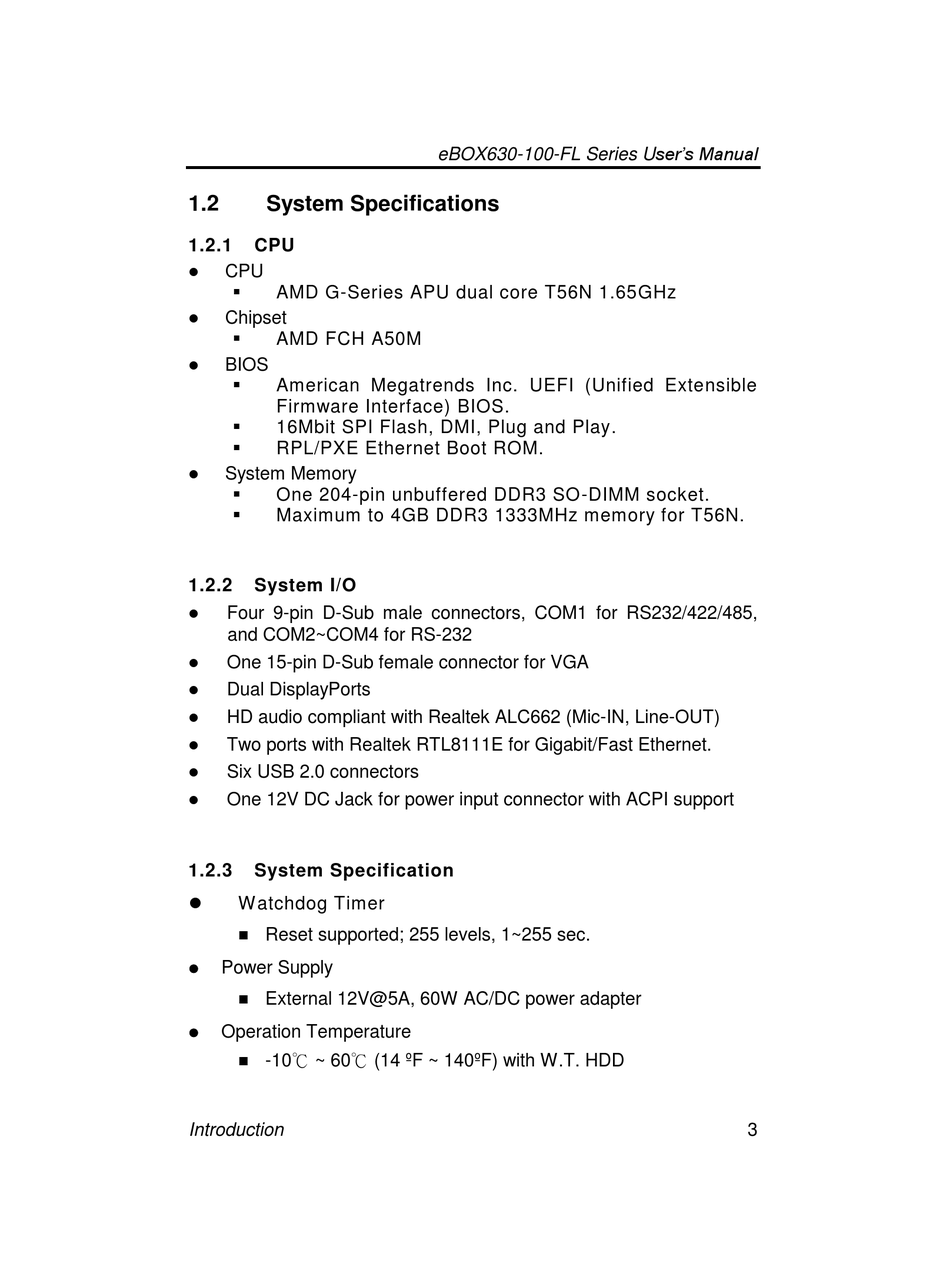

System Specifications

1.2.1

CPU

 CPU

AMD G-Series APU dual core T56N 1.65GHz
 Chipset

AMD FCH A50M
 BIOS

American Megatrends Inc. UEFI (Unified Extensible
Firmware Interface) BIOS.

16Mbit SPI Flash, DMI, Plug and Play.

RPL/PXE Ethernet Boot ROM.
 System Memory

One 204-pin unbuffered DDR3 SO-DIMM socket.

Maximum to 4GB DDR3 1333MHz memory for T56N.
1.2.2

System I/O

 Four 9-pin D-Sub male connectors, COM1 for RS232/422/485,
and COM2~COM4 for RS-232
 One 15-pin D-Sub female connector for VGA
 Dual DisplayPorts
 HD audio compliant with Realtek ALC662 (Mic-IN, Line-OUT)
 Two ports with Realtek RTL8111E for Gigabit/Fast Ethernet.
 Six USB 2.0 connectors
 One 12V DC Jack for power input connector with ACPI support
1.2.3

System Specification


W atchdog Timer
 Reset supported; 255 levels, 1~255 sec.
 Power Supply
 External 12V@5A, 60W AC/DC power adapter
 Operation Temperature
 -10℃ ~ 60℃ (14 ºF ~ 140ºF) with W.T. HDD
Introduction
eBOX630-100-FL Series User's Manual
3
