How to Connect a C-Nav3050 to the
C-NaviGator III

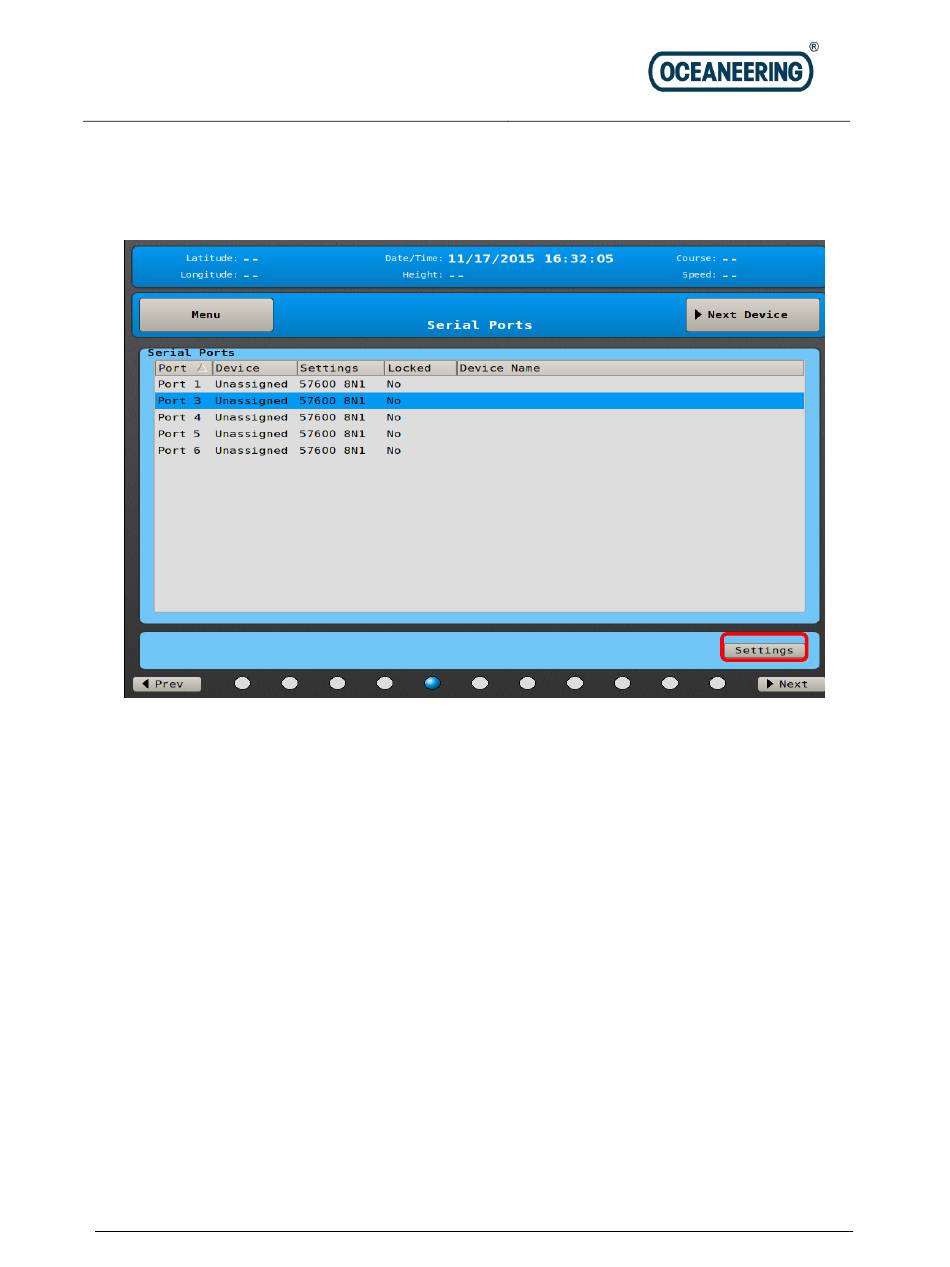

1. To add the device use the Ports menu found at:
Menu / Settings / Serial Ports
2. Press the Port the device is connected to the press on the Settings
button.
3. You then must assign the port you connected the serial cable into on the
C-NaviGator III. Assign the correct device type and baud rate for a
successful connection.
On the next page you will see the default settings for the C-Nav3050
receiver.
