How to Connect a C-Nav3050 to the
C-NaviGator III
7. Finally re-enable the port by setting Enabled to Yes, and then Apply.
®
The C-Nav3050
GNSS receiver is now set up ready to have a connection on
port 4361 with the IP address the DHCP server has assigned.
The C-NaviGator III now needs to be setup likewise.

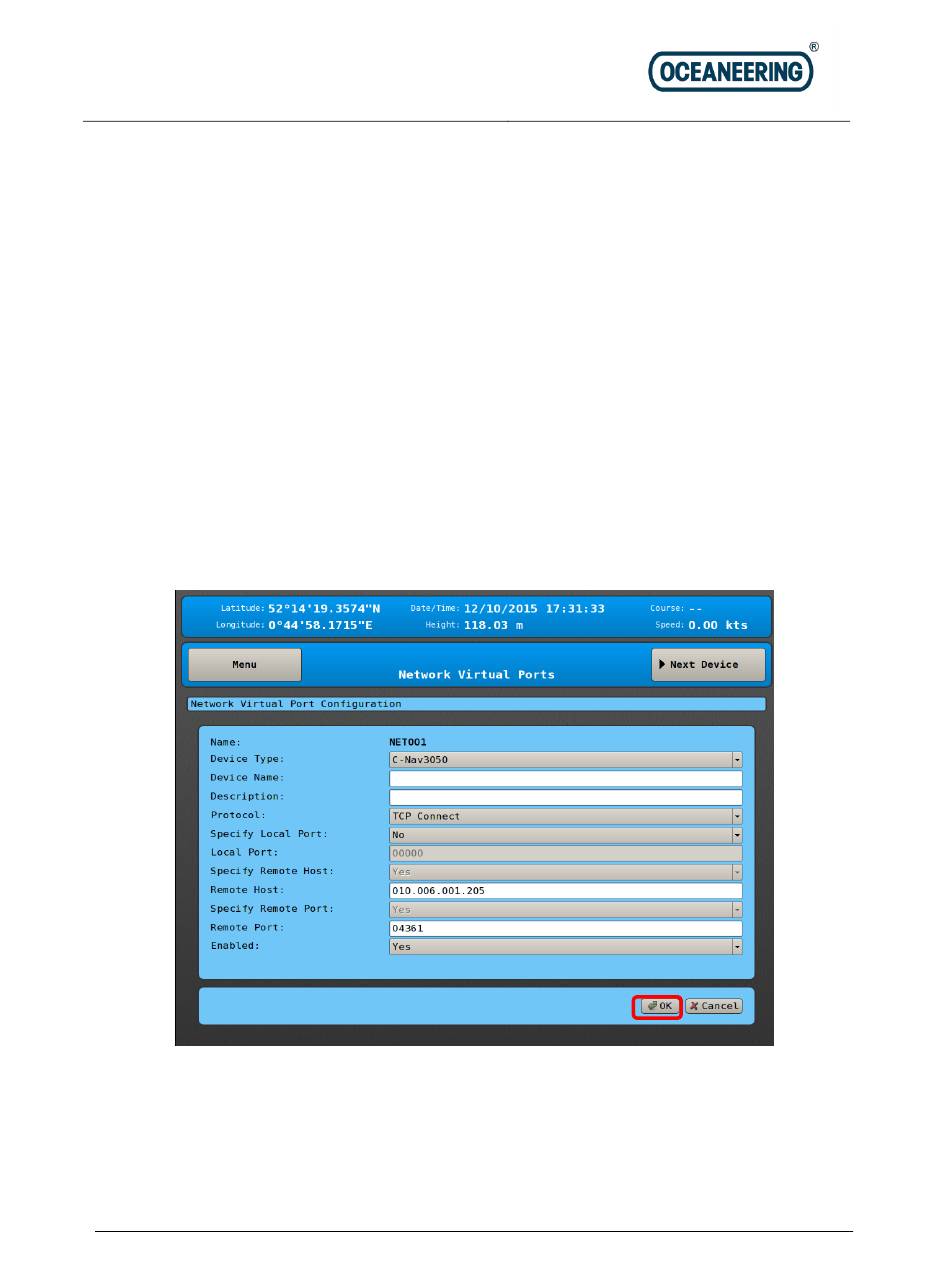

Menu / Settings / Network Virtual Ports
Following the above sample configuration, the Device Type, protocol and Specify
Local Port settings would remain as above in most situations. Please input the C-
Nav3050's IP in remote host, along with the remote port chosen earlier (for
further help see the next page).
Revision 3
Page 26 of 31
4/13/2017
