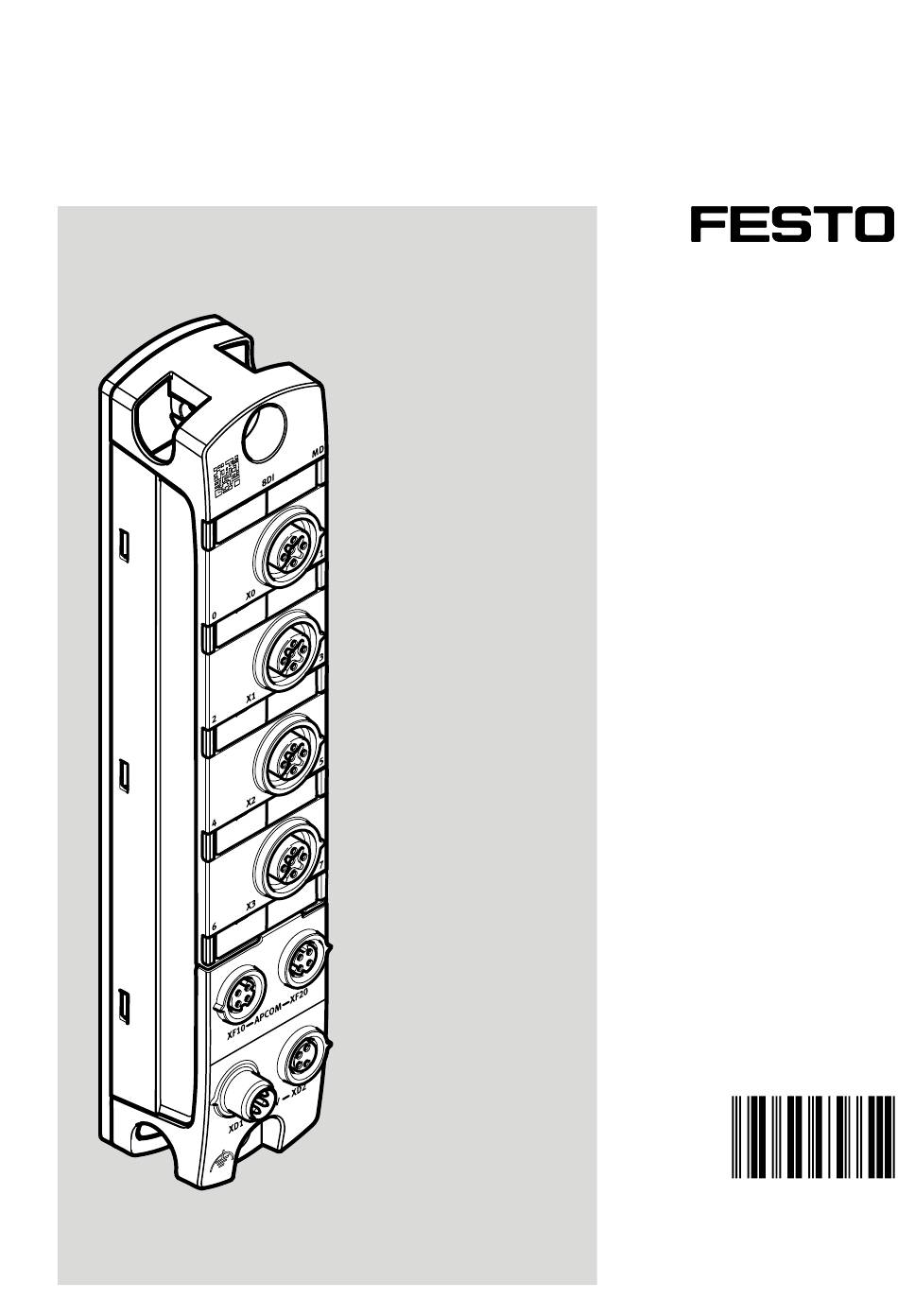

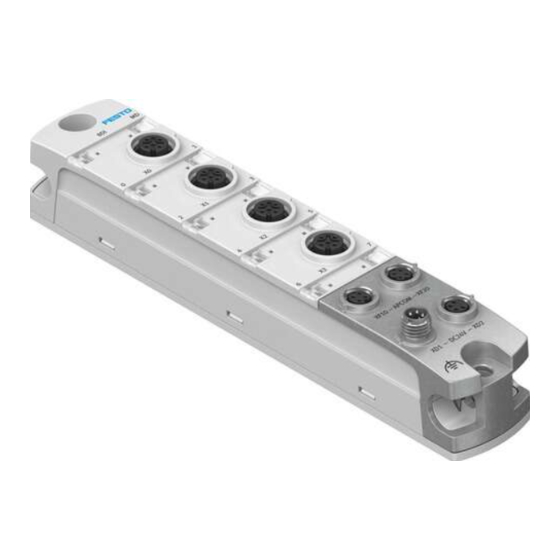

- Page 1 CPX-AP-I-8DI-M12-5P Digital input module Instructions | Operat- 8099675 8099675 2019-06 [8099677]...
- Page 2 Translation of the original instructions Festo — CPX-AP-I-8DI-M12-5P — 2019-06...
-
Page 3: Table Of Contents
Product design......................7 5.2.2 LED displays......................8 5.2.3 Connecting elements....................8 Assembly........................10 Installation........................10 Commissioning......................10 Parameterisation......................10 Diagnostics and fault clearance.................. 11 10.1 Diagnostic messages....................11 10.2 LED displays......................... 12 Disposal........................13 Technical data......................14 Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 4: About This Document
The product labelling is located on the right-hand side of the module. The Data Matrix code is on the connection side. Scanning the printed Data Matrix Code with an appropriate device opens the Festo Support Portal with the information appropriate for the product. Alternatively, the Product Key (11-digit alphanumeric code on the product labelling) can be entered in the search field of the Support Portal è www.festo.com/sp. -
Page 5: Specified Standards
Installation, commissioning, maintenance and disassembly should only be conducted by qualified per- sonnel. The qualified personnel must be familiar with installation of electrical control systems. Additional information – Accessories è www.festo.com/catalogue. Service Contact your regional Festo contact person if you have technical questions è www.festo.com. Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 6: Product Overview
After the elimination of the short circuit or the overload, the sensor supply is switched on again automatically. The electronic fuse of the module is slow-blowing. Sensors can therefore also be connected with a temporarily higher current requirement. Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 7: Configuration
9 Mounting interface, lateral bottom and connection for functional earth FE 10 Connection for power supply [XD1] 11 Connection for system communication [XF10] 12 Inscription label (optional) 13 Mounting interface, lateral top Fig. 1 Product design Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 8: Led Displays
5.2.3 Connecting elements Connection for power supply [XD1] Plug M8, 4-pin, A-coded Signal +24 V DC logic supply PS 0 V DC load supply PL 0 V DC logic supply PS +24 V DC load supply PL Tab. 4 Connection for power supply Festo — CPX-AP-I-8DI-M12-5P — 2019-06... - Page 9 Tab. 7 Connection for system communication Connection for inputs [X0] … [X3] Socket M12, 5-pin, A-coded Signal +24 V DC inputs Input 1, 3, 5, 7 0 V DC inputs Input 0, 2, 4, 6 Functional earth FE Tab. 8 Connection for inputs Festo — CPX-AP-I-8DI-M12-5P — 2019-06...
-
Page 10: Assembly
Write access to the parameters is typically performed by the higher-level controller using the device descriptions specific to the host system. Parameter Instance- Data Access Arraysize type – Part number UINT32 – Fieldbus serial number UINT32 Product key CHAR Firmware version CHAR – 20000 Module code UINT32 Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 11: Diagnostics And Fault Clearance
Error 02 01 0017 Overvoltage in logic Overvoltage in the logic supply PS 24 V DC detected. (33619991) supply PS 24 V DC Remedy – Check logic supply PS. Diagnost- Error ic status Tab. 11 Diagnostic messages Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 12: Led Displays
PL Illuminated red – Module ramp-up not yet completed. System communication not yet initial- ised. LED flashes red quickly – Module identification (service function) Flashes quickly green Tab. 12 LED module diagnostics [MD] Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 13: Disposal
Logic 1 at input Illuminated – Input inactive (logic 0) Logic 0 at input Tab. 13 LED status of input Disposal ENVIRONMENT! Send the packaging and product for environmentally sound recycling in accordance with the current regulations è www.festo.com/sp. Festo — CPX-AP-I-8DI-M12-5P — 2019-06... -
Page 14: Technical Data
SELV/PELV circuits tric shock (protection (safe extra-low voltage/protected extra-low voltage) against direct and indirect contact in accordance with IEC 61010-1) Electromagnetic com- See declaration of conformity www.festo.com è patibility Mounting position Tab. 14 General technical data Festo — CPX-AP-I-8DI-M12-5P — 2019-06... - Page 15 Logic supply PS [V DC] 24 25 % ± Intrinsic current con- [mA] Typ. 32 sumption at nominal operating voltage 24 V from PS Diagnostic message, [V DC] 18 < undervoltage in logic supply PS Tab. 15 Power supply Festo — CPX-AP-I-8DI-M12-5P — 2019-06...
- Page 16 Not permissible between 0 V SEN external and 0 V SEN internal Sensor power supply short circuit protection Short-circuit protection Electronic Trigger level 1.8 > Characteristic Slow-blowing Behaviour after end of Automatic return overload Tab. 16 Digital inputs Festo — CPX-AP-I-8DI-M12-5P — 2019-06...
- Page 18 Copyright: Festo SE & Co. KG Ruiter Straße 82 73734 Esslingen Germany Reproduction, distribution or sale of this document or communic- Phone: ation of its contents to others without express authorization is +49 711 347-0 prohibited. Offenders will be liable for damages. All rights...
