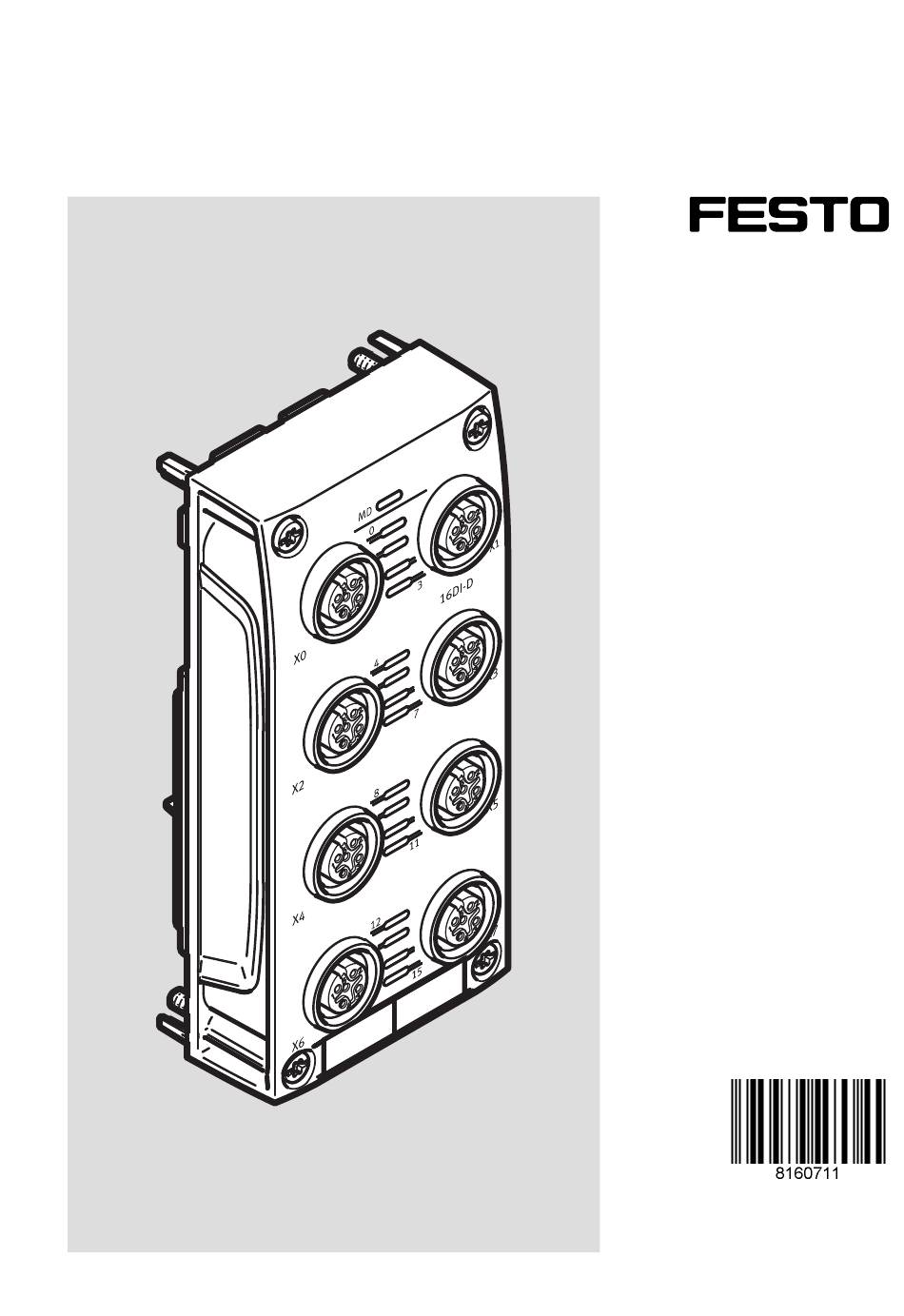

- Page 1 CPX-AP-A-16DI-D-M12-5P Digital input module Operating instruc- tions 8160711 2022-07 [8160713]...
- Page 2 Translation of the original instructions...
-
Page 3: Table Of Contents
Technical data ..............13 Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... -
Page 4: About This Document
The product labelling and the Data Matrix Code are printed on the housings of the modules. Scanning the Data Matrix Code with an appropriate device opens the Festo Internet page with documents appropriate for the product. Alternatively, the Product Key (11-digit alphanumeric code on the product labelling) can be entered in the search field è... -
Page 5: Safety
The qualified personnel have skills and experience in dealing with electrical (open-loop) control technology. Additional information – Contact the regional Festo contact if you have technical problems è www.festo.com. – Accessories and spare parts è www.festo.com/catalogue. Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... -
Page 6: Product Overview
Connection for inputs 6, 7 [X3] Connection for inputs 8, 9 [X4] Connection for inputs 10, 11 [X5] Connection for inputs 12, 13 [X6] Connection for inputs 14, 15 [X7] Inscription label (optional) Fig. 1: Product design Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... -
Page 7: Led Displays
Input: 0, 2, 4, 6, 8, 10, 12, 14 Functional earth FE Tab. 4: Connection for inputs Digital and analogue signal lines Max. cable length 30 m Tab. 5: Requirements for the connecting cable Function The module provides 16 digital inputs. Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... -
Page 8: Digital Inputs
[MD] green light Tab. 6: Response of the LED displays of the module after error-free commissioning Information on troubleshooting in the event of incorrect response: è 9 Diagnostics and fault clearance è 1.1 Applicable documents Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... -
Page 9: Parameterisation
– Check sensor cable. Diag- Error nostic status 02 | 01 | 0016 Undervoltage in logic Undervoltage in logic supply (PS) 24 V DC (33619990) supply (PS) 24 V DC – Check power supply. Remedy Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... - Page 10 – Check wiring. Diag- Error nostic status 08 | 01 | 01A2 Device in System The system initialization (module recognition) failed. The (134283682) State Emergency system is in maintenance mode. No I/O function is avail- Operation able. Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07...
- Page 11 Description – Restart system 08 | 01 | 01A2 Device in System Remedy – Update firmware to latest version (134283682) State Emergency – Contact Festo service Operation Diag- Error nostic status Tab. 8: Diagnostic messages Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07...
-
Page 12: Led Displays
PS red light Module ramp-up not yet completed. – System communication not yet initial- ised. flashing red 2 Hz Module identification (service function) – flashing green 2 Hz Tab. 9: LED module diagnostics [MD] Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... -
Page 13: Technical Data
By the use of SELV/PELV circuits tion against direct and indirect contact (Safe extra-low voltage/Protected extra-low voltage) in accordance with IEC 60204-1 and IEC 60364-4-41) Electromagnetic compatibility See declaration of conformity è www.festo.com Mounting position Tab. 11: General technical data Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07... - Page 14 [V DC] 24 ± 25% Intrinsic current consump- [mA] Typically 40 tion at nominal operating voltage 24 V from PS < 18 Diagnostics message, under- [V DC] voltage in logic supply PS Tab. 12: Power supply Festo — CPX-AP-A-16DI-D-M12-5P — 2022-07...
