Industrial Electronic Devices
User Manual
Revision 1.000
English
BACnet Slave / PROFINET Master -
Converter
(Order Code: HD67B81-IP-A1, HD67B81-MSTP-A1,
HD67B81-MSTP-B2)
for Website information:
www.adfweb.com/?Product=HD67B81
for Price information:
www.adfweb.com/?Price=HD67B81-IP-A1
www.adfweb.com/?Price=HD67B81-MSTP-A1
www.adfweb.com/?Price=HD67B81-MSTP-B2
Benefits and Main Features:
Triple electrical isolation
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual BACnet Slave / PROFINET Master
Document code: MN67B81_ENG
For others PROFINET Master devices, see also the following links:
PROFINET Master from/to ...
www.adfweb.com?Product=HD67B45
www.adfweb.com?Product=HD67B70
www.adfweb.com?Product=HD67B71
www.adfweb.com?Product=HD67B72
www.adfweb.com?Product=HD67B73
www.adfweb.com?Product=HD67B74
www.adfweb.com?Product=HD67B75
www.adfweb.com?Product=HD67B76
www.adfweb.com?Product=HD67B77
www.adfweb.com?Product=HD67B78
www.adfweb.com?Product=HD67B79
www.adfweb.com?Product=HD67B80
www.adfweb.com?Product=HD67B82
www.adfweb.com?Product=HD67B84
Do you have an your customer protocol?
See the following links:
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
INFO:
www.adfweb.com
Revision 1.000
Page 1 of 32
(OPC UA Server)
(Serial)
(Modbus Slave)
(PROFIBUS Slave)
(CAN)
(CANopen)
(DeviceNet Slave)
(Modbus TCP Slave)
(SNMP Agent)
(EtherNet/IP Slave)
(KNX)
(MQTT)
(IEC 61850 Server)
(Ethernet)
Phone +39.0438.30.91.31
Advertisement
Table of Contents
Related Manuals for ADF Web HD67B81-IP-A1
Summary of Contents for ADF Web HD67B81-IP-A1

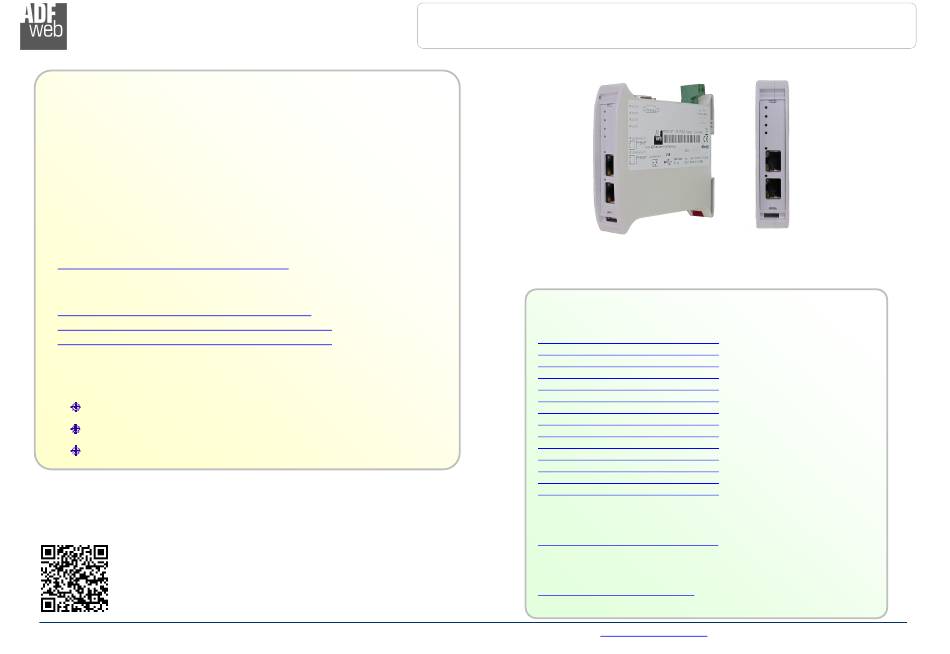

- Page 1 Page 1 of 32 Industrial Electronic Devices User Manual Revision 1.000 English BACnet Slave / PROFINET Master - Converter (Order Code: HD67B81-IP-A1, HD67B81-MSTP-A1, HD67B81-MSTP-B2) for Website information: www.adfweb.com/?Product=HD67B81 for Price information: For others PROFINET Master devices, see also the following links: www.adfweb.com/?Price=HD67B81-IP-A1 www.adfweb.com/?Price=HD67B81-MSTP-A1...
-
Page 2: Updated Documentation
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 2 of 32 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you that you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 3 of 32 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 4 of 32 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 5: Connection Scheme
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 5 of 32 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67B81-IP-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 6 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 6 of 32 Industrial Electronic Devices Figure 1b: Connection scheme for HD67B81-MSTP-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 7 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 7 of 32 Industrial Electronic Devices Figure 1c: Connection scheme for HD67B81-MSTP-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
- Page 8 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 8 of 32 Industrial Electronic Devices CHARACTERISTICS: The HD67B81-xxx-A1/B2 is a BACnet Slave / PROFINET Master converter. It allows the following characteristics: Triple isolation between RS485 - Power Supply, RS485 - Ethernet, Ethernet - Power Supply; Up to 1500 bytes in reading and 1500 bytes in writing;...
-
Page 9: Power Supply
The devices can be powered between a wide range of tensions. For more details see the two tables below. Vmin Vmax Vmin Vmax HD67B81-xxx-A1/B2 Consumption at 24V DC: Device W/VA HD67B81-xxx-A1/B2 Caution: Not reverse the polarity power HD67B81-IP-A1 HD67B81-MSTP-B2 HD67B81-MSTP-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... -
Page 10: Function Modes
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 10 of 32 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’: The first, with Dip1 in Off position (factory setting), is used for the normal working of the device. The second, with Dip1 in On position, is used for upload the Project/Firmware. - Page 11 Revision 1.000 Page 11 of 32 Industrial Electronic Devices LEDS (for HD67B81-IP-A1): The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below.
- Page 12 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 12 of 32 Industrial Electronic Devices LEDS (for HD67B81-MSTP-A1/B2): The device has got four LEDs (five the –B2 version) that are used to give information about the functioning status. The various meanings of the LEDs are described in the table below.
- Page 13 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 13 of 32 Industrial Electronic Devices ETHERNET: The Ethernet connection must be made using Connector3 of HD67B81-xxx-A1/B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m.
- Page 14 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 14 of 32 Industrial Electronic Devices RS485 (HD67B81-MSTP-A1/B2): To terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet).
- Page 15 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 15 of 32 Industrial Electronic Devices USE OF COMPOSITOR SW67B81: To configure the Converter, use the available software that runs with Windows called SW67B81. It is downloadable on the site www.adfweb.com and its operation is described in this document.
-
Page 16: New Configuration / Open Configuration
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 16 of 32 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a programmable “BACnet Slave / PROFINET Master - Converter”... -
Page 17: Software Options
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 17 of 32 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. In the section “Language”... - Page 18 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 18 of 32 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 19: Set Communication
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 19 of 32 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, BACnet and PROFINET. By Pressing the “Set Communication” button from the main window for SW67B81 (Fig. - Page 20 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 20 of 32 Industrial Electronic Devices If selected “BACnet MS/TP”, the means of the fields for “BACnet” are: In the field “Baudrate” the baudrate of the BACnet line is defined; In the field “Parity”...
- Page 21 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 21 of 32 Industrial Electronic Devices PROFINET ACCESS: By Pressing the “PROFINET Access” button from the main window for SW67B81 (Fig. 2) the window “Definition of PROFINET Devices Present in Network”...
- Page 22 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 22 of 32 Industrial Electronic Devices The means of the fields below are: In the field “Name of Station” is checked, the name of the PROFINET slave is defined; In the field “IP Address”...
- Page 23 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 23 of 32 Industrial Electronic Devices By clicking on “Modules” button, it is possible to import the modules for the selected PROFINET slave device. The window “Definition Module and/or Submodules of PROFINET Device”...
- Page 24 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 24 of 32 Industrial Electronic Devices SET BACNET ACCESS: By Pressing the “Set BACnet Access” button from the main window for SW67B81 (Fig. 2) the window “BACnet Set Access” appears (Fig. 6). The window is divided in two parts, the “BACnet in Read”...
- Page 25 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 25 of 32 Industrial Electronic Devices It is possible to insert directly the Unit (using its unique number) by compiling the “Selected BACnet Engineering Unit” field; or by selecting with the fields “Select the Type”...
-
Page 26: Update Device
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 26 of 32 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 27 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 27 of 32 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67B81 device. Warning: If Fig.
-
Page 28: Mechanical Dimensions
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 28 of 32 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 10a: Mechanical dimensions scheme for HD67B81-IP-A1 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31... - Page 29 User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 29 of 32 Industrial Electronic Devices Figure 10b: Mechanical dimensions scheme for HD676B81-MSTP-A1 Figure 10c: Mechanical dimensions scheme for HD67B81-MSTP-B2 ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31...
-
Page 30: Ordering Informations
BACnet type IP: BACnet/IP MSTP: BACnet MS/TP Device Family HD67B81: BACnet Slave / PROFINET Master - Converter Order Code: HD67B81-IP-A1 BACnet/IP Slave / PROFINET Master – Converter Order Code: HD67B81-MSTP-A1 BACnet MS/TP Slave / PROFINET Master – Converter Order Code: HD67B81-MSTP-B2... -
Page 31: Other Regulations And Standards
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 31 of 32 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 32: Warranties And Technical Support
User Manual BACnet Slave / PROFINET Master Document code: MN67B81_ENG Revision 1.000 Page 32 of 32 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
