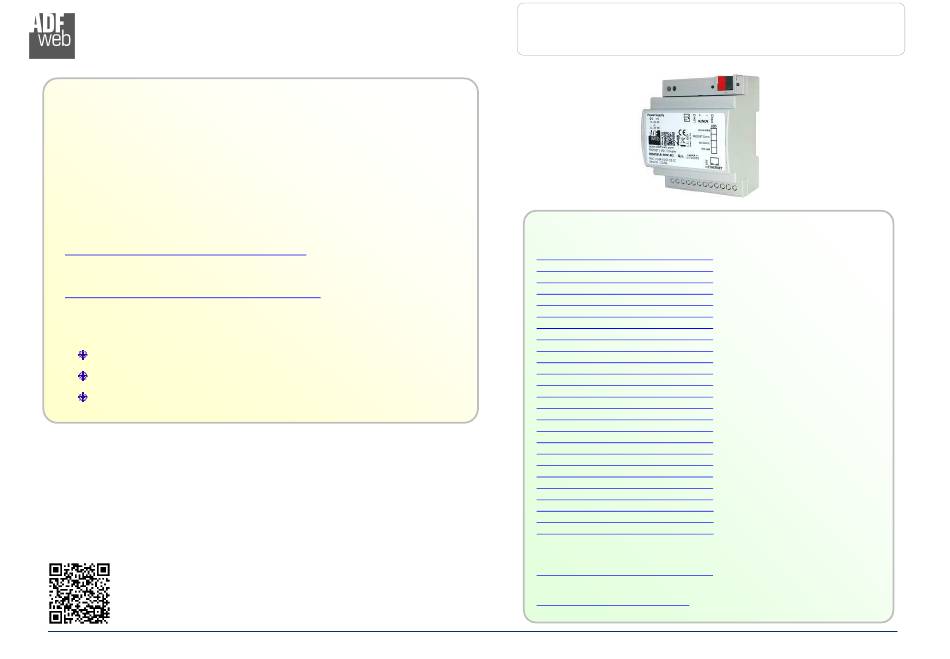

Industrial Electronic Devices
User Manual
Revision 1.000
English

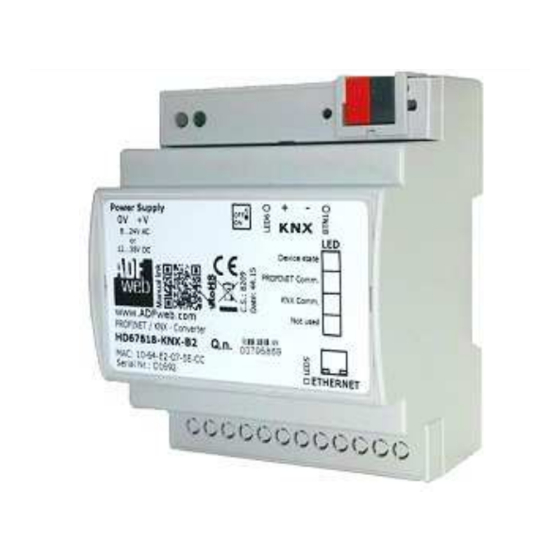

EtherNet/IP Master / KNX- Converter
(Order Code: HD67806-KNX-B2)
For Website information:
www.adfweb.com?Product=HD67806-B2
For Price information:
www.adfweb.com?Price=HD67806-KNX-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual EtherNet/IP Master / KNX - Converter
Document code: MN67806_ENG
For others KNX products, see also the following links:
Converter KNX to
www.adfweb.com?Product=HD67746
www.adfweb.com?Product=HD67773
www.adfweb.com?Product=HD67801
www.adfweb.com?Product=HD67802
www.adfweb.com?Product=HD67803
www.adfweb.com?Product=HD67804
www.adfweb.com?Product=HD67807
www.adfweb.com?Product=HD67808
www.adfweb.com?Product=HD67809
www.adfweb.com?Product=HD67810
www.adfweb.com?Product=HD67811
www.adfweb.com?Product=HD67812
www.adfweb.com?Product=HD67813
www.adfweb.com?Product=HD67814
www.adfweb.com?Product=HD67815
www.adfweb.com?Product=HD67818
www.adfweb.com?Product=HD67820
www.adfweb.com?Product=HD67821
www.adfweb.com?Product=HD67822
www.adfweb.com?Product=HD67825
www.adfweb.com?Product=HD67830
www.adfweb.com?Product=HD67947
www.adfweb.com?Product=HD67B18
www.adfweb.com?Product=HD67B41
www.adfweb.com?Product=HD67B79
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 25
(IEC 61850 Server)
(IEC 61850 Client)
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(EtherNet/IP Slave)
(DeviceNet Master)
(DeviceNet Slave)
(J1939)
(M-Bus Master/wM-Bus)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(PROFINET slave)
(SNMP)
(DMX)
(DALI)
(Ethernet)
(NMEA 2000)
(MQTT)
(OPC UA Client)
(OPC UA Server)
(PROFINET Master)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67806-KNX-B2
Summary of Contents for ADF Web HD67806-KNX-B2
- Page 1 Page 1 of 25 Industrial Electronic Devices User Manual Revision 1.000 English EtherNet/IP Master / KNX- Converter (Order Code: HD67806-KNX-B2) For others KNX products, see also the following links: For Website information: Converter KNX to www.adfweb.com?Product=HD67806-B2 www.adfweb.com?Product=HD67746 (IEC 61850 Server) www.adfweb.com?Product=HD67773...
-
Page 2: Table Of Contents
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 2 of 25 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 3 of 25 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 4 of 25 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 5 of 25 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67806-KNX-B2 ADFweb.com S.r.l. -
Page 6: Characteristics
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 6 of 25 Industrial Electronic Devices CHARACTERISTICS: The HD67806-KNX is a EtherNet/IP Master / KNX Converter. It allows the following characteristics: Electrical isolation between Ethernet and KNX; Mountable on 35mm Rail DIN;... -
Page 7: Power Supply
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC: Device Consumption [W/VA] HD67806-KNX-B2 Caution: Not reverse the polarity power HD67806-KNX-B2 ADFweb.com S.r.l. -
Page 8: Function Modes
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 8 of 25 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 9 of 25 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Knx
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 10 of 25 Industrial Electronic Devices KNX: KNX is the standard that allows the automated and decentralized management of the technologic plans of a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on. KNX can be used in all the applications and functions for the building automations: from lighting to control dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and alarms, to energy management and so on. -
Page 11: Ethernet
The Ethernet port is used for programming the device and for EtherNet/IP communication. The Ethernet connection must be made using Connector2 of HD67806-KNX-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable. -
Page 12: Use Of Compositor Sw67806
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 12 of 25 Industrial Electronic Devices USE OF COMPOSITOR SW67806: To configure the Converter, use the available software that runs with Windows called SW67806. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 13: New Configuration / Open Configuration
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 13 of 25 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “EtherNet/IP Master / KNX - Converter”... -
Page 14: Software Options
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 14 of 25 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 15 of 25 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.
-
Page 16: Set Communication
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 16 of 25 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, KNX and EtherNet/IP. By Pressing the “Set Communication” button from the main window for SW67806 (Fig. -
Page 17: Ethernet/Ip Access
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 17 of 25 Industrial Electronic Devices ETHERNET/IP ACCESS: By Pressing the “EtherNet/IP Access” button from the main window for SW67806 (Fig. 2) the window “Set EtherNet/IP Slaves Access” appears (Fig. -
Page 18: Knx Access
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 18 of 25 Industrial Electronic Devices KNX ACCESS: By pressing the “KNX Access” button from the main window for SW67806 (Fig. “KNX Access” window appears (Fig. 5). The means of the fields are: If the field “Enable”... - Page 19 User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 19 of 25 Industrial Electronic Devices In the field “Position” insert the address of the internal array where placing the information; In the field “Bit Mode” insert the start bit of the first byte of the field “Position” where start to insert the data read; In the field “Lenght”...
-
Page 20: Update Device
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 20 of 25 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 21 User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 21 of 25 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67806 device. Warning: If Fig.
-
Page 22: Mechanical Dimensions
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 22 of 25 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67806-KNX-B2 ADFweb.com S.r.l. -
Page 23: Ordering Informations
Enclosure Type B: 4M, 35mm DIN Rail mounting Device Family HD67806-KNX: EtherNet/IP Master / KNX - Converter Order Code: HD67806-KNX-B2 EtherNet/IP Master / KNX – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 24: Disclaimer
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 24 of 25 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 25: Warranties And Technical Support
User Manual EtherNet/IP Master / KNX - Converter Document code: MN67806_ENG Revision 1.000 Page 25 of 25 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following:...
