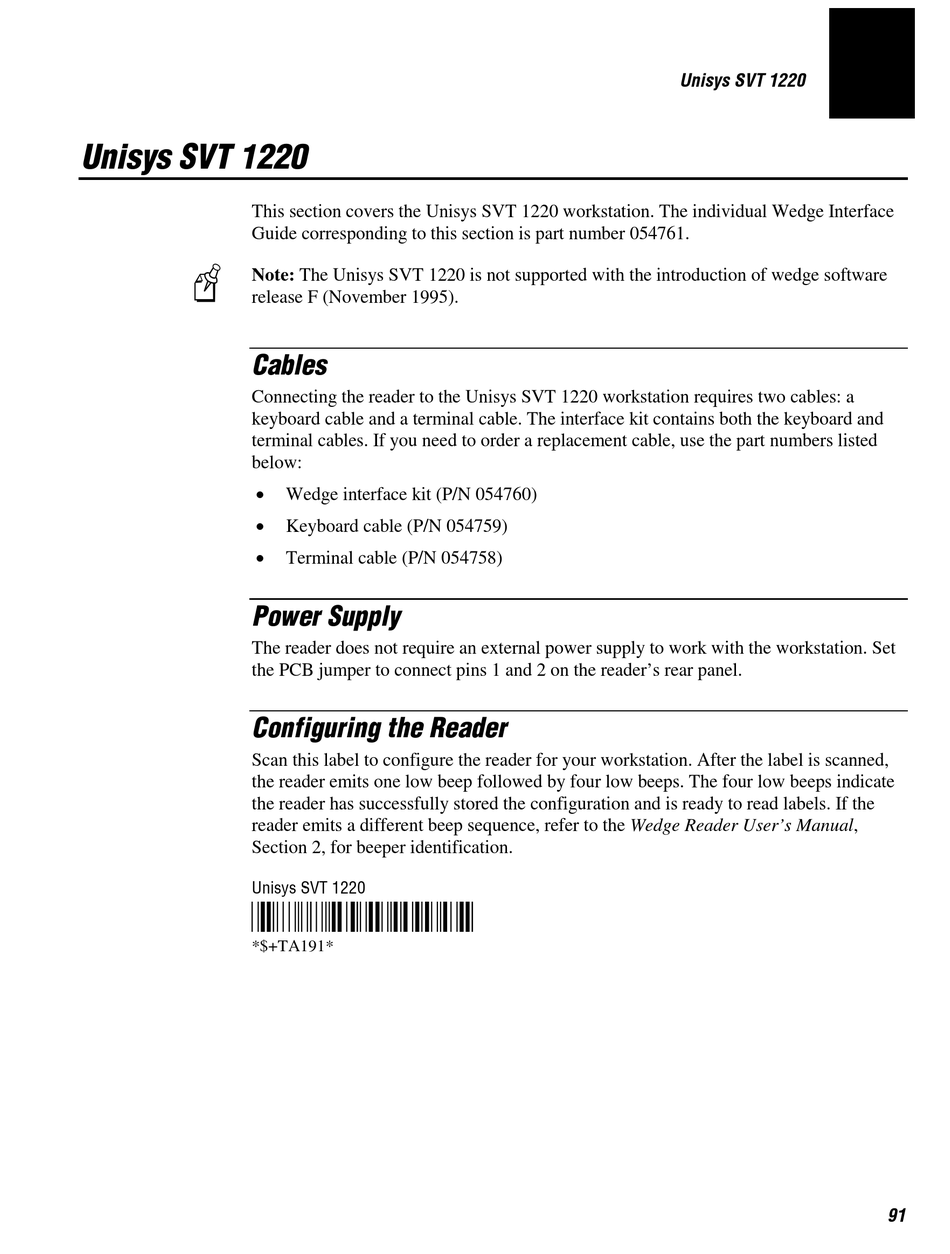

Unisys SVT 1220

This section covers the Unisys SVT 1220 workstation. The individual Wedge Interface
Guide corresponding to this section is part number 054761.
Note: The Unisys SVT 1220 is not supported with the introduction of wedge software
release F (November 1995).
Cables
Connecting the reader to the Unisys SVT 1220 workstation requires two cables: a
keyboard cable and a terminal cable. The interface kit contains both the keyboard and
terminal cables. If you need to order a replacement cable, use the part numbers listed
below:
•
•
•
Power Supply
The reader does not require an external power supply to work with the workstation. Set
the PCB jumper to connect pins 1 and 2 on the reader's rear panel.
Configuring the Reader
Scan this label to configure the reader for your workstation. After the label is scanned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User's Manual,
Section 2, for beeper identification.
Unisys SVT 1220
*$+TA191*
*$+TA191*
Wedge interface kit (P/N 054760)
Keyboard cable (P/N 054759)
Terminal cable (P/N 054758)
C d 39
Unisys SVT 1220
91
