AT&T 615 and 65XX Series
To Set Workstation Configuration to
AT&T 615
AT&T 6518, 6578
AT&T 6528
AT&T 6529
AT&T 6538
AT&T 6539
AT&T 6579
2
C d 39

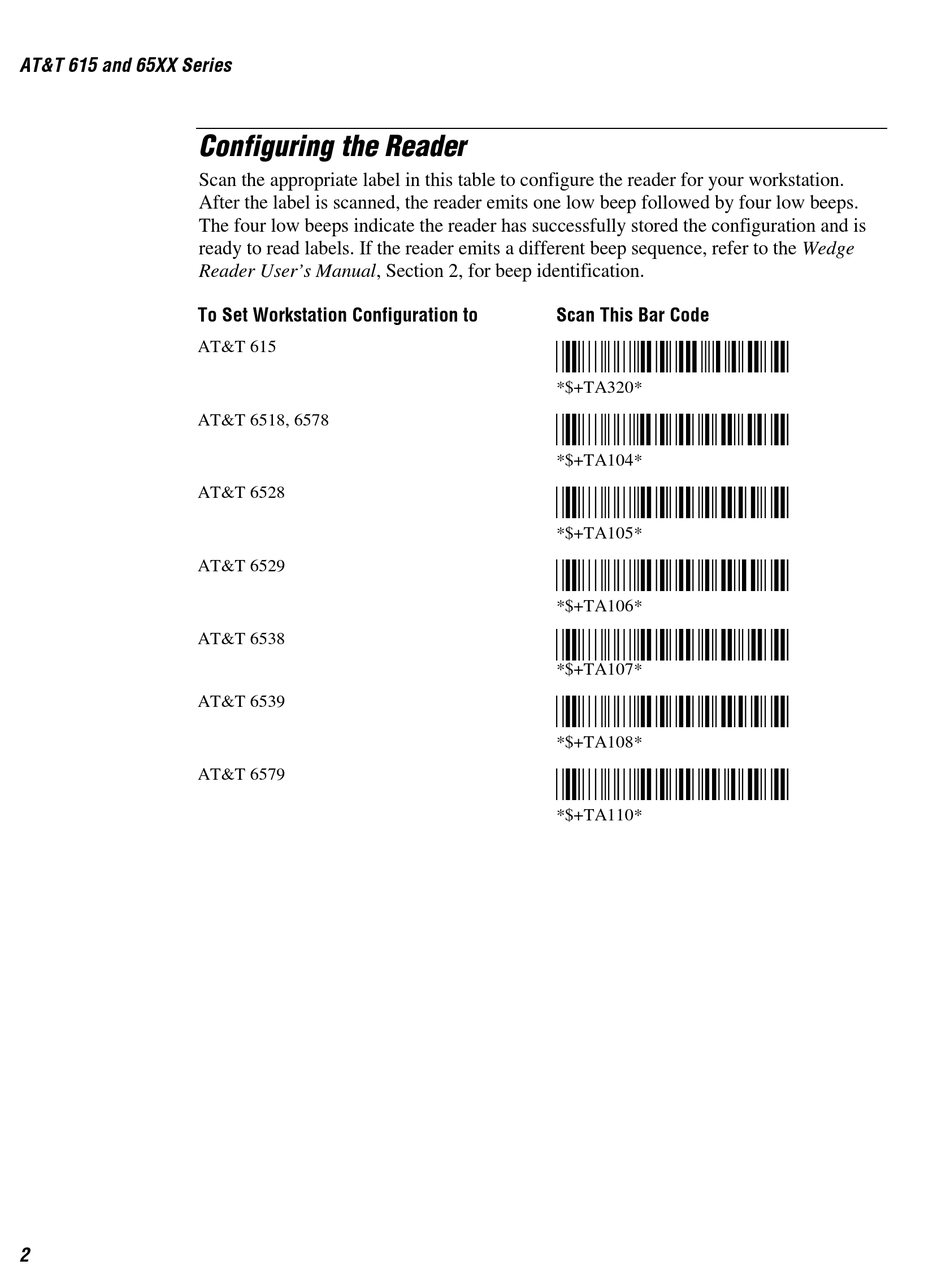

Configuring the Reader
Scan the appropriate label in this table to configure the reader for your workstation.
After the label is scanned, the reader emits one low beep followed by four low beeps.
The four low beeps indicate the reader has successfully stored the configuration and is
ready to read labels. If the reader emits a different beep sequence, refer to the Wedge
Reader User's Manual, Section 2, for beep identification.
Scan This Bar Code
*$+TA320*
*$+TA320*
*$+TA104*
*$+TA104*
*$+TA105*
*$+TA105*
*$+TA106*
*$+TA106*
*$+TA107*
*$+TA107*
*$+TA108*
*$+TA108*
*$+TA110*
*$+TA110*
