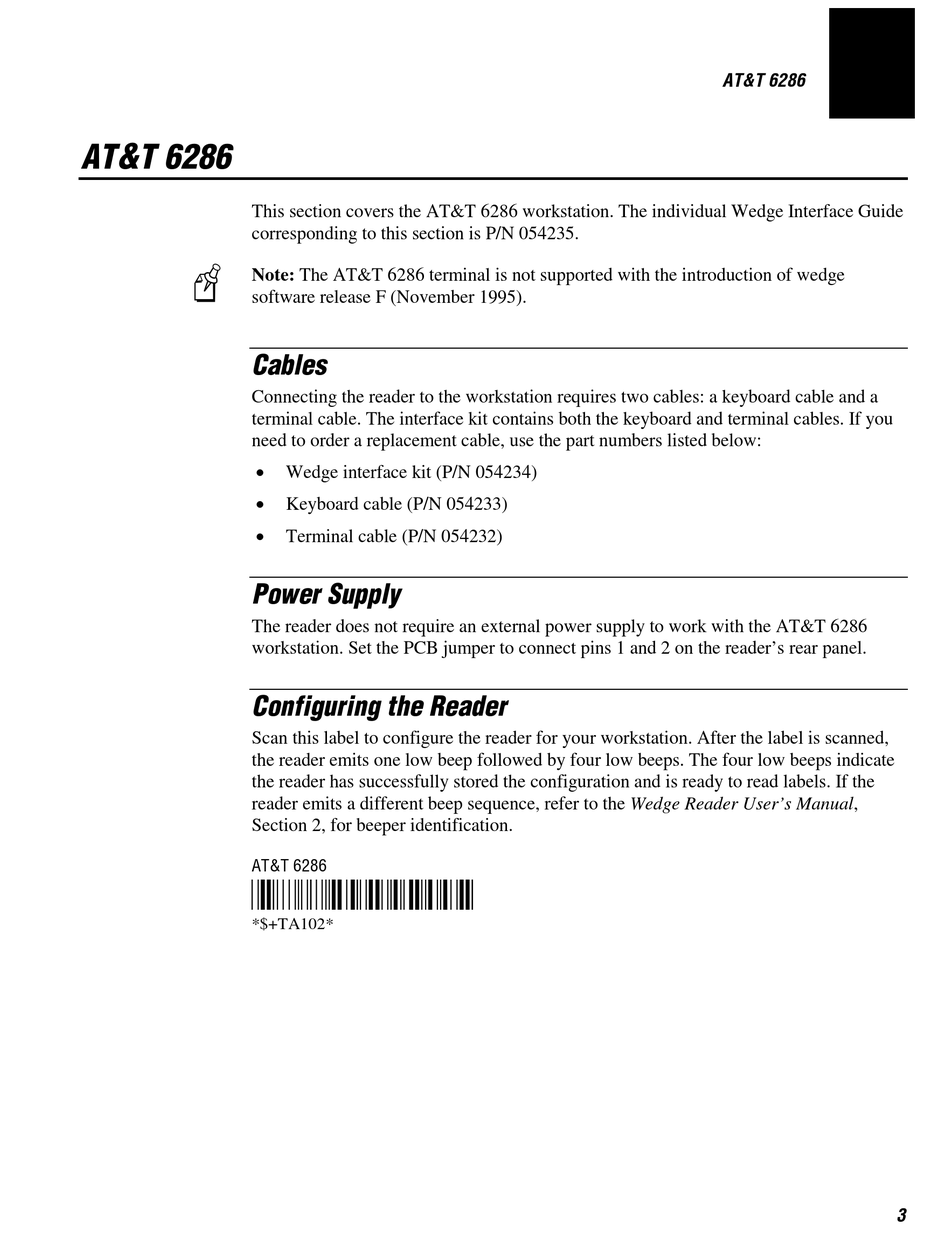

AT&T 6286
This section covers the AT&T 6286 workstation. The individual Wedge Interface Guide
corresponding to this section is P/N 054235.
Note: The AT&T 6286 terminal is not supported with the introduction of wedge
software release F (November 1995).
Cables
Connecting the reader to the workstation requires two cables: a keyboard cable and a
terminal cable. The interface kit contains both the keyboard and terminal cables. If you
need to order a replacement cable, use the part numbers listed below:
•
•
•
Power Supply
The reader does not require an external power supply to work with the AT&T 6286
workstation. Set the PCB jumper to connect pins 1 and 2 on the reader's rear panel.
Configuring the Reader
Scan this label to configure the reader for your workstation. After the label is scanned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User's Manual,
Section 2, for beeper identification.
AT&T 6286
*$+TA102*
*$+TA102*
Wedge interface kit (P/N 054234)
Keyboard cable (P/N 054233)
Terminal cable (P/N 054232)
C d 39
AT&T 6286
3
