Intermec MicroBar 9710 Reference Manual page 83

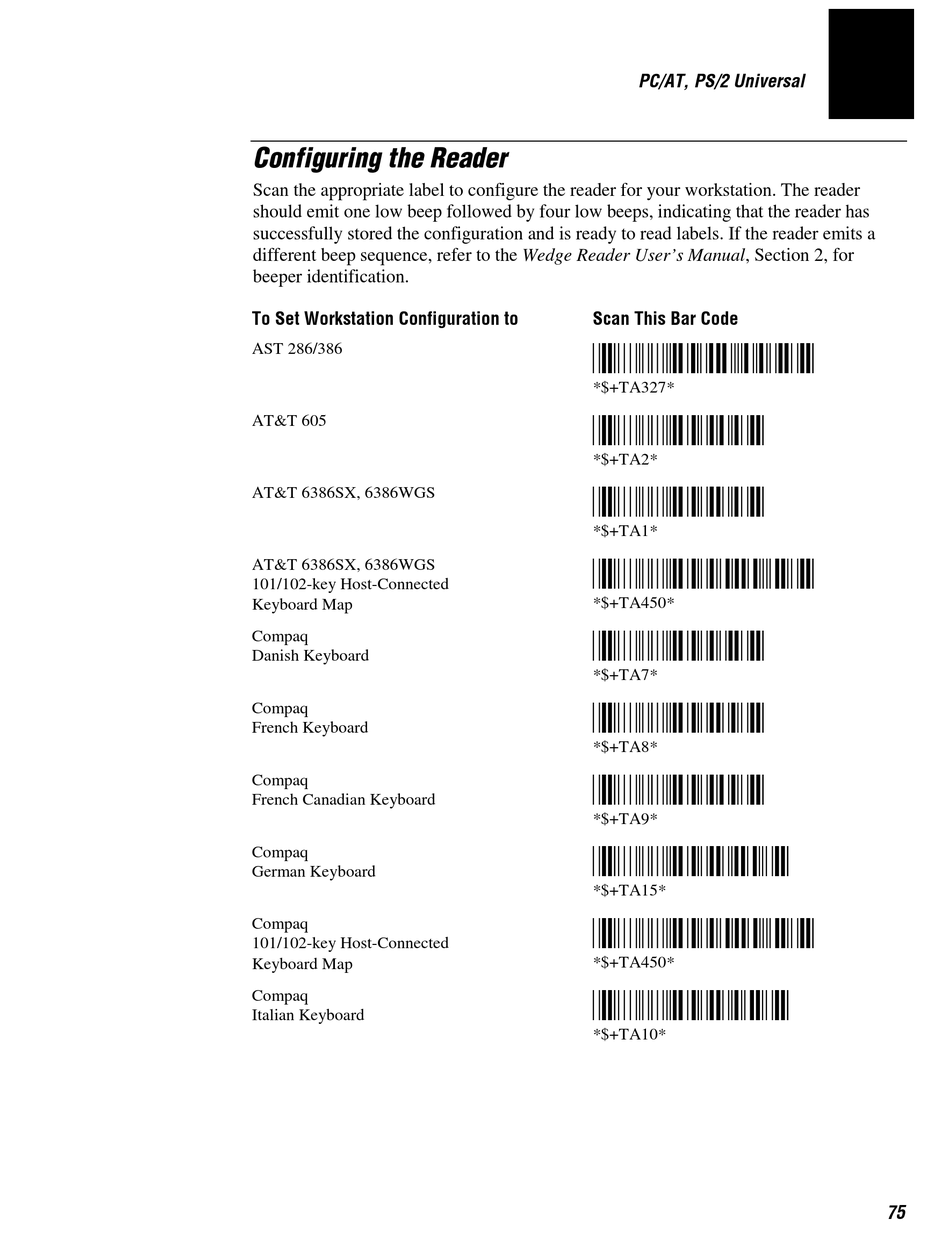

Configuring the Reader
Scan the appropriate label to configure the reader for your workstation. The reader
should emit one low beep followed by four low beeps, indicating that the reader has
successfully stored the configuration and is ready to read labels. If the reader emits a
different beep sequence, refer to the Wedge Reader User's Manual, Section 2, for
beeper identification.
To Set Workstation Configuration to
AST 286/386
AT&T 605
AT&T 6386SX, 6386WGS
AT&T 6386SX, 6386WGS
101/102-key Host-Connected
Keyboard Map
Compaq
Danish Keyboard
Compaq
French Keyboard
Compaq
French Canadian Keyboard
Compaq
German Keyboard
Compaq
101/102-key Host-Connected
Keyboard Map
Compaq
Italian Keyboard
C d 39
PC/AT, PS/2 Universal
Scan This Bar Code
*$+TA327*
*$+TA327*
*$+TA2*
*$+TA2*
*$+TA1*
*$+TA1*
*$+TA450*
*$+TA450*
*$+TA7*
*$+TA7*
*$+TA8*
*$+TA8*
*$+TA9*
*$+TA9*
*$+TA15*
*$+TA15*
*$+TA450*
*$+TA450*
*$+TA10*
*$+TA10*
75
