Bull Questar 210

Bull Questar 210

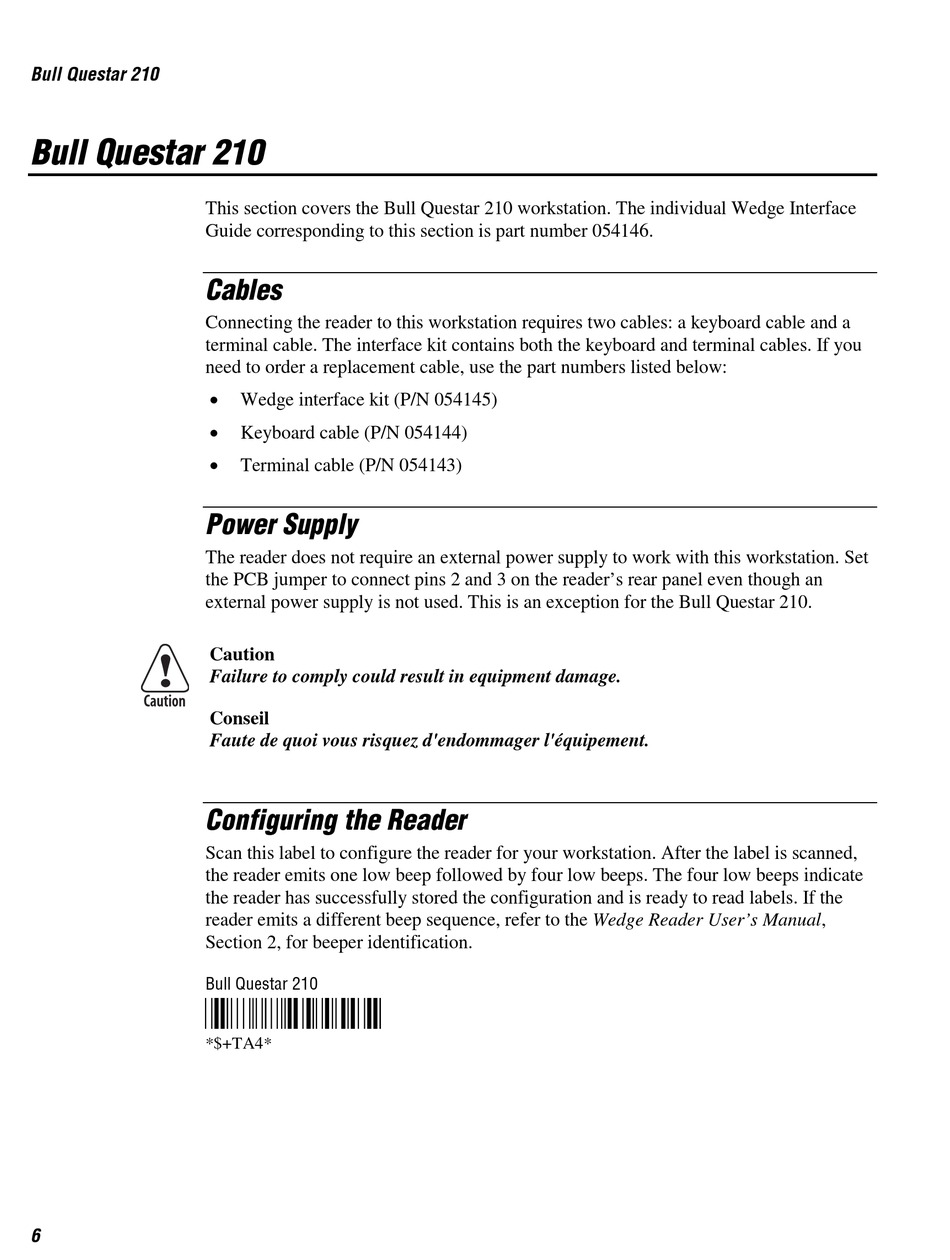

This section covers the Bull Questar 210 workstation. The individual Wedge Interface
Guide corresponding to this section is part number 054146.
Cables
Connecting the reader to this workstation requires two cables: a keyboard cable and a
terminal cable. The interface kit contains both the keyboard and terminal cables. If you
need to order a replacement cable, use the part numbers listed below:
Power Supply
The reader does not require an external power supply to work with this workstation. Set
the PCB jumper to connect pins 2 and 3 on the reader's rear panel even though an
external power supply is not used. This is an exception for the Bull Questar 210.
Configuring the Reader
Scan this label to configure the reader for your workstation. After the label is scanned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User's Manual,
Section 2, for beeper identification.
Bull Questar 210
*$+TA4*
*$+TA4*
6
•
Wedge interface kit (P/N 054145)
•
Keyboard cable (P/N 054144)
•
Terminal cable (P/N 054143)
Caution
Failure to comply could result in equipment damage.
Conseil
Faute de quoi vous risquez d'endommager l'équipement.
