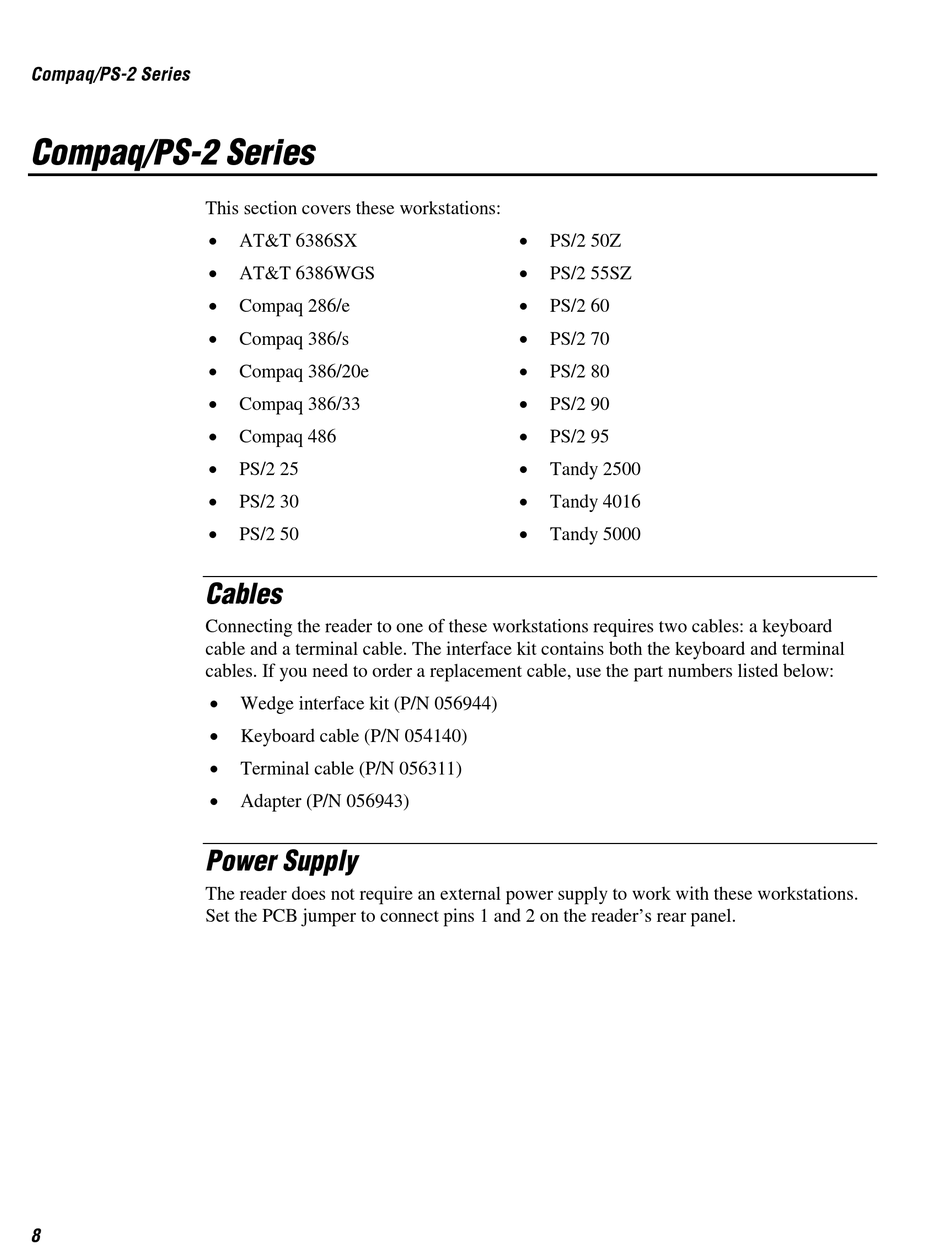

Compaq/PS-2 Series

Compaq/PS-2 Series

This section covers these workstations:
•
•
•
•
•
•
•
•
•
•
Cables
Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use the part numbers listed below:
Power Supply
The reader does not require an external power supply to work with these workstations.
Set the PCB jumper to connect pins 1 and 2 on the reader's rear panel.
8
AT&T 6386SX
AT&T 6386WGS

Compaq 286/e

Compaq 386/s

Compaq 386/20e

Compaq 386/33

Compaq 486

PS/2 25
PS/2 30
PS/2 50
•
Wedge interface kit (P/N 056944)
•
Keyboard cable (P/N 054140)
•
Terminal cable (P/N 056311)
•
Adapter (P/N 056943)
•

PS/2 50Z

•

PS/2 55SZ

•
PS/2 60
•
PS/2 70
•
PS/2 80
•
PS/2 90
•
PS/2 95
•
Tandy 2500
•
Tandy 4016
•
Tandy 5000
