Pc/At, Ps/2 Universal; 6386Wgs; Alfaskop Ds/Dt; Compaq Prolinea - Intermec MicroBar 9710 Reference Manual

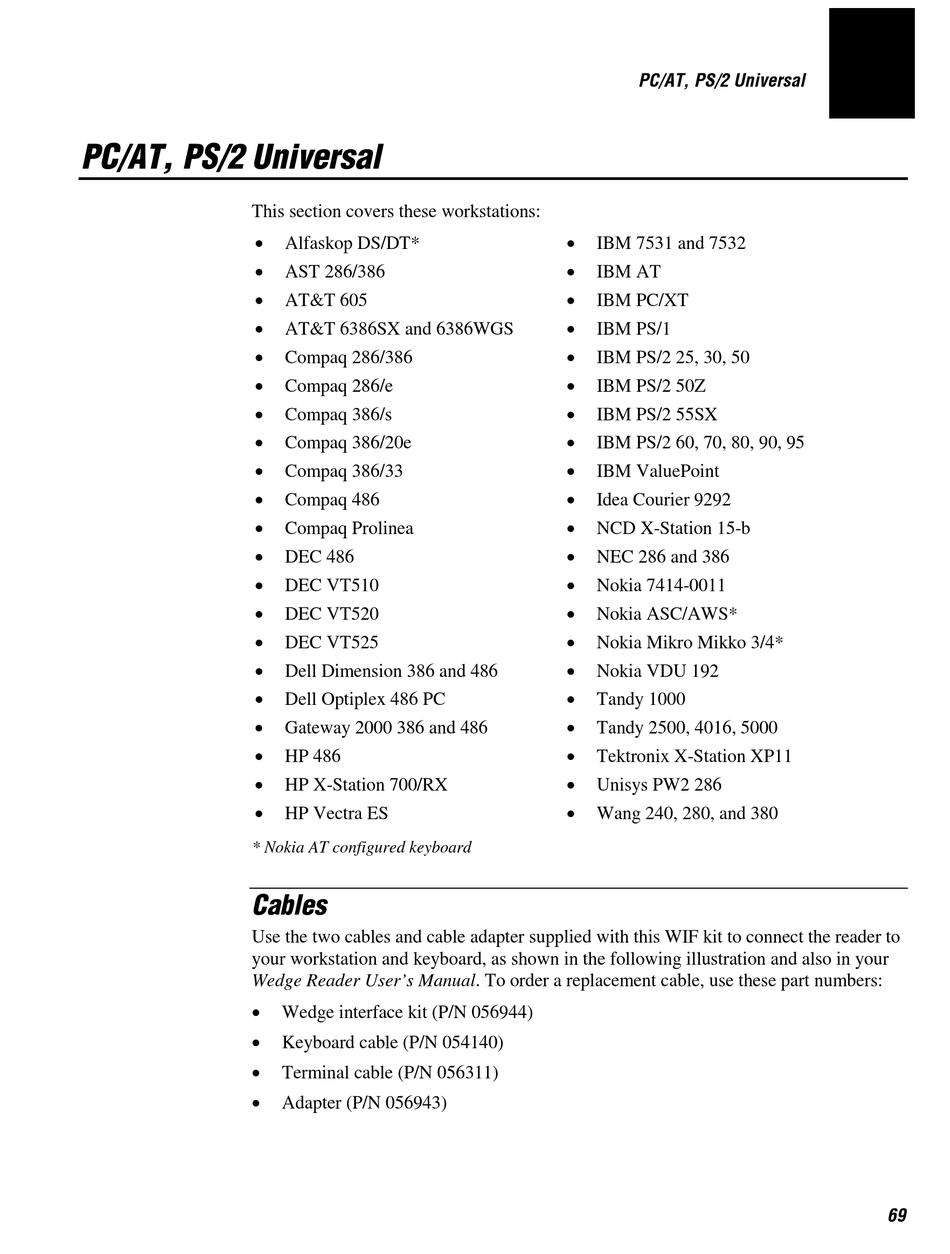

PC/AT, PS/2 Universal

This section covers these workstations:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
* Nokia AT configured keyboard
Cables
Use the two cables and cable adapter supplied with this WIF kit to connect the reader to
your workstation and keyboard, as shown in the following illustration and also in your
Wedge Reader User's Manual. To order a replacement cable, use these part numbers:
•
•
•
•

Alfaskop DS/DT*

AST 286/386
AT&T 605
AT&T 6386SX and 6386WGS
Compaq 286/386

Compaq 286/e

Compaq 386/s
Compaq 386/20e
Compaq 386/33
Compaq 486

Compaq Prolinea

DEC 486

DEC VT510

DEC VT520

DEC VT525

Dell Dimension 386 and 486

Dell Optiplex 486 PC

Gateway 2000 386 and 486
HP 486

HP X-Station 700/RX

HP Vectra ES

Wedge interface kit (P/N 056944)
Keyboard cable (P/N 054140)
Terminal cable (P/N 056311)
Adapter (P/N 056943)
C d 39
PC/AT, PS/2 Universal
•
IBM 7531 and 7532
•
IBM AT
•
IBM PC/XT
•

IBM PS/1

•
IBM PS/2 25, 30, 50
•

IBM PS/2 50Z

•

IBM PS/2 55SX

•
IBM PS/2 60, 70, 80, 90, 95
•

IBM ValuePoint

•
Idea Courier 9292
•

NCD X-Station 15-b

•
NEC 286 and 386
•
Nokia 7414-0011
•
Nokia ASC/AWS*
•
Nokia Mikro Mikko 3/4*
•
Nokia VDU 192
•

Tandy 1000

•
Tandy 2500, 4016, 5000
•

Tektronix X-Station XP11

•
Unisys PW2 286
•
Wang 240, 280, and 380
69
