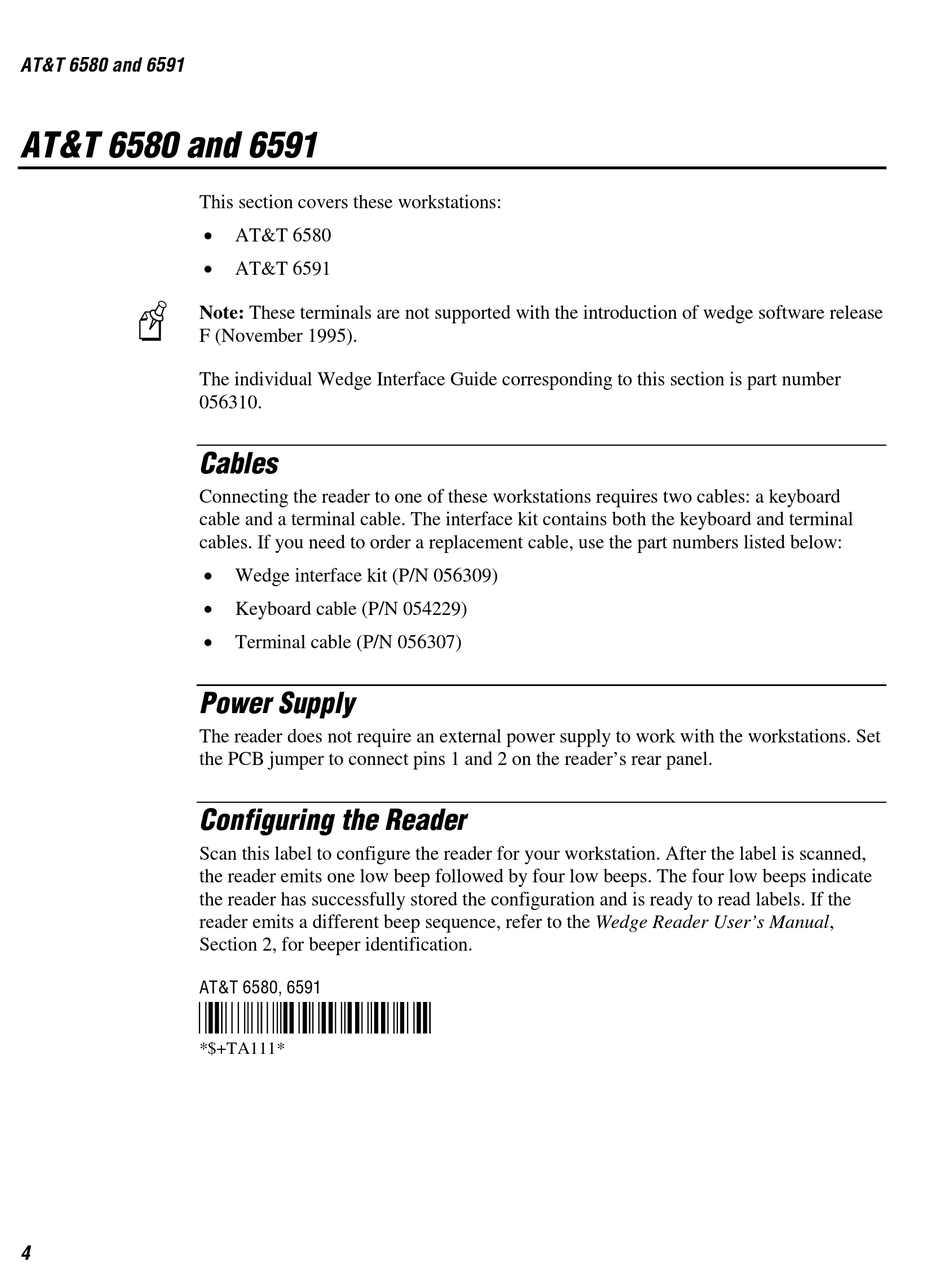

This section covers these workstations:
•
AT&T 6580
•
AT&T 6591
Note: These terminals are not supported with the introduction of wedge software release
F (November 1995).
The individual Wedge Interface Guide corresponding to this section is part number
056310.
Cables
Connecting the reader to one of these workstations requires two cables: a keyboard
cable and a terminal cable. The interface kit contains both the keyboard and terminal
cables. If you need to order a replacement cable, use the part numbers listed below:
•
Wedge interface kit (P/N 056309)
•
Keyboard cable (P/N 054229)
•
Terminal cable (P/N 056307)
Power Supply
The reader does not require an external power supply to work with the workstations. Set
the PCB jumper to connect pins 1 and 2 on the reader's rear panel.
Configuring the Reader
Scan this label to configure the reader for your workstation. After the label is scanned,
the reader emits one low beep followed by four low beeps. The four low beeps indicate
the reader has successfully stored the configuration and is ready to read labels. If the
reader emits a different beep sequence, refer to the Wedge Reader User's Manual,
Section 2, for beeper identification.
AT&T 6580, 6591
*$+TA111*
*$+TA111*
