Fonts and Graphics

There are nine resident bitmap scaleable fonts (including OCR A and B).
You can use font ID 3 through 6 and 8 through 19 to download user-
defined fonts.
Maximum UDF or UDC

Media

F
E
G
H

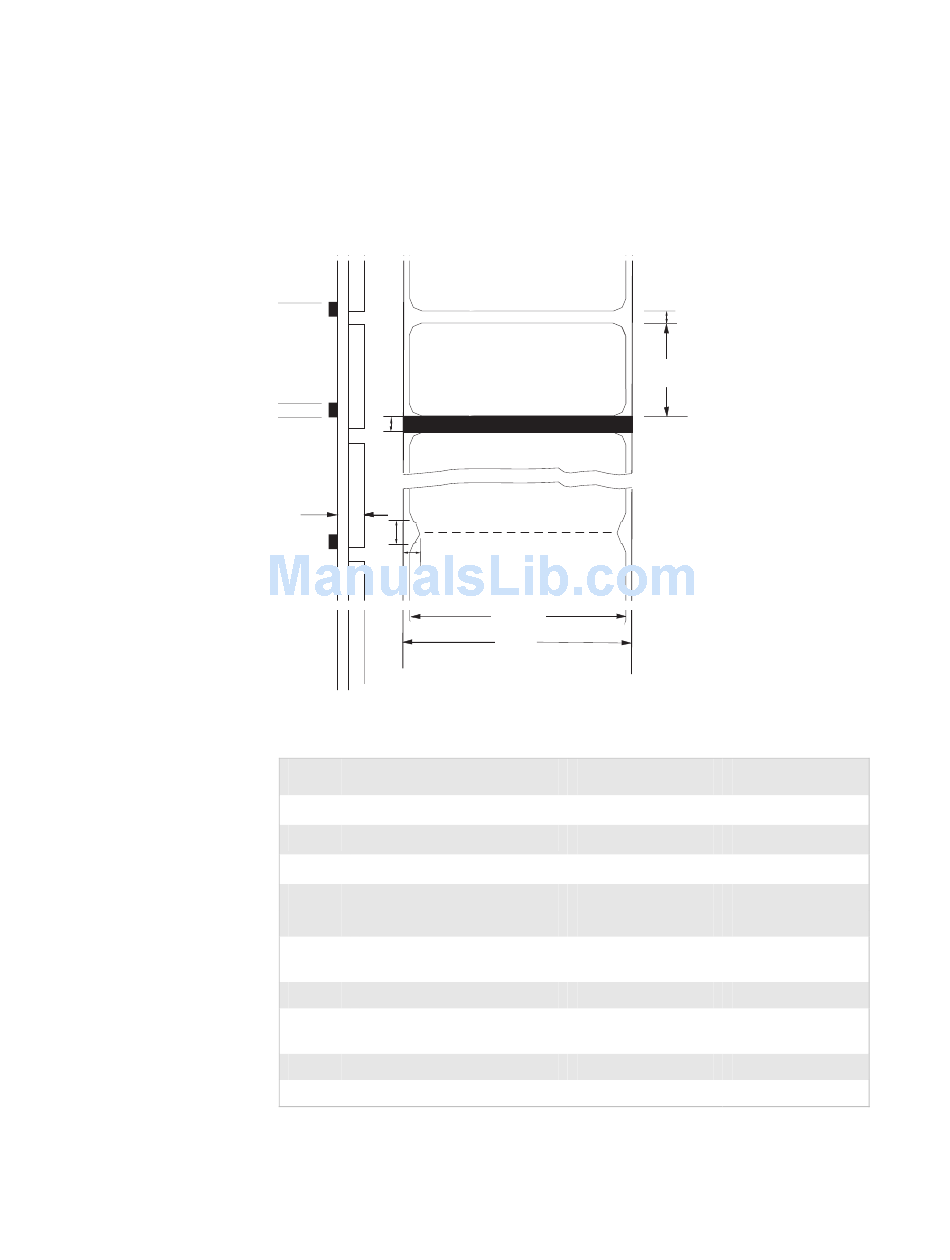

Minimum and Maximum Media Dimensions
Letter Description
A Label width
B Backing width (or tag width)
C Gap between labels
D Label length - self-strip media
Label length - butt cut media
E Media thickness
(including backing)
F Reflective sensor mark length
G Notch length
H Notch height (depth)
Roll diameter
76.2 mm (4 in) square
A
B
3XXXU055.eps
Minimum
76.2 mm (3.0 in)
78.7 mm (3.1)
25.4 mm (1.0 in)
25.4 mm (1.0 in)
12.7 mm (0.5 in)
0.076 mm
(0.003 in)
25.4 mm (1.0 in)
25.4 mm (1.0 in)
6.4 mm (0.25 in)
N/A
Appendix A— Specifications
C
D
Maximum
167.6 mm (6.6 in)
170.2 mm (6.7 in)
25.4 mm (1.0 in)
610 mm (24 in)
610 mm (24 in)
0.30 mm
(0.012 in)
12.7 mm (0.5 in)
3.18 mm
(0.125 in)
12.7 mm (0.5 in)
213 mm (8.38 in)
