Media

F
E
G
H

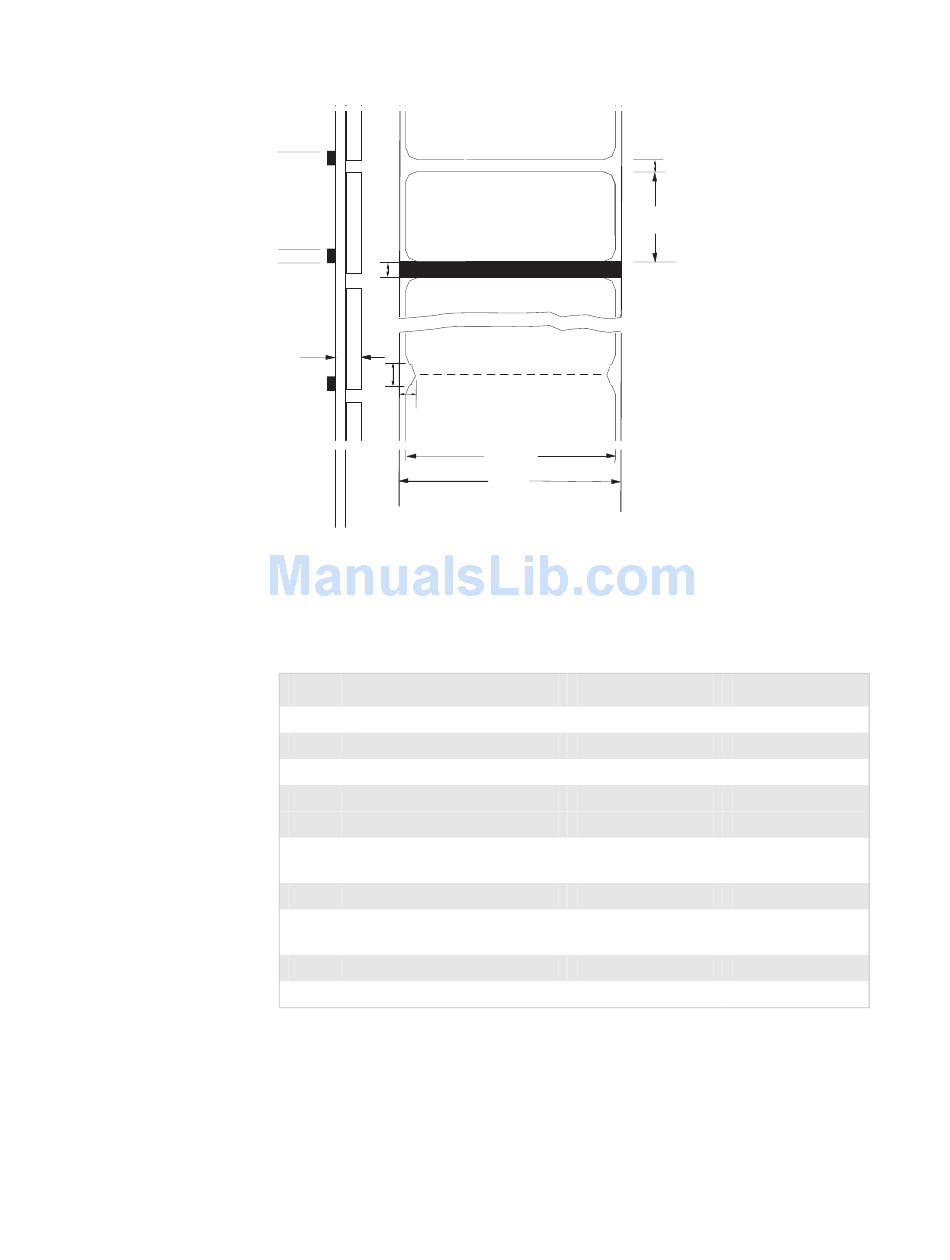

Media dimensions: This illustration shows how to measure the media dimensions. See
the next table, Minimum and Maximum Media Dimensions, for specific media
dimensions.
Minimum and Maximum Media Dimensions
Letter Description
A Label width
B Backing width (or tag width)
C Gap between labels
D Label length - self-strip media
Label length - butt cut media
E Media thickness
(including backing)
F Reflective sensor mark length
G Notch length
H Notch height (depth)
Roll diameter
Appendix A— Specifications
C
D
A
B
3XXXU055.eps
Minimum
16.5 mm (0.65 in)
19.1 mm (0.75 in)
2.54 mm (0.1 in)
25.4 mm (1.0 in)
12.7 mm (0.5 in)
0.076 mm
(0.003 in)
2.54 mm (0.1 in)
2.54 mm (0.1 in)
6.4 mm (0.25 in)
N/A
Maximum
111.8 mm (4.4 in)
114.3 mm (4.5 in)
25.4 mm (1 in)
610 mm (24 in)
610 mm (24 in)
0.25 mm
(0.012 in)
12.7 mm (0.5 in)
3.18 mm
(0.125 in)
12.7 mm (0.5 in)
213 mm (8.38 in)
