Setting Configuration Commands in Test and Service Mode

Setting the Number of Dot Increments

3400, 3440, and 3600 Bar Code Label Printer User's Manual
Test and Service mode also provides you with an alternative to using
PrintSet or sending configuration commands down from the host. You can
change these configuration commands by setting the Test and Service
mode DIP switches:
• Label rest point
• 86XX emulation
• X forms adjust
• Y forms adjust

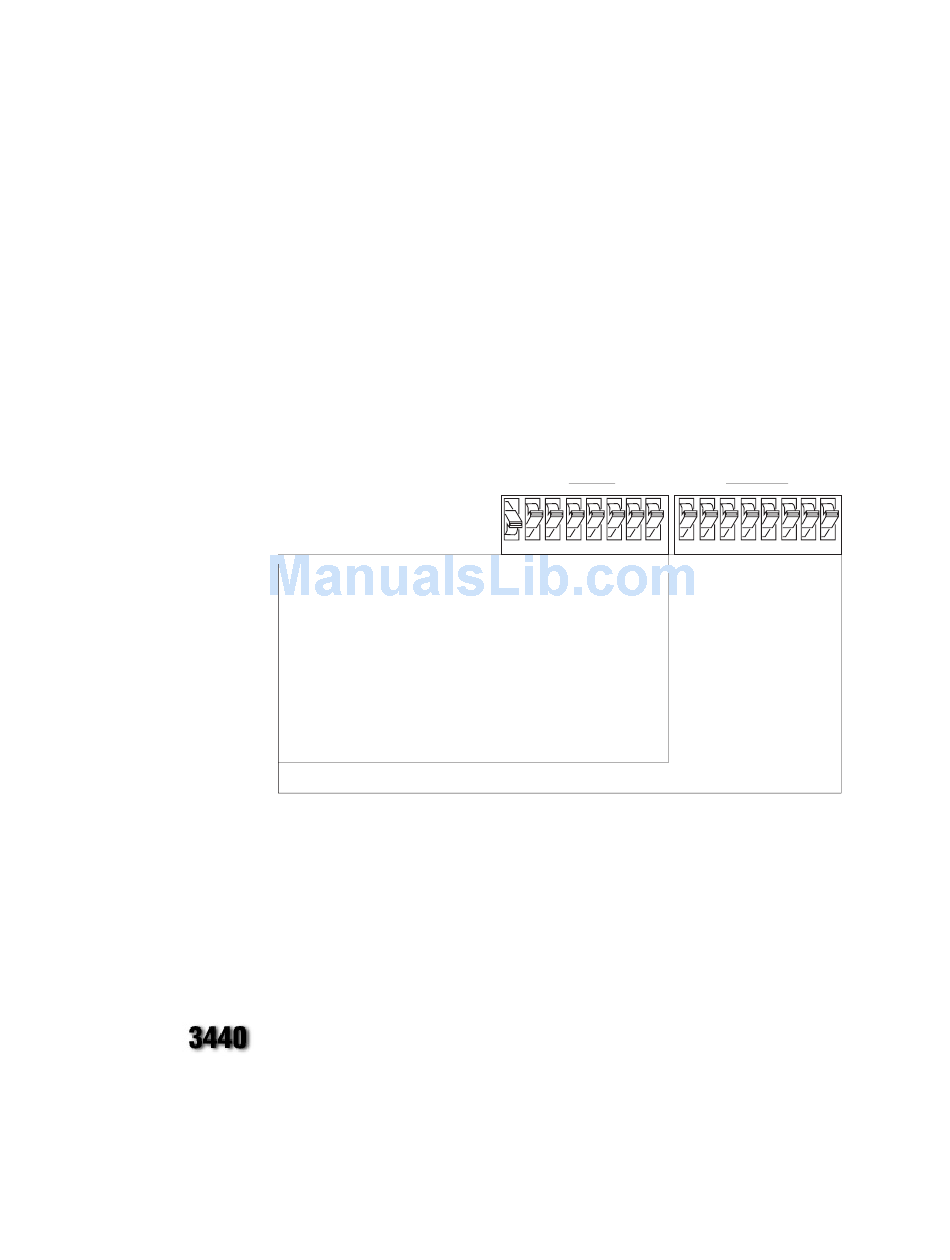

The following table provides you with the Test and Service mode DIP
switch settings for changing the configuration commands.
Configuration DIP Switch Settings
O = OFF
1 = ON
Label Rest Point
Adjust Forward
Adjust Backward
86XX Emulation
Advance Mode
10 Mil
15 Mil
X Forms Adjust
Adjust Forward
Adjust Backward
Y Forms Adjust
N: Number. Least significant bit first.
You can move the label rest point and X forms adjust configuration
commands forward or backward by setting the printer DIP switches. Use
the top bank of DIP switches to determine whether the movement is
forward or backward. Use the bottom bank of DIP switches to set the
number of dot increments for label rest point, X forms adjust, and Y forms
adjust. The printer moves in 5 mil increments or 0.005 inch per dot.
If the printer (3440 only) is in 2.5 mil Advanced mode it moves 0.0025
inch per dot.
Chapter 6— Using Test and Service Mode
Top Bank
OFF
ON
1 2 3 4 5 6 7
O 1 1
O
1
1 O 1
O O
1 O
1 1
1
1 1 1
O
1
1 1 1 O
Bottom Bank
8 1 2 3 4 5 6 7 8
N N N N N
N N N N N
N N N N N
N N N N N
N N N N N
3XXXU.046
