3400, 3440, and 3600 Bar Code Label Printer User's Manual
39
Helvetica Condensed Helvetica

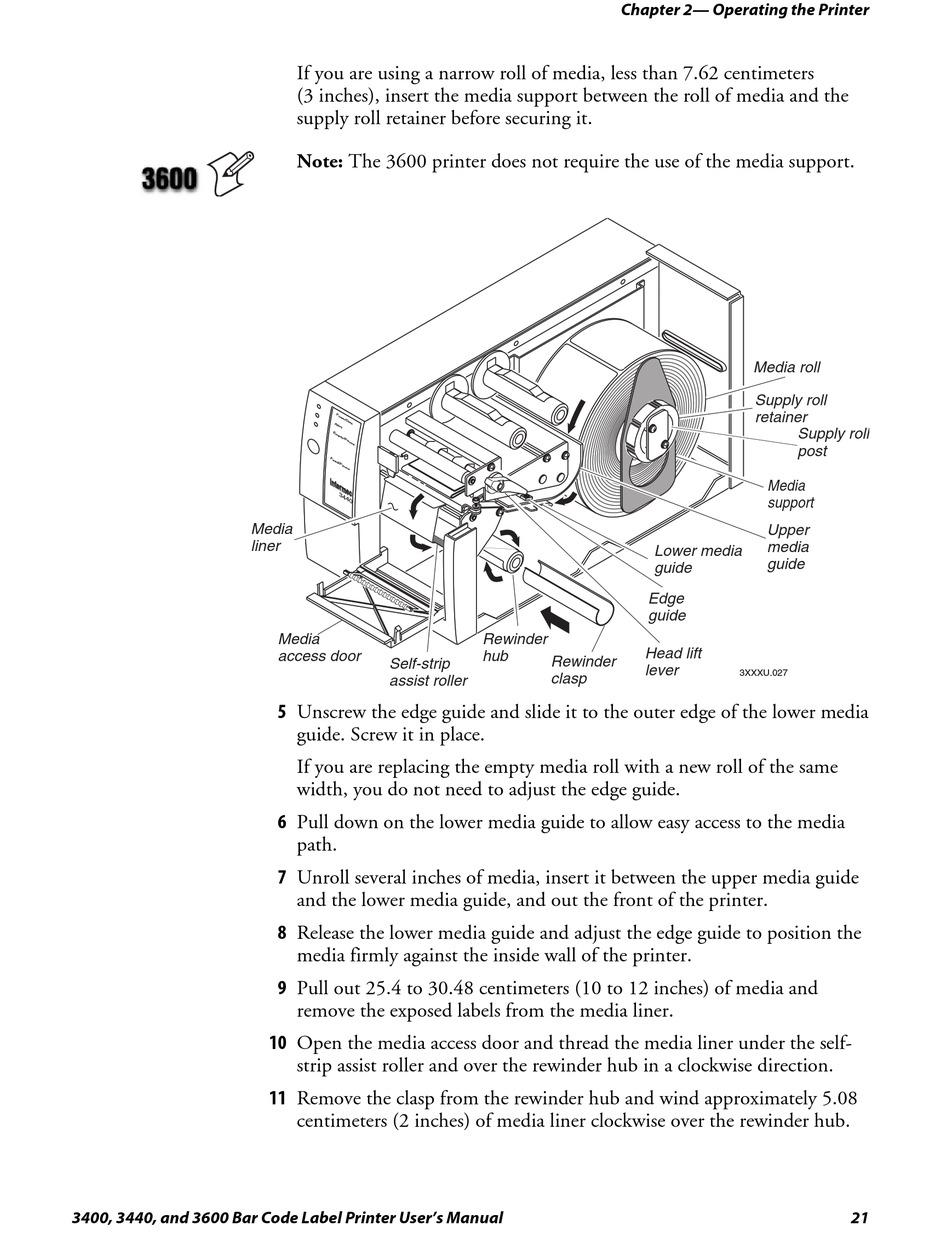

If you are using a narrow roll of media, less than 7.62 centimeters
(3 inches), insert the media support between the roll of media and the
supply roll retainer before securing it.
Note: The 3600 printer does not require the use of the media support.
P o
w e
r / D
a t a
A le
r t
E m
p t
y /
P a
u s
e
F e
e d
/ P
a u
s e
I n t e I n t e
r m e r m e
c c
3 4
4 0
Media
liner
Media
access door
Self-strip
assist roller
5 Unscrew the edge guide and slide it to the outer edge of the lower media
guide. Screw it in place.
If you are replacing the empty media roll with a new roll of the same
width, you do not need to adjust the edge guide.
6 Pull down on the lower media guide to allow easy access to the media
path.
7 Unroll several inches of media, insert it between the upper media guide
and the lower media guide, and out the front of the printer.
8 Release the lower media guide and adjust the edge guide to position the
media firmly against the inside wall of the printer.
9 Pull out 25.4 to 30.48 centimeters (10 to 12 inches) of media and
remove the exposed labels from the media liner.
10 Open the media access door and thread the media liner under the self-
strip assist roller and over the rewinder hub in a clockwise direction.
11 Remove the clasp from the rewinder hub and wind approximately 5.08
centimeters (2 inches) of media liner clockwise over the rewinder hub.
Chapter 2— Operating the Printer
Lower media
guide
Edge
guide
Rewinder
Head lift
hub
Rewinder
lever
clasp
Media roll
Supply roll
retainer
Supply roll
post
Media
support
Upper
media
guide
3XXXU.027
21
