<STX>H17;o212,375;c25;d3,Diameter Armored and Nonmetallic
Sheath Cables;k12<ETX>
<STX>H18;o170,450;c25;d3,- For Smooth or Interlocking
Sheath Metal Clad;k12<ETX>
<STX>H19;o212,505;c25;d3,Cables .375" - .675" Dia. (UL
only);k12<ETX>
<STX>L20;o25,580;l1130;w8<ETX>
<STX>U21;o40,610;c2;h9;w9<ETX>
<STX>H22;o210,600;c25;d3,ACE CORP.;k24<ETX>
<STX>H23;o210,670;c25;d3,ADDRESS 3010;k12<ETX>
<STX>H24;o210,710;c25;d3,FICTION USA;k12<ETX>
<STX>B25;o685,615;c0,0;d0,20;i1;h100;p@<ETX>
<STX>I25;h2;w2<ETX>
<STX>L26;o590,580;f3;l185;w8<ETX>
<STX>W27;o015,000;w10;l1150;h775<ETX>
<STX>R<ETX>
<STX><ESC>E5<CAN><ETX>
<STX>Lot 23455 262948<CR><FS>307 91747<FS><ESC>I2<ETX>
<STX><RS>5<ETB><ETX>

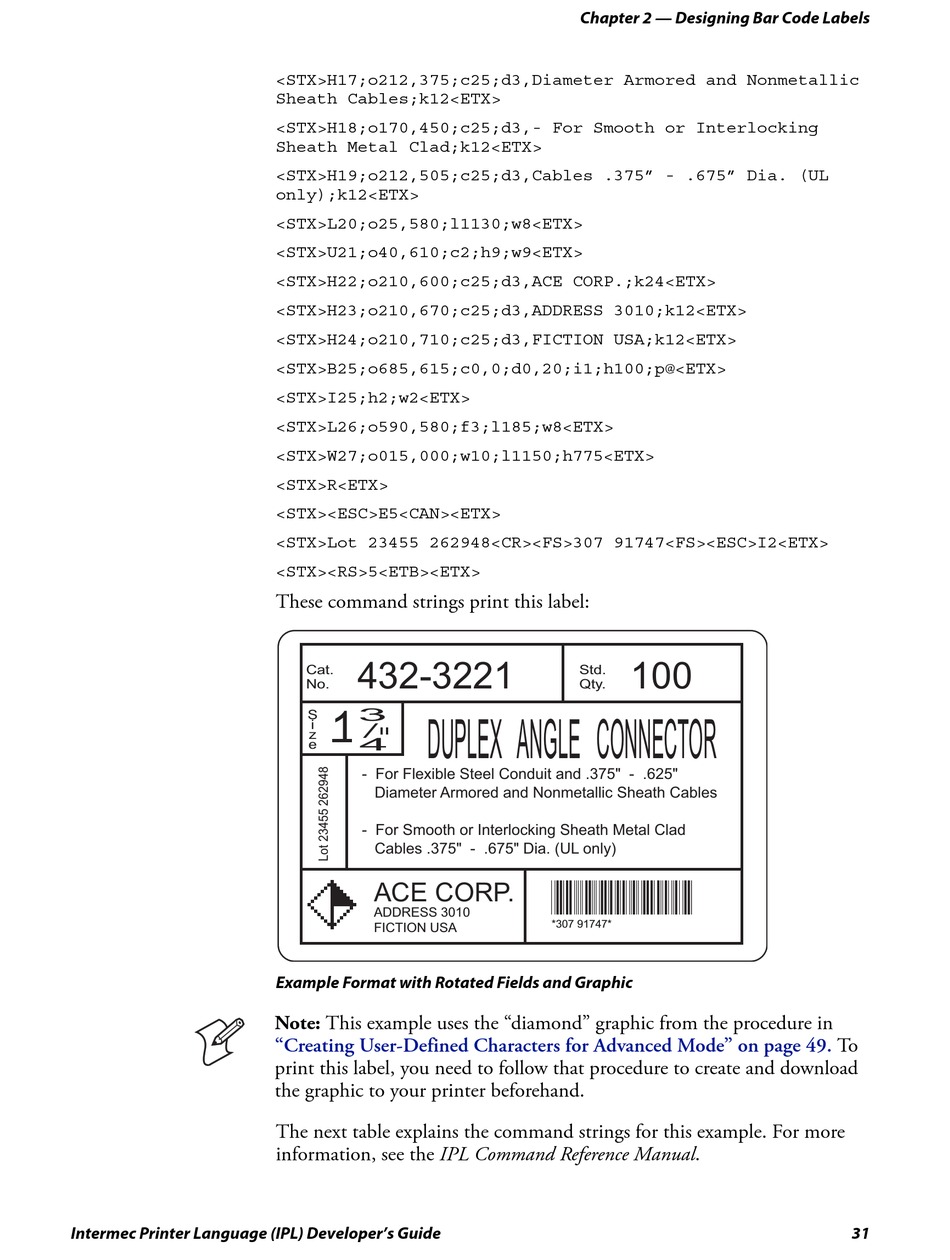

These command strings print this label:
432-3221
Cat.
No.
3
S
1
i DUPLEX ANGLE CONNECTOR
z
4
e
- For Flexible Steel Conduit and .375" - .625"
Diameter Armored and Nonmetallic Sheath Cables
- For Smooth or Interlocking Sheath Metal Clad
Cables .375" - .675" Dia. (UL only)
ACE CORP.
ADDRESS 3010
FICTION USA
Example Format with Rotated Fields and Graphic
Note: This example uses the "diamond" graphic from the procedure in
"Creating User-Defined Characters for Advanced Mode" on page 49.
print this label, you need to follow that procedure to create and download
the graphic to your printer beforehand.
The next table explains the command strings for this example. For more
information, see the IPL Command Reference Manual.
Chapter 2 — Designing Bar Code Labels
100
Std.
Qty.
*30791751*
*307 91747*
To
