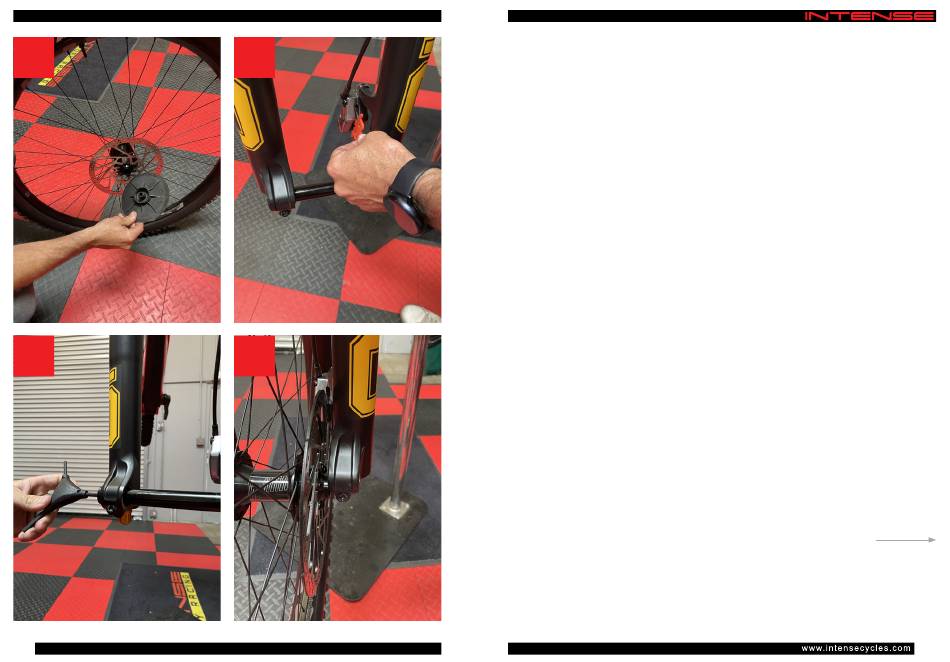

S T E P 5
INSTALL
FRONT WHEEL
Just like the rear wheel, remove all packaging from
the front wheel
(A)
making sure the hub end caps are
still in the correct place and that they haven't been
pulled off by accident. If they do come off, just press
them back into position. Then remove the brake
pad spacer
(B)
(usually orange, yellow or red). At
this stage be careful not to pull the front brake lever
until the wheel has been installed. Do not touch the
brake rotors with your hands or gloves as this may
contaminate them.
EXPERT BUILD (DVO)
With a 4mm Allen key loosen the pinch bolts on the
front lower legs. Then with a 6mm Allen key in a
counterclockwise direction remove the front axle from
the non-drive side of the bike.
PRO BUILD (ÖHLINS)
With a 5mm Allen key loosen the pinch bolts on the
front lower legs. Then with the same 5mm Allen key in
a counterclockwise direction remove the front axle
from the drive-side of the bike.
Position the wheel so that the rotor fits into the brake
caliper body and that the hub body slots into the
grooves on the fork (D). Once everything is aligned
reinstall front axle.
(C)
21
