L. PREOPERATIONAL INSTRUCTIONS
PHASE 7 DRYERS
1. The light emitting diode (L.E.D.) display reads "READY" (no cycle in progress).
2. Press the letter on the keypad corresponding to the cycle desired (i.e., key "D").
NOTE: "0-40" WILL REQUIRE THE "START/ENTER" KEY TO BE PRESSED AFTER THE
NUMBER IS SELECTED IN ORDER TO ACCEPT THE SELECTION AND START
DRYING.
3. The dryer will then start (i.e., blower, tumbler, and heat).
4. The L.E.D. display will read MANUAL DRYING CYCLE D, 00:00 MIN REMAIN.
NOTE: Press and hold the "UP ARROW" to view the tumbler temperature at any time.
NOTE: The dryer can be stopped at any time by pressing the "STOP/CLEAR" key, at this time the
dryer will go into a cycle pause. If the "STOP/CLEAR" key is pressed again at this point, the
cycle that was in progress will be cancelled and returned to the "READY" state.
NOTE: Press and hold the "DOWN ARROW" to view the tumbler RPM.
5. When the programmed drying time has expired, the Phase 7 microprocessor controller (computer) will
proceed into the Cool Down Cycle.
6. Once the Cool Down Cycle begins at the end of the heat cycle, the L.E.D. display will read COOL DOWN
TEMP ___/___ MINUTES REMAINING. At the end of the heat cycle, the dryer will shut off the heat and
continue the fan and tumbler until the Cool Down Time or temperature is reached.
IMPORTANT: For more detailed information regarding the microprocessor controller (computer) on
your dryer, refer to the microprocessor user's manual included with the dryer.

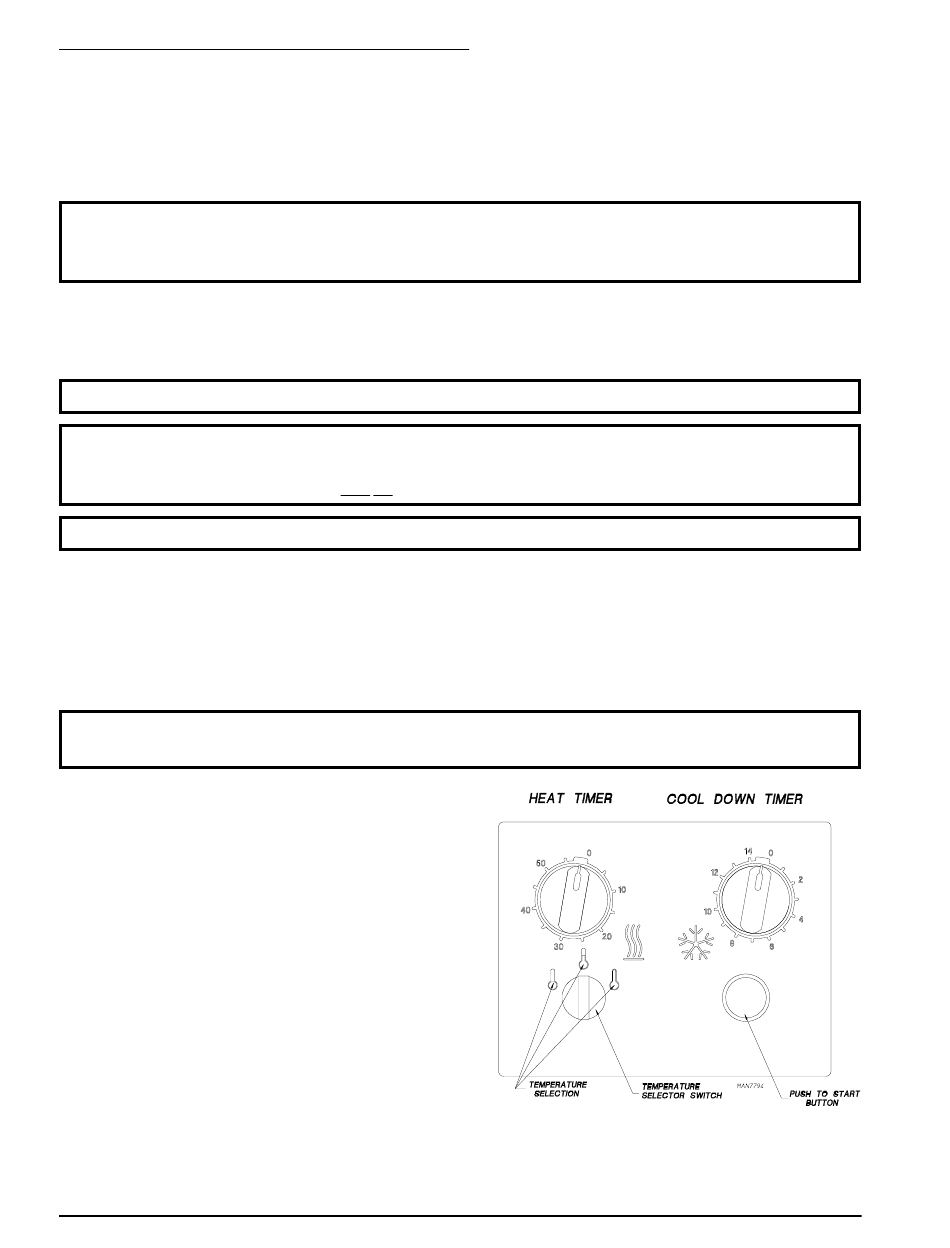

DUAL TIMER DRYERS
1. Turn drying timer knob for a time of 20 minutes.
2. Select "High Temp."
3. Push "Push to Start" button.
4. To stop dryer, open the main door.
Spin and dwell (stop) times are adjustable at the
reversing timer.
PHASE 5 DRYERS
1. L.E.D. display will read "FILL."
2. Press the "E" (preprogrammed) cycle key on the keypad.
