4. Exhaust Transition Piece
An exhaust duct transition piece is shipped inside of the dryer's
tumbler and MUST be installed on the dryer's
exhaust duct, with the hardware provided, BEFORE
location venting is connected to the dryer.
THIS EXHAUST DUCT TRANSITION PIECE
Failure to observe this installation requirement may result in
damage to the dryer, create a FIRE HAZARD and will VOID
the manufacturer's warranty.
012999JEV-GS/cj

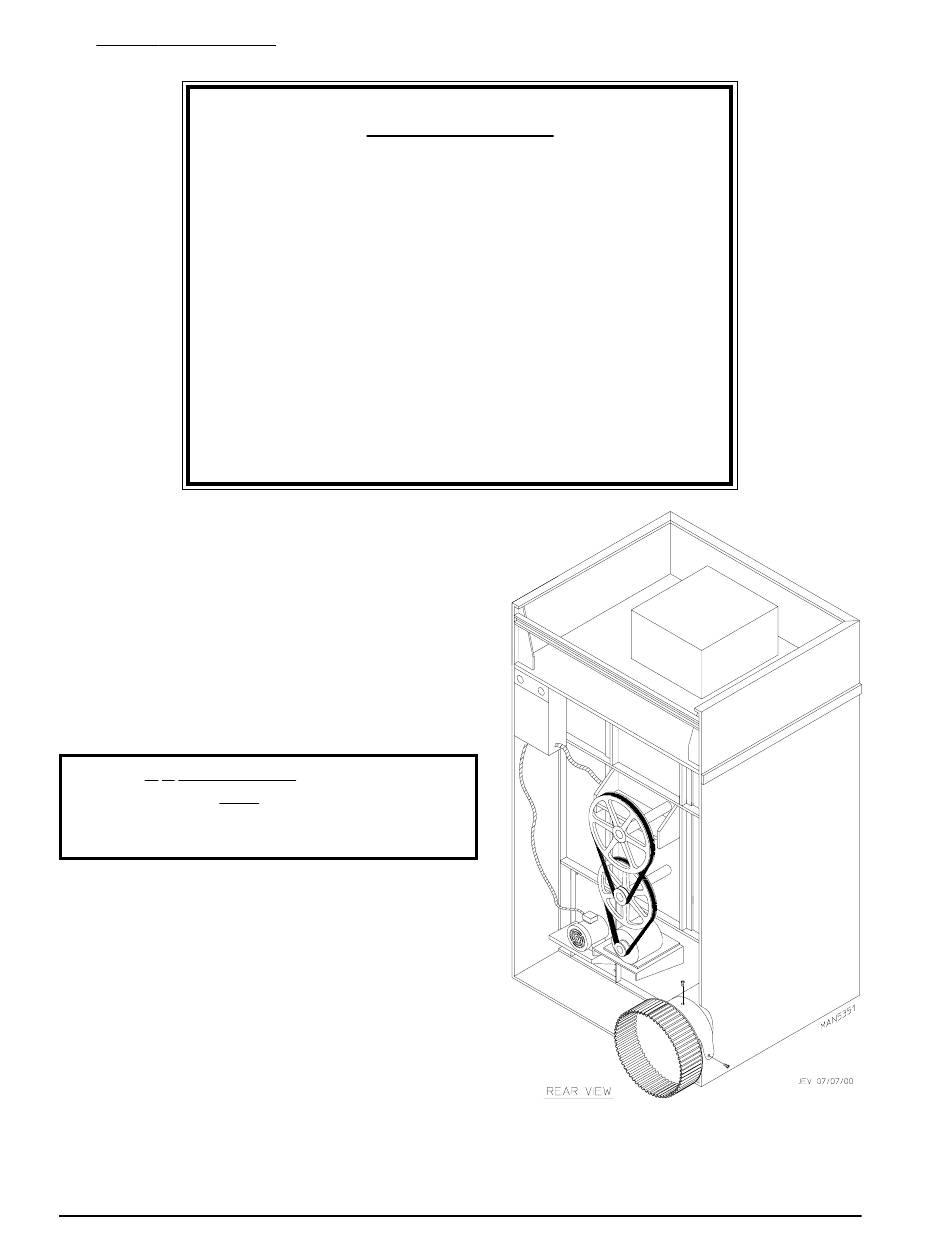

Inside the tumbler of this dryer is an exhaust
transition piece that must be installed on the outlet
of the exhaust before any further venting is
connected:
a. Remove the exhaust transition piece from the
tumbler and place it on the exhaust outlet.
b. Using the screws provided, secure the exhaust
transition piece to the dryer.
NOTE: It is recommended that this joint be taped
as well as ALL other duct joints to prevent
moisture and lint from escaping into the
building.
14
WARNING
MUST BE INSTALLED FIRST!
American Dryer Corp.
P/N: 114092
113202 - 27
