3. Light emitting diode (L.E.D.) display will quickly read: "Ld30," "Lc04," and "F180" (unless special programs
requested). These codes mean that the dryer is in the timed mode and will operate with heat of 180° F (82°
C) for 30 minutes drying time and have a 4 minute cool down period.
4. Dryer will now start and the L.E.D. display will read "Dr30" (dry mode for 30 minutes) and count down in
minutes.
NOTE: The dryer can be stopped at any time by opening main door or by pressing the "CLEAR/
STOP" key. To restart the dryer, press the "ENTER/START" key or preprogrammed cycle
key (i.e., "E").
NOTE: Pressing keypad key "A," "B," "C," "D," or "F" will also start the dryer. The six (6)
preprogrammed drying cycles ("A" through "F") have been stored in the microprocessor
controller's (computer's) memory. Refer to the computer programming manual supplied with
this dryer for these preprogrammed cycles.
REVERSING TIMER SPIN/DWELL ADJUSTMENTS
Timer models have an electronic reversing timer in the electrical service box, which is located in the upper left
rear area of the dryer.

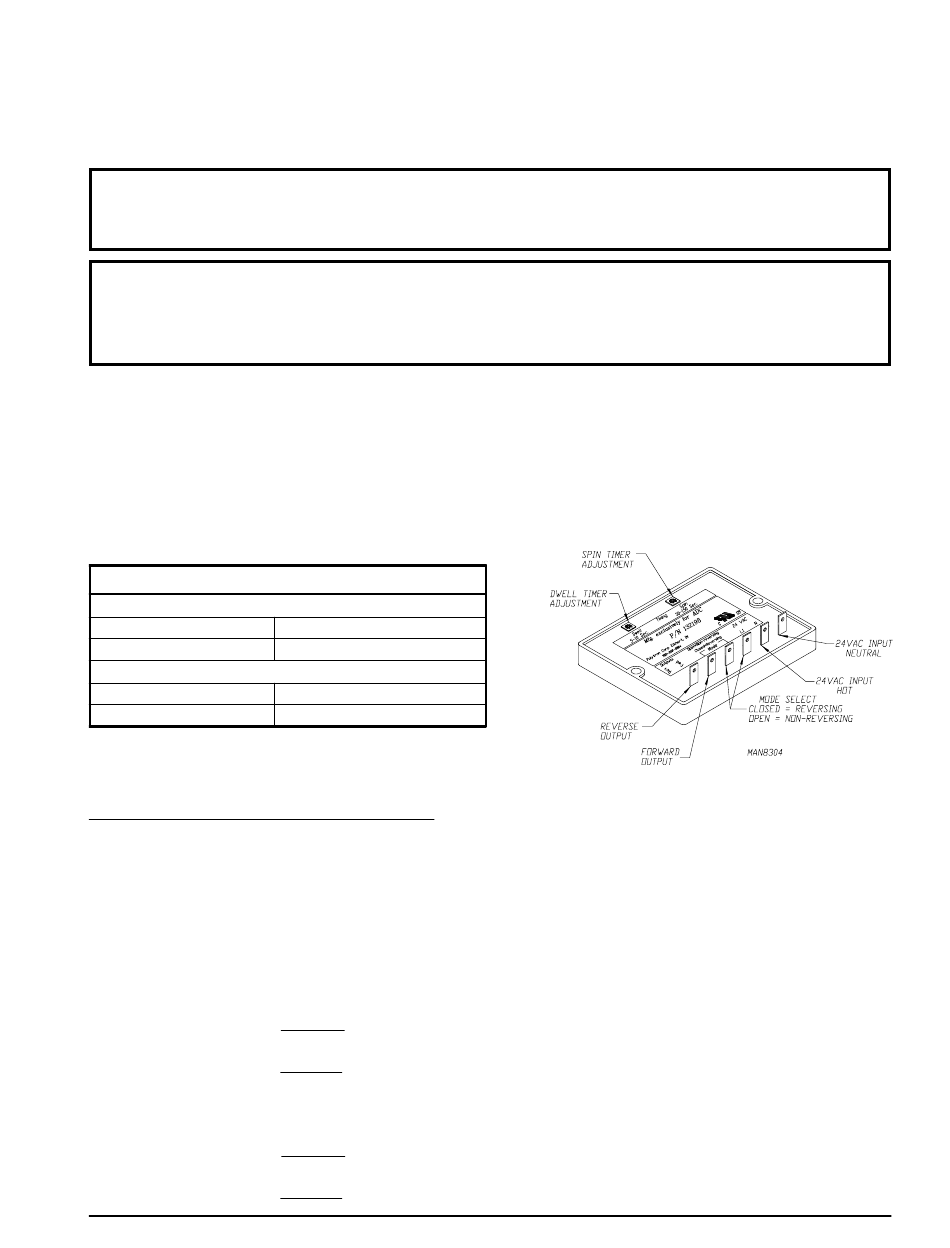

Both the Dwell (Stop) Time and the tumbler Spin Time are adjustable by mode selection switches located on the
electronic timer (as noted in the illustration below).
TIMING LEGEND
SPIN TIME
Adjustment Position Number
Time in Seconds*
DWELL (STOP) TIME
Adjustment Position Number
Time in Seconds*
* Values shown are +/- 1-second.
M. SHUTDOWN INSTRUCTIONS
If the dryer is to be shutdown (taken out of service) for a period of time, the following must be performed:
1. Discontinue power to the dryer either at the external disconnect switch or the circuit breaker.
2. Discontinue the heat supply:
a. GAS MODELS – discontinue the gas supply.
1) SHUT OFF external gas supply shutoff valve.
2) SHUT OFF internal gas supply shutoff valve located in the gas valve burner area.
b. STEAM MODELS – discontinue the steam supply.
1) SHUT OFF external (location furnished) shutoff valve.
2) SHUT OFF internal steam valves in the supply line and the return line.
113202 - 27
Counterclockwise - Clockwise
30 - 150
Counterclockwise - Clockwise
5 - 10
